Honeywell SPZ-8000 - Advisory Display; Advisory Display Format (Normal Mode)

SPZ--8000 Digital Integrated Flight Control System
A28--1146--055
REV 2
Automatic Flight Control System (AFCS)
6-6
ADVISORY DISPLAY

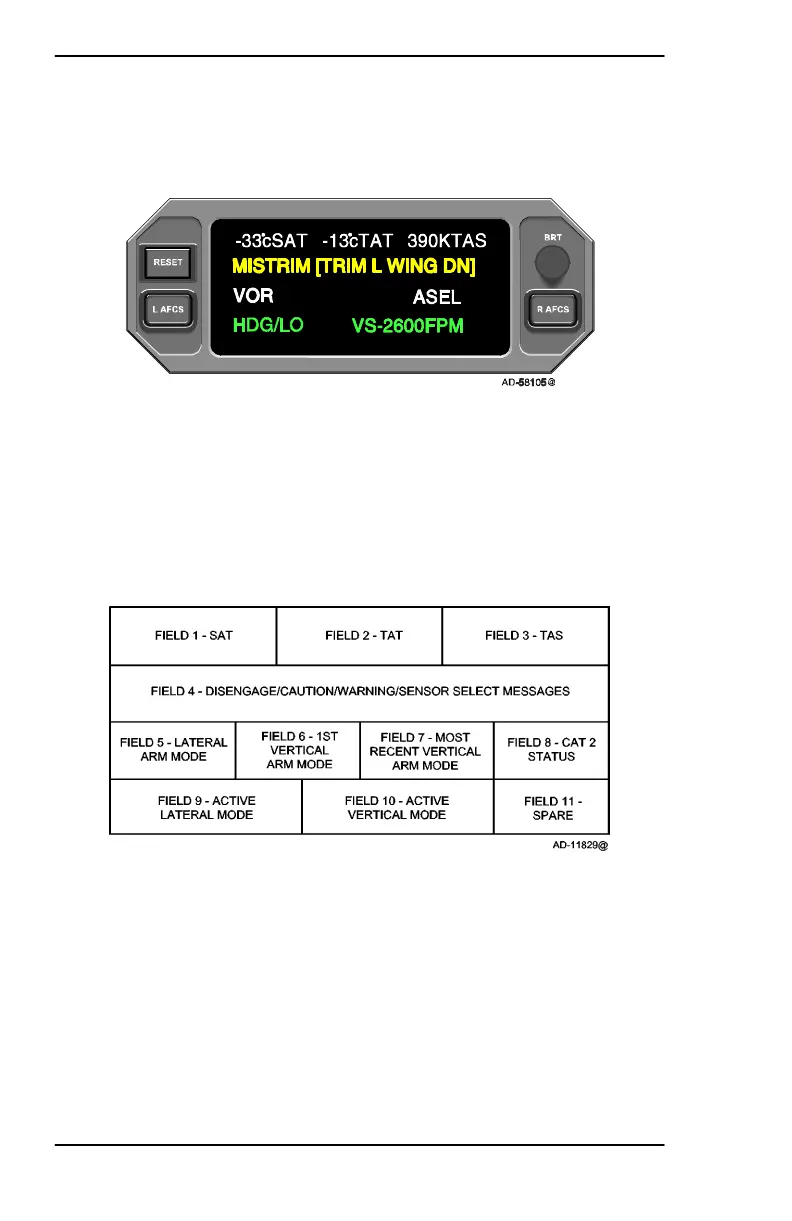

The advisory display, shown in Figure 6--4, is used to request data from
the crew and display system mode and status annunciators.
Advisory Display
Figure 6--4
The display format is shown in Figure 6--5. Messages are sent to the
advisory display from the master flight guidance computer. Normal
mode messages are separated into operational messages and
warning/caution messages.
Advisory Display Format (Normal Mode)
Figure 6--5
