SPZ--8000 Digital Integrated Flight Control System

A28--1146--055

REV 2

8-15

Modes of Operation

AD--58121@

AD--58122@

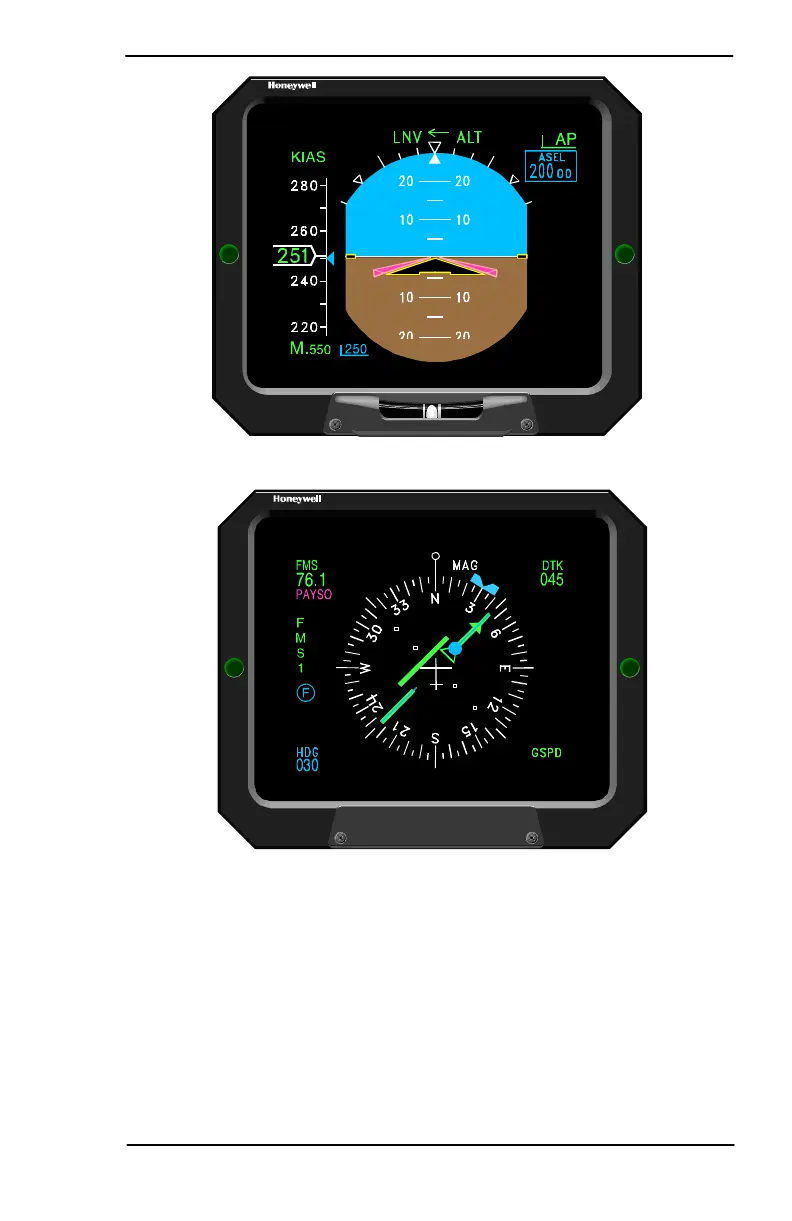

FMS Steering Cockpit Displays

Figure 8--11
