SPZ--8000 Digital Integrated Flight Control System
A28--1146--055
REV 2
4-49
Electronic Flight Instrument System (EFIS)
EHSI MAP MODE WITH VOR SELECTED FOR
DISPLAY
In the MAP mode, when VOR is selected for display, the normal ARC
course select display (pointer, scale, and deviation) is removed and
replaced by the display shown in Figure 4--35.
D The VOR or VOR/DME station is displayed at its geographical
position with the corresponding symbol. In Figure 4--35 SRP is the
VOR station.
D The course information is indicated by a digital readout (same as
ARC mode) and by a course line centered on the VOR station. The
TO information is represented by a solid line and the FROM
information is represented by a dashed line.

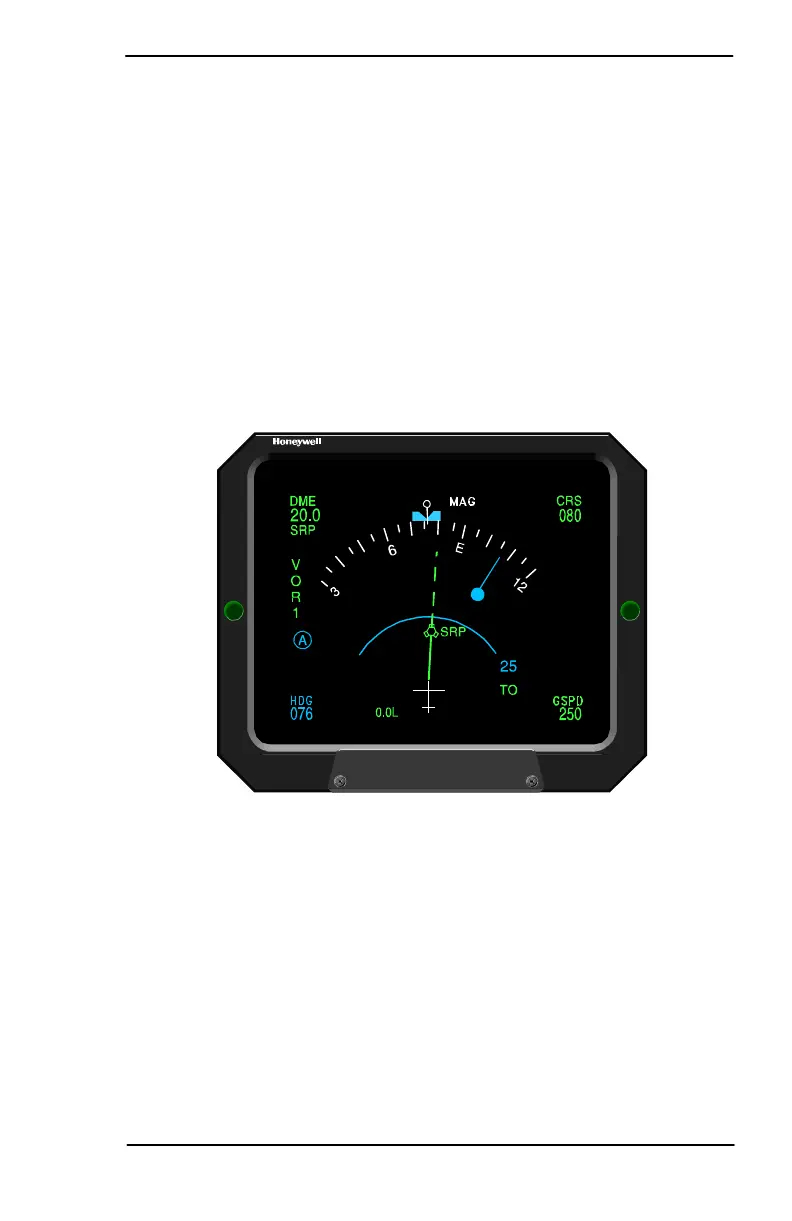

AD--58077@
SRP
VOR Within Map Range
Figure 4--35
