CHAPTER 7: OPTIONAL COMPONENTS
55 63-4528—04
Heat Sink Cooling Fan Frame E
Corresponding models:
HCRDA0750E1000T, HCRDA1000E1000T, HCRDA1250E1000T
Follow the procedure for both models of the fan

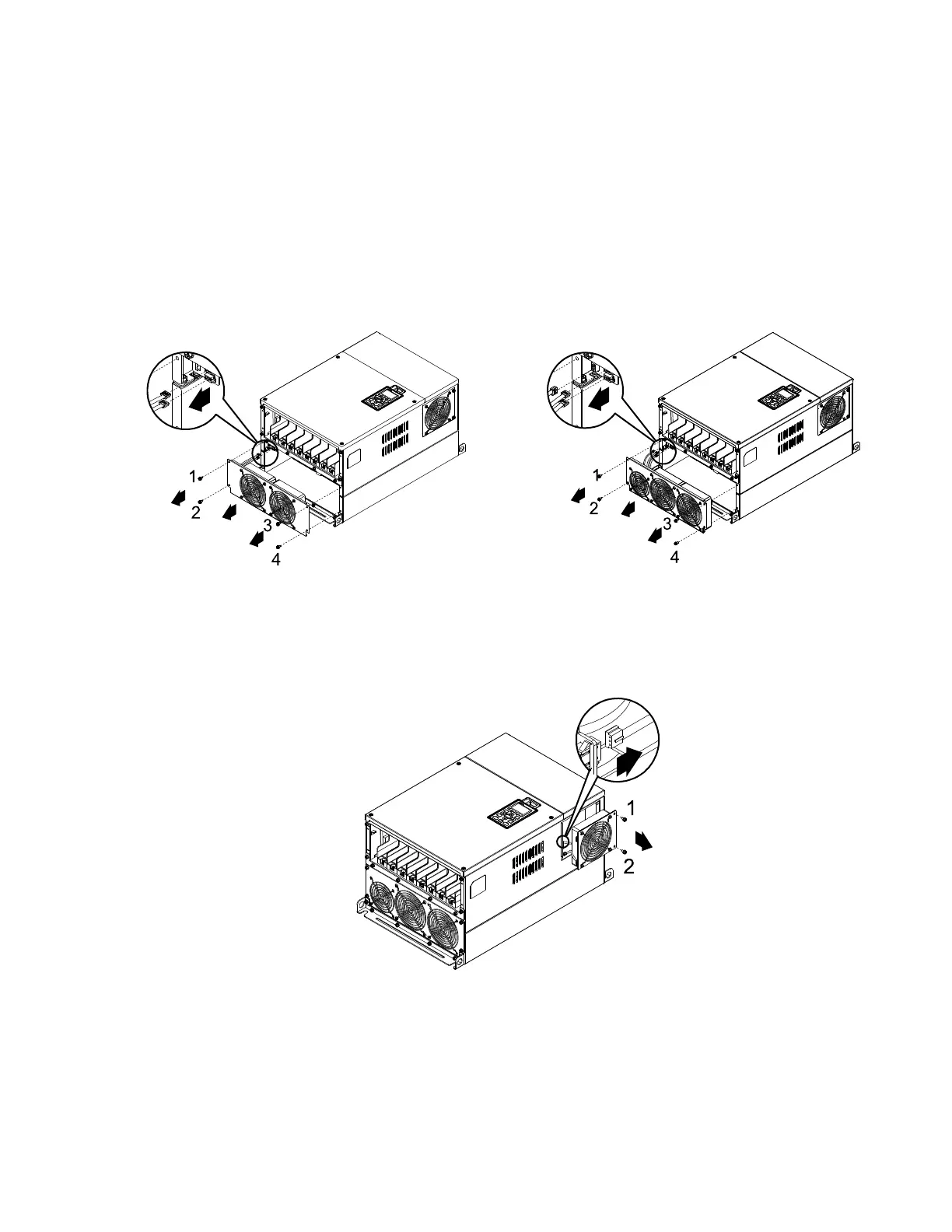

Loosen screw 1~4 (as shown in the figure below), and
disconnect the fan’s power, then remove the fan.
Screw torque: 24~26kg-cm (20.8~22.6in-lbf).
Loosen screw 1 and screw 2 (as shown in the figure below), and disconnect fan’s power before removing the fan.
Screw torque: 24~26kg-cm (20.8~22.6in-lbf).
M33361
M33362
