CONTROL PANEL

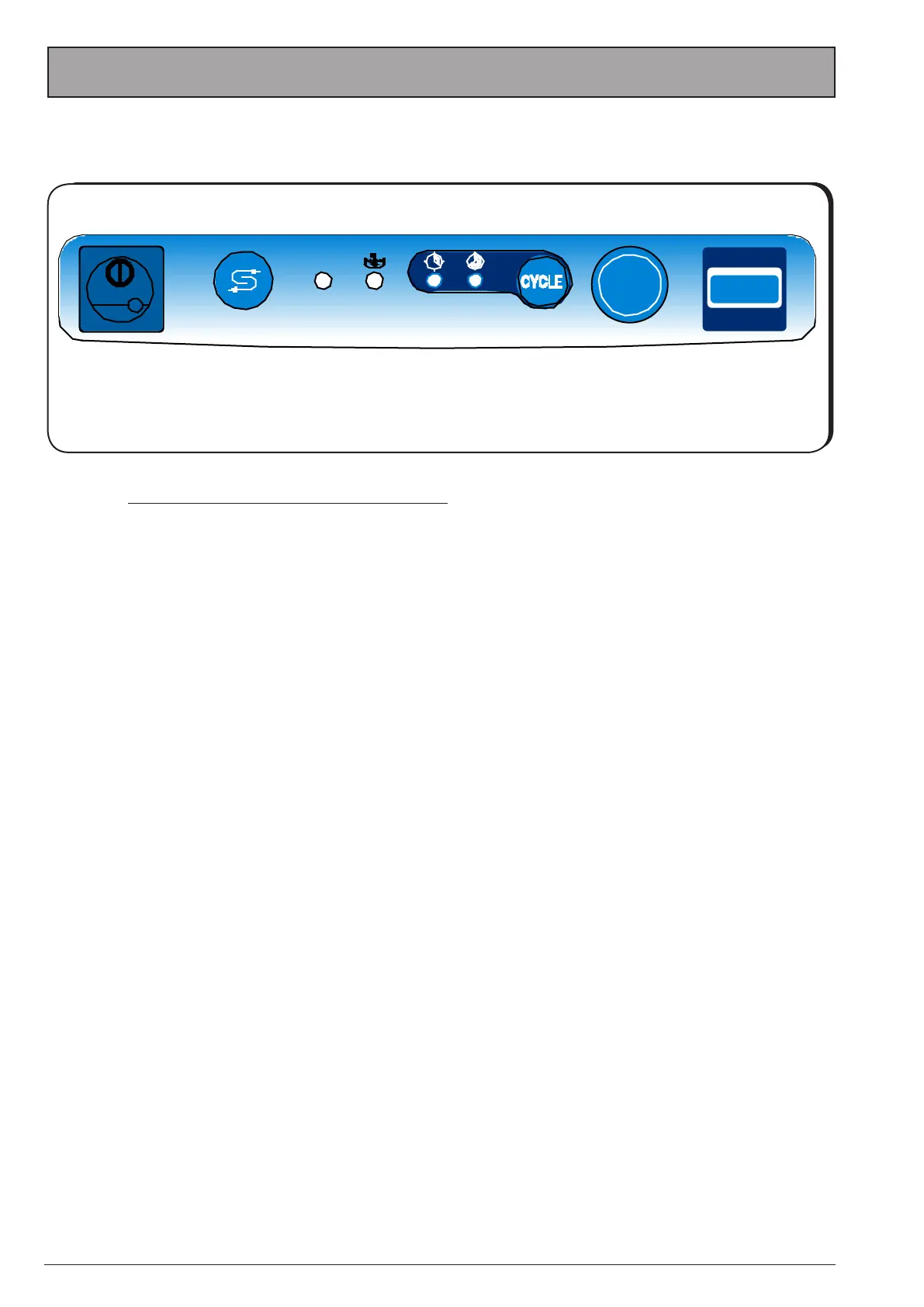

Fig. 1
LEGEND
Q1) Line button ON/OFF
S4) Regeneration button ( only for models C "D")
LRCK) CHECK led light
LTV) Tank temperature led light
LC1) SHORT cycle led light
LC2) MEDIUM cycle led light
LC1+LC2) LONG cycle led light
S9) CYCLE selection button
S3) START CYCLE button
Q1 S4
LRCK LTV
C
CHECK
LC1 LC2
S3
S9
START
