Horizon Hobby E-flite Twin Otter 1.2m User Manual

EN

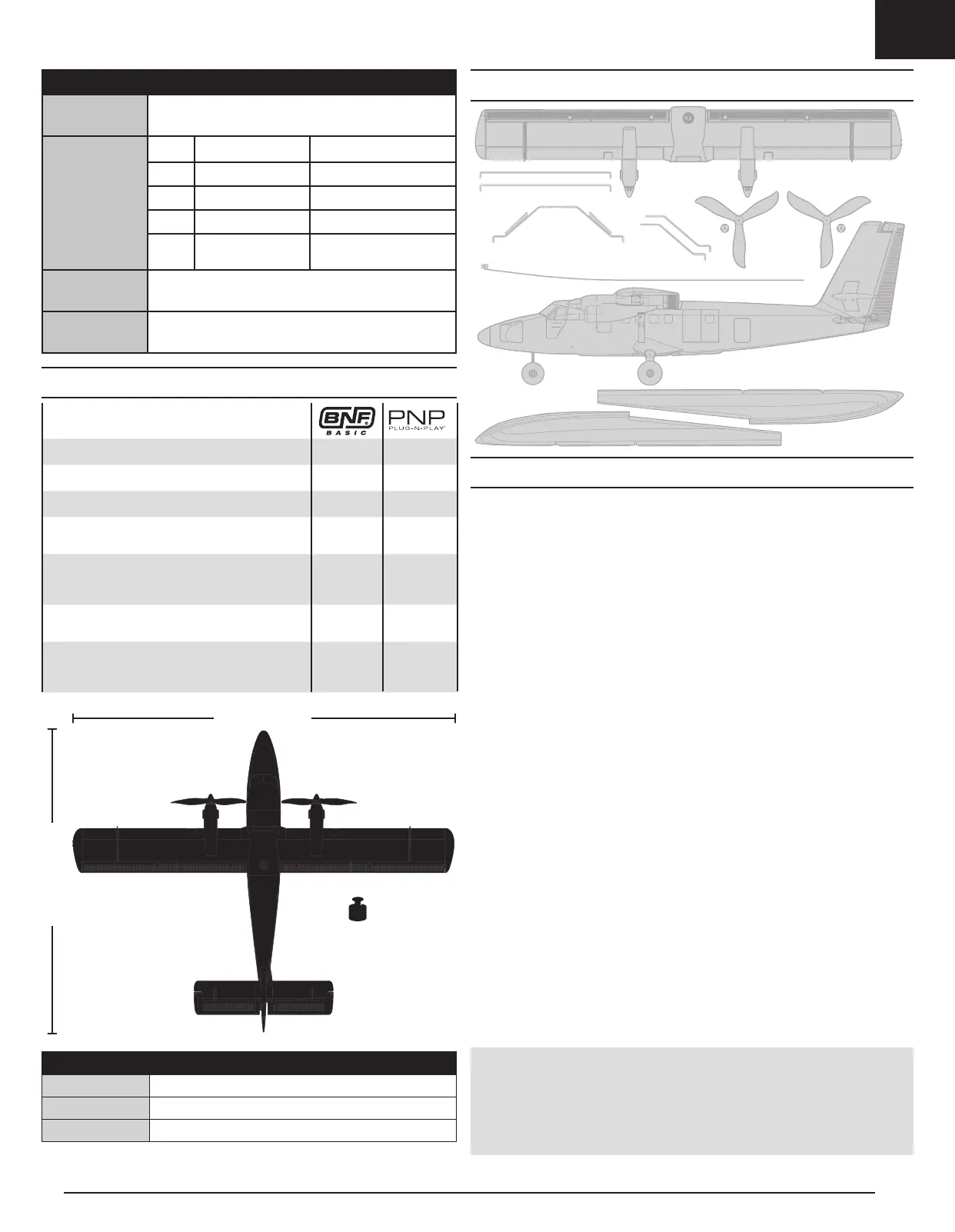

Quick Start Information
Transmitter
Setup
Set up your transmitter using the
transmitter setup chart
Dual Rates
Low Rate Hi Rate
Ail 8mm 12mm
Ele 8mm 12mm
Rud 10mm 20mm
Flaps
Half
q=10mm
Full
q=20mm
Center of Gravity
(CG)
45mm (±5mm) from leading edge
of wing at the fuselage
Flight Timer
Setting
6 minutes, initially
Motors: 2210–1350Kv (EFLM300514) Installed Installed
ESCs: 20A Brushless ESC (EFLA300515) Installed Installed
Servo: 9 gram servos (SPMSA330R) Installed Installed
Receiver: Spektrum
™
AR636 6-Channel Sport
Receiver (SPMAR636)
Installed
Required to
Complete
Recommended Battery: 11.1V 3S 2200–
3200mAh Li-Po (SPMX22003S30, SPMX22003S50,
SPMX22003S100)
Required to
Complete
Required to
Complete
Recommended Battery Charger: Compatible LiPo
battery balancing charger
Required to
Complete
Required to
Complete
Recommended Transmitter: Full-Range 6
channel 2.4GHz with Spektrum DSMX
®
technology
with adjustable Dual Rates
Required to
Complete
Required to
Complete
3
Box Contents
Table of Contents
37~39.5 oz
(1049~1118g)
36.75 in (933mm)
(48 in 1219mm)
Specications
SAFE
®
Select Technology (BNF Basic) ..........................................................4
Preight .......................................................................................................4
Model Assembly ..........................................................................................4
Receiver Installation (PNP) ...........................................................................6
Transmitter Setup (BNF) ............................................................................... 6
Battery Installation and ESC Arming ............................................................. 7
Center of Gravity ......................................................................................... 7
Transmitter and Receiver Binding/
Switching ON and OFF SAFE Select (BNF) ..................................................8
SAFE
®
Select Switch Designation .................................................................9
Control Surface Centering ............................................................................ 9
Control Surface Direction ...........................................................................10
Dual Rates and Control Throws ..................................................................10
AS3X Control Direction Test (BNF) .............................................................11
In Flight Trimming (BNF) .............................................................................11
Flying Tips and Repairs ..............................................................................12
SAFE Select Flying Tips .............................................................................. 12
Post Flight .................................................................................................13
Motor Service ............................................................................................13
Float Assembly and Installation .................................................................. 14
Flying Off Water .........................................................................................14
Replacement Parts, Optional Parts, Recommended Receivers (PNP) ...........15
AMA National Model Aircraft Safety Code ................................................... 16
Troubleshooting Guide AS3X/Troubleshooting Guide ...................................17
Limited Warranty .......................................................................................18
Contact Information ...................................................................................18
FCC Information ......................................................................................... 19
IC Information ............................................................................................ 19
Compliance Information for the European Union .........................................19
To receive product updates, special offers and more,
register your product at https://www.horizonhobby.com/content/e-flite-rc
As of this printing, you may be required to register with the FAA
if you own this product.
For up-to-date information on how to register with the FAA, visit
https://registermyuas.faa.gov/
For additional assistance on regulations and guidance on UAS usage, visit
https://knowbeforeyouy.org/
RECEIVER BIND INFORMATION (BNF)
Channels 6
Frequency 2405–2476 MHz
Compatibility DSM2 and DSMX

Horizon Hobby E-flite Twin Otter 1.2m Specifications
