Horstmann channelplus H37 XL series 2 User Manual

Lower the front flap of the unit. On third
Channel press the ADVANCE(Enter) and
SELECT(Blue) buttons together then release
the buttons and the programmer will return
to the preset factory settings.
ADVANCE
SELECT
BOOST
RESET
The simple instructions contained in this user guide are designed to help with the
programming and operation of the unit. Most of the following instructions require the front
flap to be lowered. Please replace the flap when normal operation is required.
FFRROONNTT CCOOVVEERR
RREESSEETT PPRROOCCEEDDUURREE
PPLLEEAASSEE NNOOTTEE;;
Using this procedure will restore the ChannelPlus to the original factory
programme settings, the time setting will also default to
11sstt JJaannuuaarryy 22000055
- See the
Adjusting Time and Date section on page.
Electronic equipment can in some circumstances be affected by electrical interference. If
the display becomes frozen or scrambled; or if you wish to revert back to the
default settings please use the following procedure.
RREESSEETTTTIINNGG TTHHEE CCHHAANNNNEELLPPLLUUSS HH3377XXLL SSEERRIIEESS 22
DDIISSPPLLAAYY IINNFFOORRMMAATTIIOONN

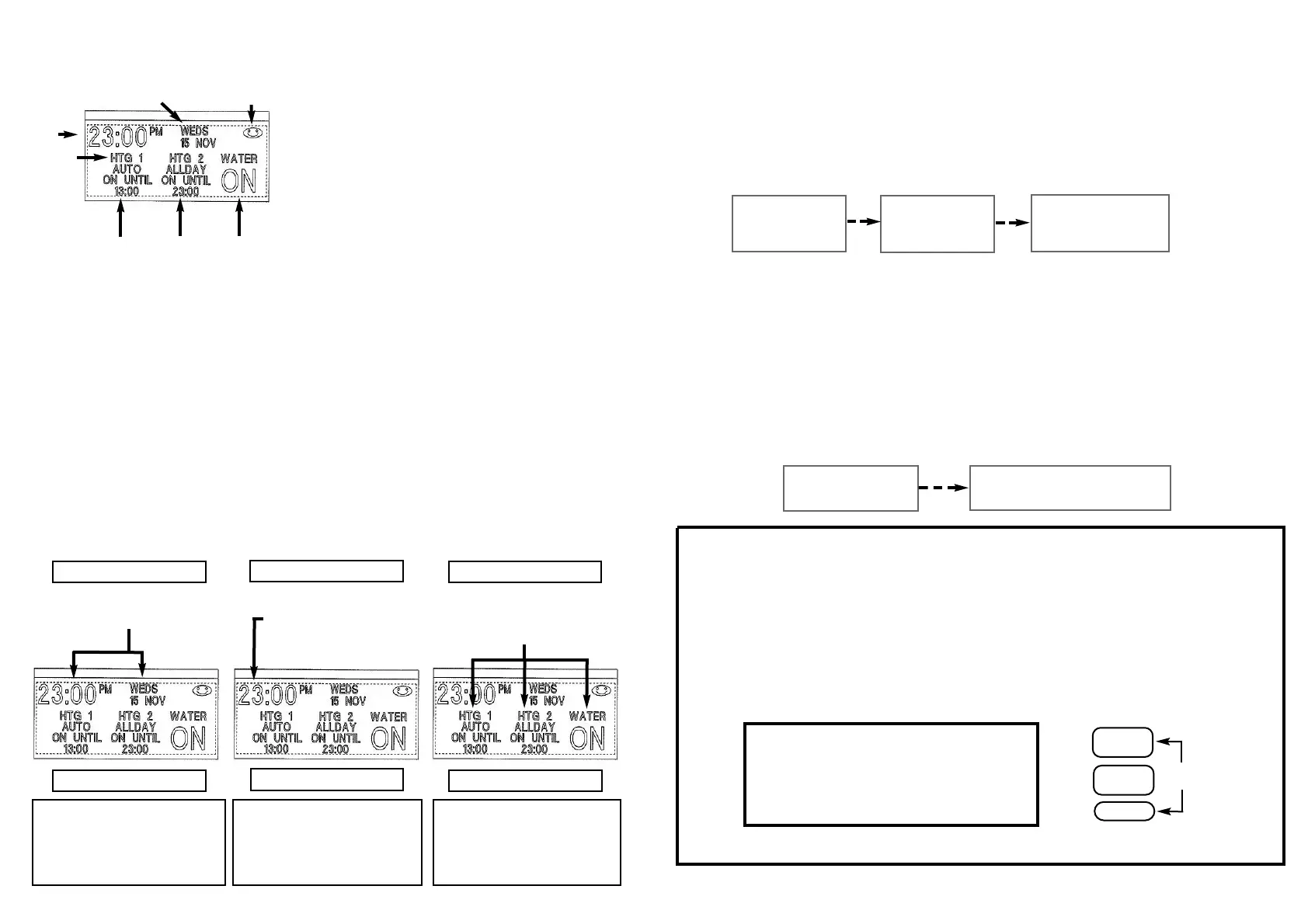

The ChannelPlus H37XL Series 2 programmer has
a fully graphical, back-lit display. In the normal
run mode the display is divided into three
sections, each section represents a controlled
channel (see diagram 1). The information
displayed will change depending upon the
settings made and which mode you are in.
During different programming modes and/or
setting screens the current time, day/date,
holiday indicator will only appear when
necessary, this is to reduce confusion during
the programming process. This is explained
further in later sections of this guide.
Diagram 1
Time
Day/Date
Holiday function
active
Channel/
Zone 1
Status
Channel/
Zone 2
Status
Channel/
Zone 3
Status
AADDJJUUSSTTIINNGG DDEEFFAAUULLTT SSEETTTTIINNGGSS
The ChannelPlus H37XL Series 2 has a number of default settings which are factory preset.
These settings are designed to reduce the need for user intervention upon installation
of the programmer. However it is possible to customise the user display by following the
procedures in the following pages. The factory defaults are illustrated below;
Time displayed in
24Hr clock
Channel heading set to
standard installation i.e
Heating and Hot Water
Time and Calender
are factory set.
TIME AND DATE
CLOCK OPTIONS
HEADINGS
OPTIONS
OPTIONS
OPTIONS
The programmer has been pre-set with
the current time and date during
manufacture. No alteration should be
required to the time and date.
However if any modification is required
please refer to the flowchart on page 3.
24 Hour
or
AM /PM
Heating / Water
Zones
Channels
PPaaggee 22
AADDVVAANNCCEE FFUUNNCCTTIIOONN
--
BBRRIINNGGSS FFOORRWWAARRDD TTHHEE NNEEXXTT OONN OORR OOFFFF OOPPEERRAATTIIOONN
Press ADVANCE button once
to move to the next
ON/OFF time
To cancel the advance press the ADVANCE
button again. This will return the unit to
its normal programme
The Advance facility will allow the user to either bring a channel ‘ON’ which is currently ‘OFF’
or switch channel ’OFF’ which is currently ‘ON’. To indicate the Advance feature being
activated the ‘ADVANCE’ button under the selected channel will stay illuminated until the next
programme switching time, the user display will change to also indicate the status of the
channel and the next switching time.
The chart below illustrates the different options available. As all three channels are totally
independent it is possible to have them all set differently if required.
BBOOOOSSTT FFUUNNCCTTIIOONN
--
11 OORR 22 HHOOUURR TTEEMMPPOORRAARRYY OOVVEERRRRIIDDEE
Press BOOST button
once for 1 hour of
Hot Water or
Central Heating
Press BOOST button
twice for 2 hours of
Hot Water or
Central Heating
Press BOOST button a third
time to cancel the period
and return to the normal
programme
The Boost facility will allow the user to either activate a channel which is currently ‘OFF’ for
either 1 or 2 hours, or to extend a current period by 1 or 2 hours. To indicate the boost being
activated the ‘BOOST’ button under the selected channel will stay illuminated for the
duration of the boost/extension period. The display will also indicate the extension to the
time visually on the display.
The chart below illustrates the different options available. As all three channels are totally
independent it is possible to have them all set differently.
PPaaggee 77
Channel
header

Horstmann channelplus H37 XL series 2 Specifications

General

Brand	Horstmann
Model	channelplus H37 XL series 2
Category	Thermostat
Language	English
