Hospitex Diagnostics EOS Bravo and EOS Bravo Plus Service Manual
16

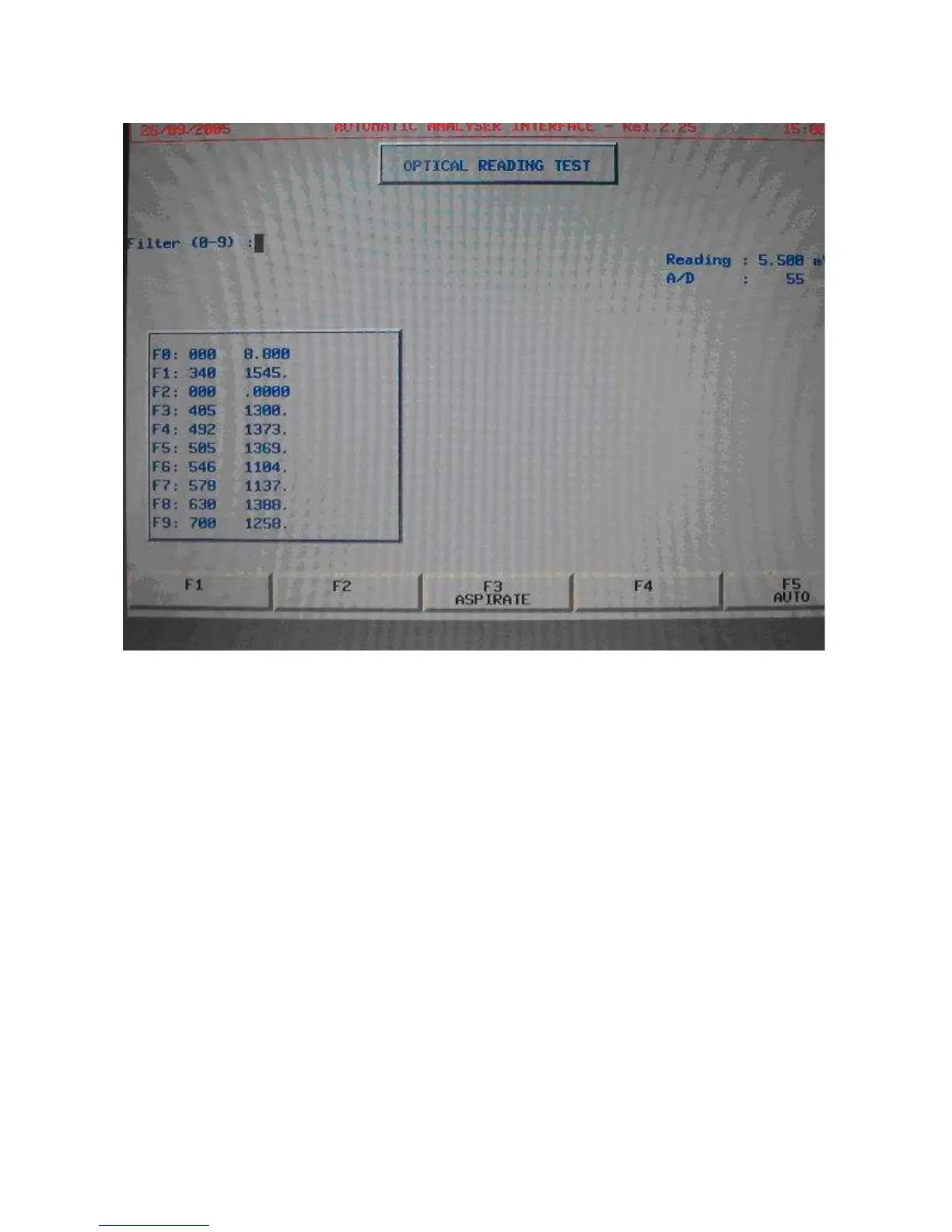

MAIN MENU’ > F5 SERVICE > F3 DIAGNOSTICS > F1 READING TEST ( MONOCUVETTE )
F1 READING TEST : Remove the aspiration needle and put it in a holder with distillated
water.
Press F3 ASPIRATE to aspirate.
After you have aspirate water, select the filter 1 = 340 nm.
You get visualized the reading of the filter in mV and in digit.
Using the trimmer of the gain we can increase or decrease the value
of the reading.
Act on the gain trimmer to have a reading 1300 mV.
You should keep in mind, that once you act on the trimmer of the
gain to modify the reading of all the filters on board to the filters
wheel.
To execute the regulation of the offset select the Filter 0 = NULL
and act on the relative trimmer to have a reading > 1 mV.
Once the regulation of the gain and the offset is done, it’s necessary
To execute an autozero to be able to memorize the new values.
THE OPERATIVE RANGE FOR EVERY SINGLE FILTER IS 500 mV ÷ 1800 mV
