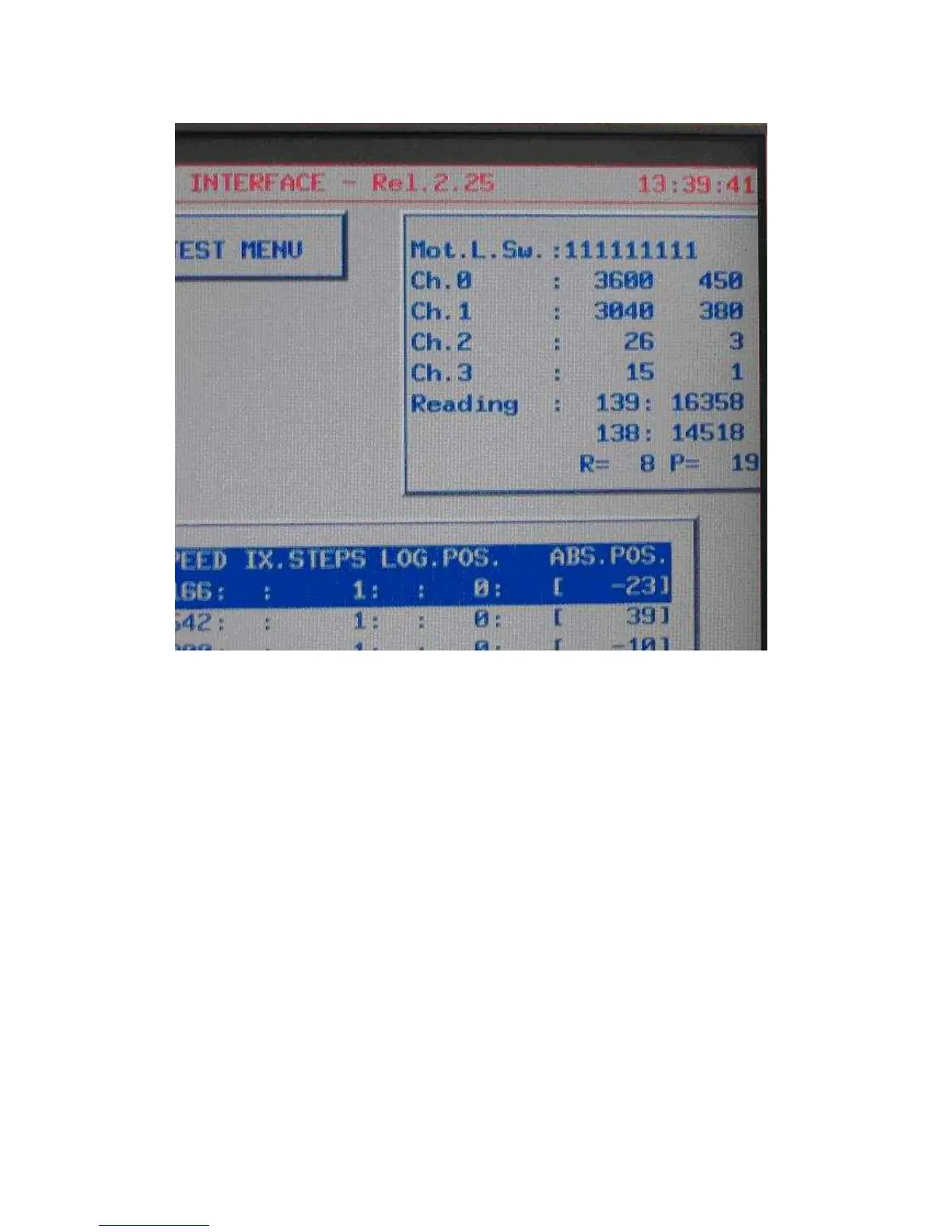

MAIN MENU’ > F5 SERVICE > F3 DIAGNOSTICS > F3 HARDWARE TEST > F5 DISPLAY INPUTS
MOT.L.SW. : Indicates the logical status of the home position sensor and the logical
status of the level sensor.
CH0 : Channel of the A/D CONVERTER for the outer plate temperature.
Visualizes the value of temperature in teen degrees.
CH1 : Channel of the A/D CONVERTER for the cuvette temperature.
Visualizes the value of temperature in teen degrees.
CH2 : Not in use
CH3 : Not in use
READING : Not in use
R : Indicates the state of the functioning of the heating circuit of the outer
plate.
P : Indicates the state of the functioning of the heating circuit of the optical
group.
