Electronic:

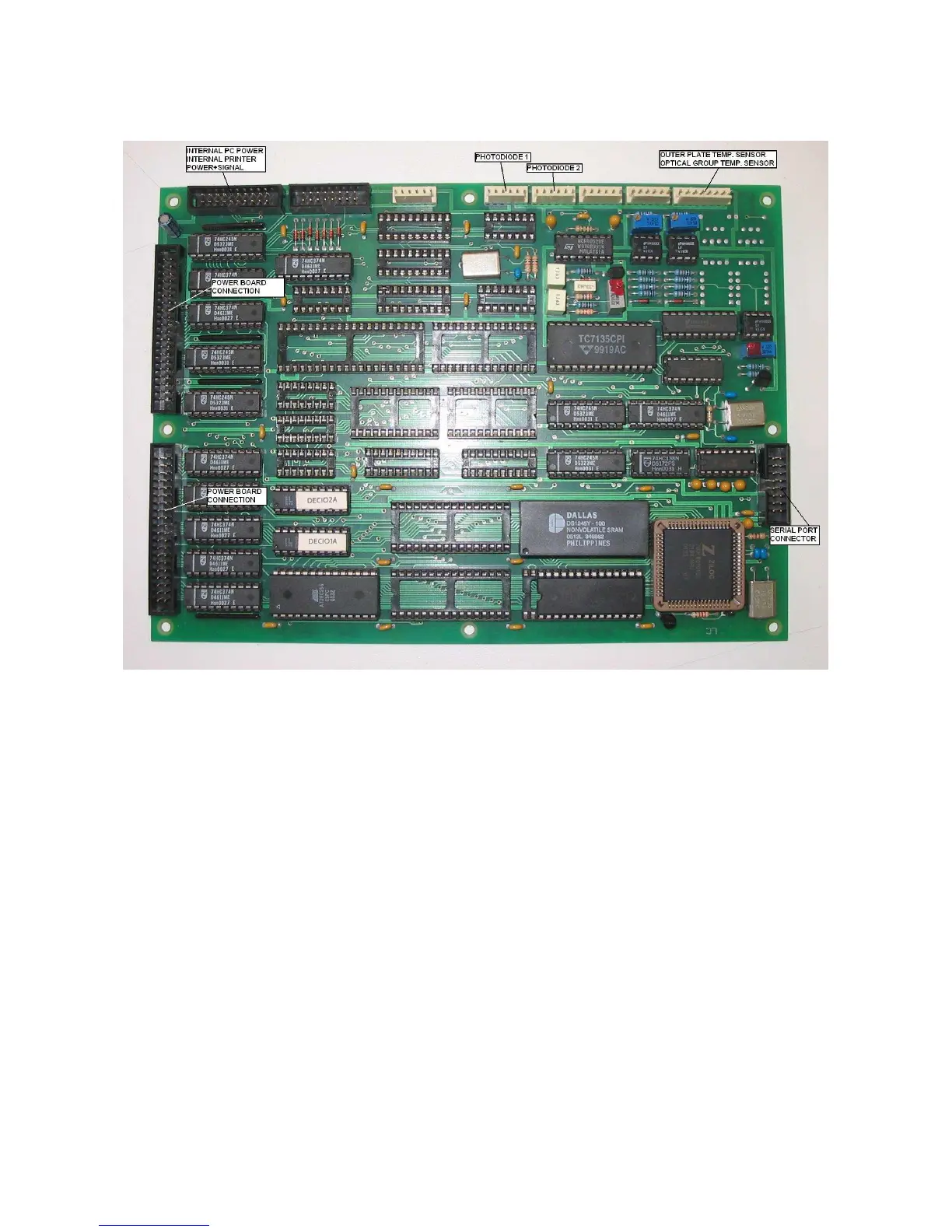

Figure 1: CPU Board
The CPU Board is arranged with a Z80 processor family and its circuit.
A NON-VOLATILE RAM contains the user defined parameters.
Two EPROMS are present and these contains the firmware. During a firmware updates these
components could be replaced.
