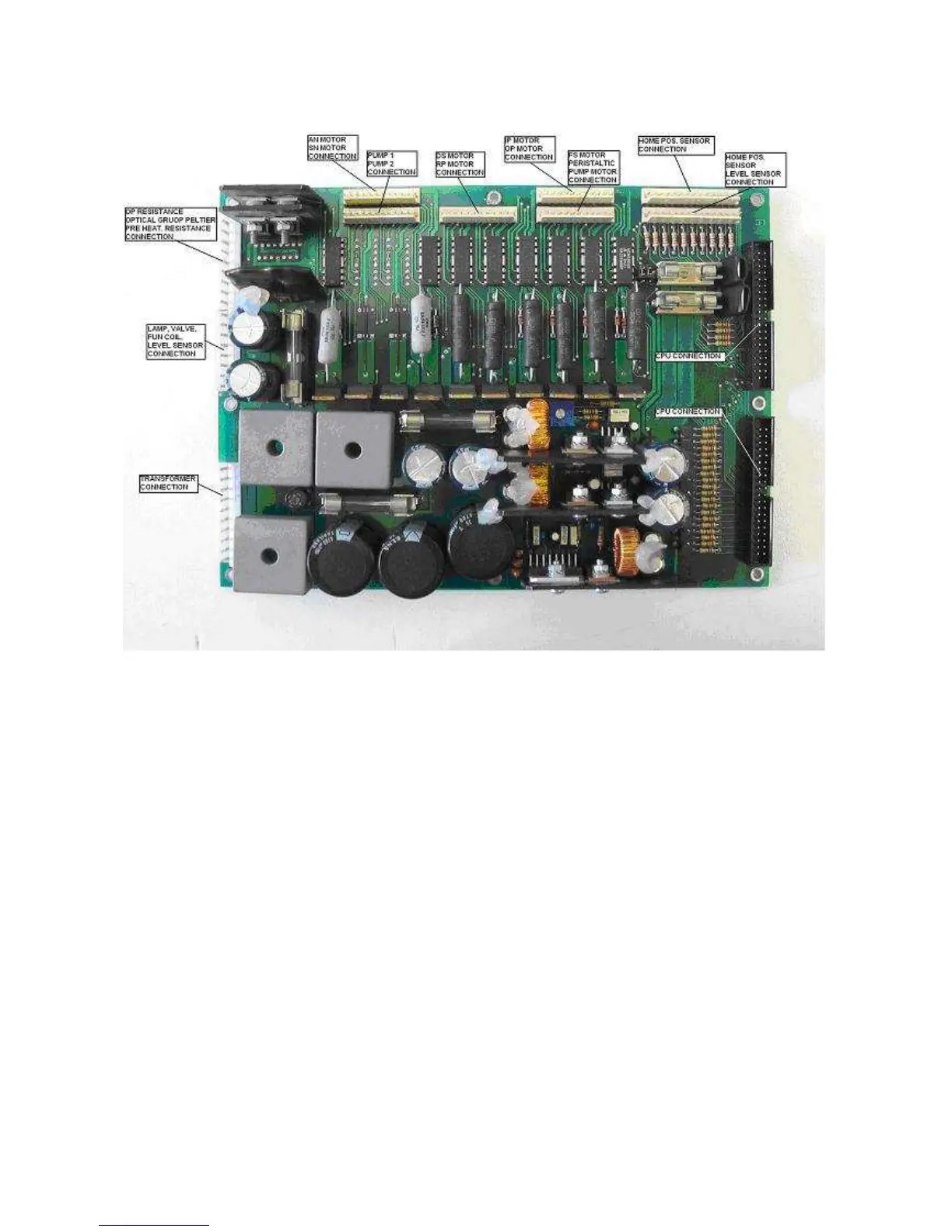

Figure 2: POWER Board
The POWER Board is the power interface between CPU and external devices like Stepper Motors,
Home Position sensors, Temperature sensors and so on.
The Power Board receive AC voltage from the Main Transformer and provides DC power supply +/-
12 Vcc and
+/- 5 Vcc to the instrument electronic.
Fuses are present on the Power to protect the parts in case of malfunction.
Fuses Values :
F1 = 10 A 6x30
F2 = 5 A 6x30
F3 = 10 A 6x30
F4 = 200 mA 5x20
F5 = 200 mA 5x20
No adjustment are necessary for the DC voltages because integrated stabilizer I.C. are used
