Hospitex Diagnostics EOS Bravo and EOS Bravo Plus Service Manual
60

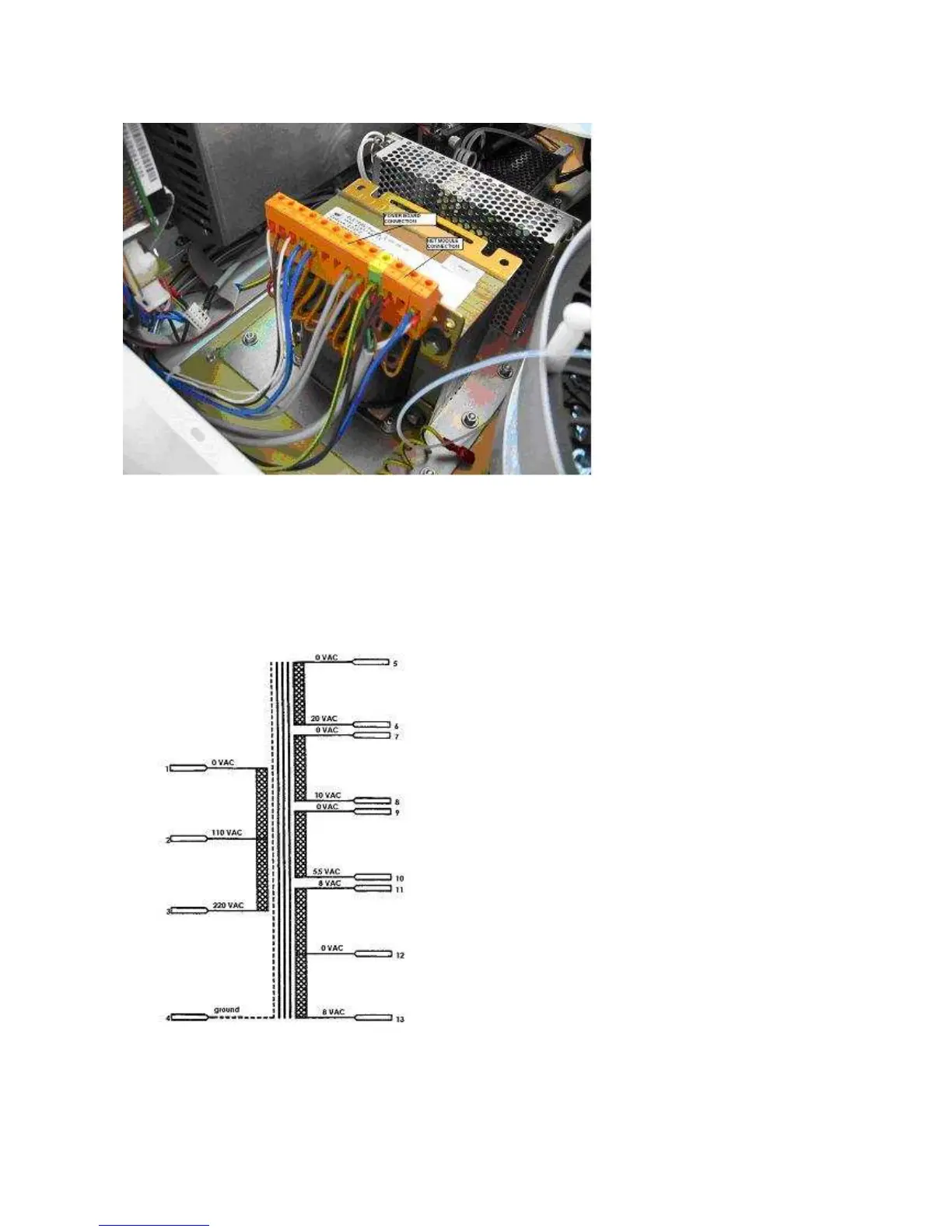

Figure 9: Main Transformer
Select the main voltage on main transformer in order to connect the instrument to 115 VAC or 220 VAC.
115 VAC: Connect the 1
st
( neutral ) and the 2
nd
( phase ) and the 4
th
( ground ) together. AC line has to be connect
between 1 and 2 terminal.
220 VAC: Connect the 1
st
( neutral ) and the 3
rd
( phase ) and the 4
th
( ground ) together. AC line has to be connect
Between 1 and 3 terminal.
Figure 10: Main Transformer electrical
To Next Page
