Hospitex Diagnostics EOS Bravo and EOS Bravo Plus Service Manual
72

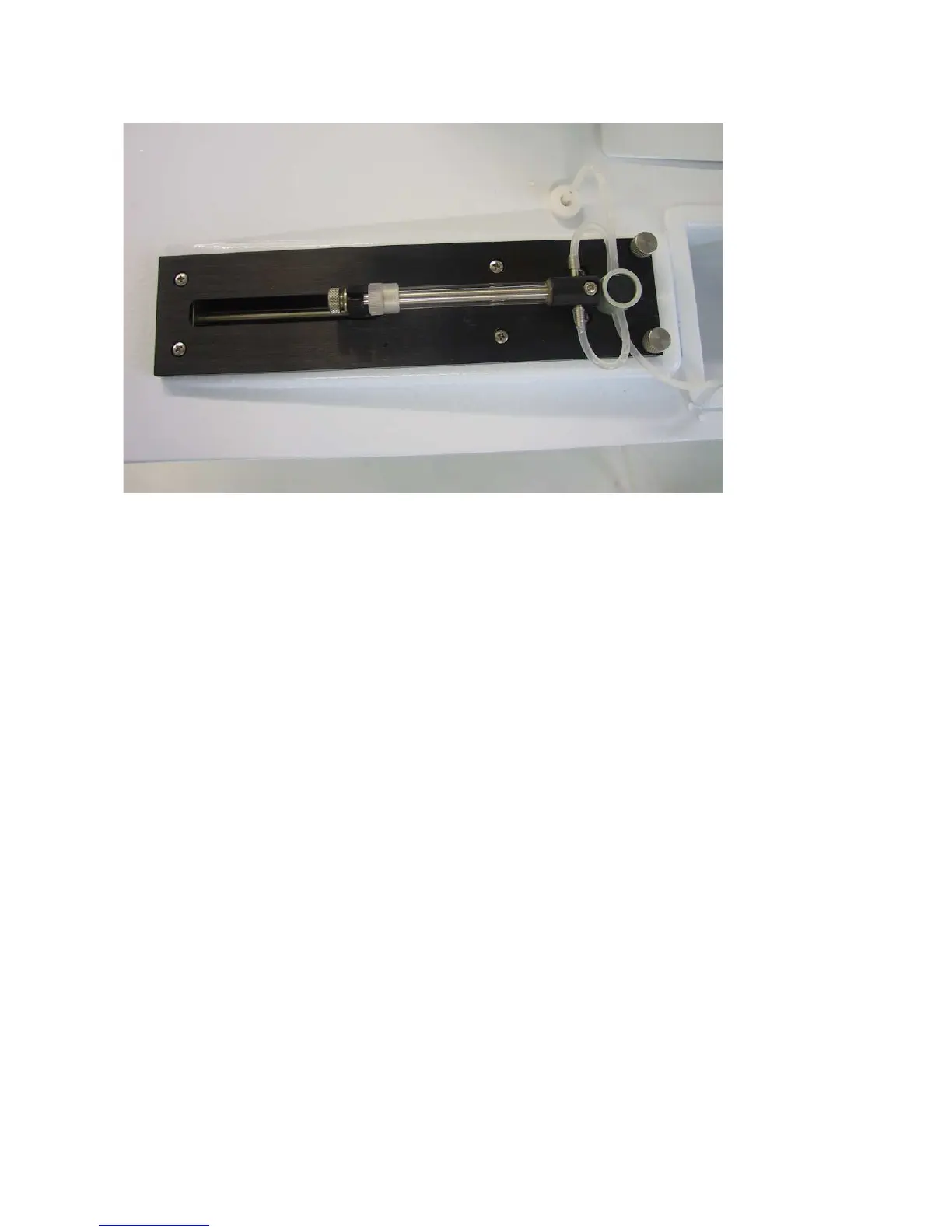

Figure 10: Diluter
The SYRINGE movement and position is controlled by a stepper motor driver (U10) located onboard
to the Power board that drives an stepper motor model HY200 1713 0100 and an optical sensor
barrel that informs when the syringe is at home position.
The movement from the motor to the syringe is made by a mechanism driven from a no-ending
screw.
