Hotone NANO LEGACY Series User Manual

1
2
3
4
5
6

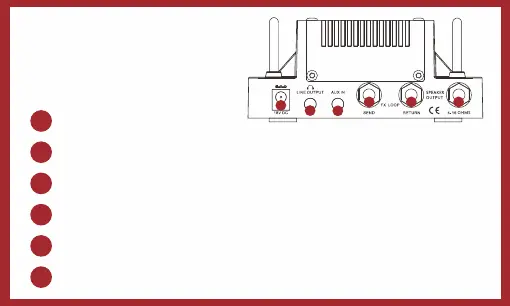

FX LOOP SEND:
1/4" mono jack, connect to your effects input jack.
(The Effects Loop is a patch point between the pre-amp and power amp).
18V DC:
Plug in 18V DC adapter (center negative).
PHONES/LINE OUTPUT:
1/8" stereo jack, for using headphones or recording.
AUX IN:
1/8" stereo jack, for connecting an external music player.
SPEAKER OUTPUT:
1/4" mono jack, connect to your cabinet (speaker 4-16 Ω).
FX LOOP RETURN:
1/4" mono jack, connect to your effects output jack.
1
2
6
5
4
3
Rear
Panel

Hotone NANO LEGACY Series Specifications

General

Input	1/4" instrument input
Output	1/4" speaker output
Technology	Solid State
Controls	Gain, Volume, Tone
Power Supply	9V DC
Type	Guitar Amplifier
Channels	1
Effects	Built-in Reverb
Outputs	Speaker Output, Headphone Output
Power Supply Adapter	9V DC
Aux Input	1/8" Aux Input
