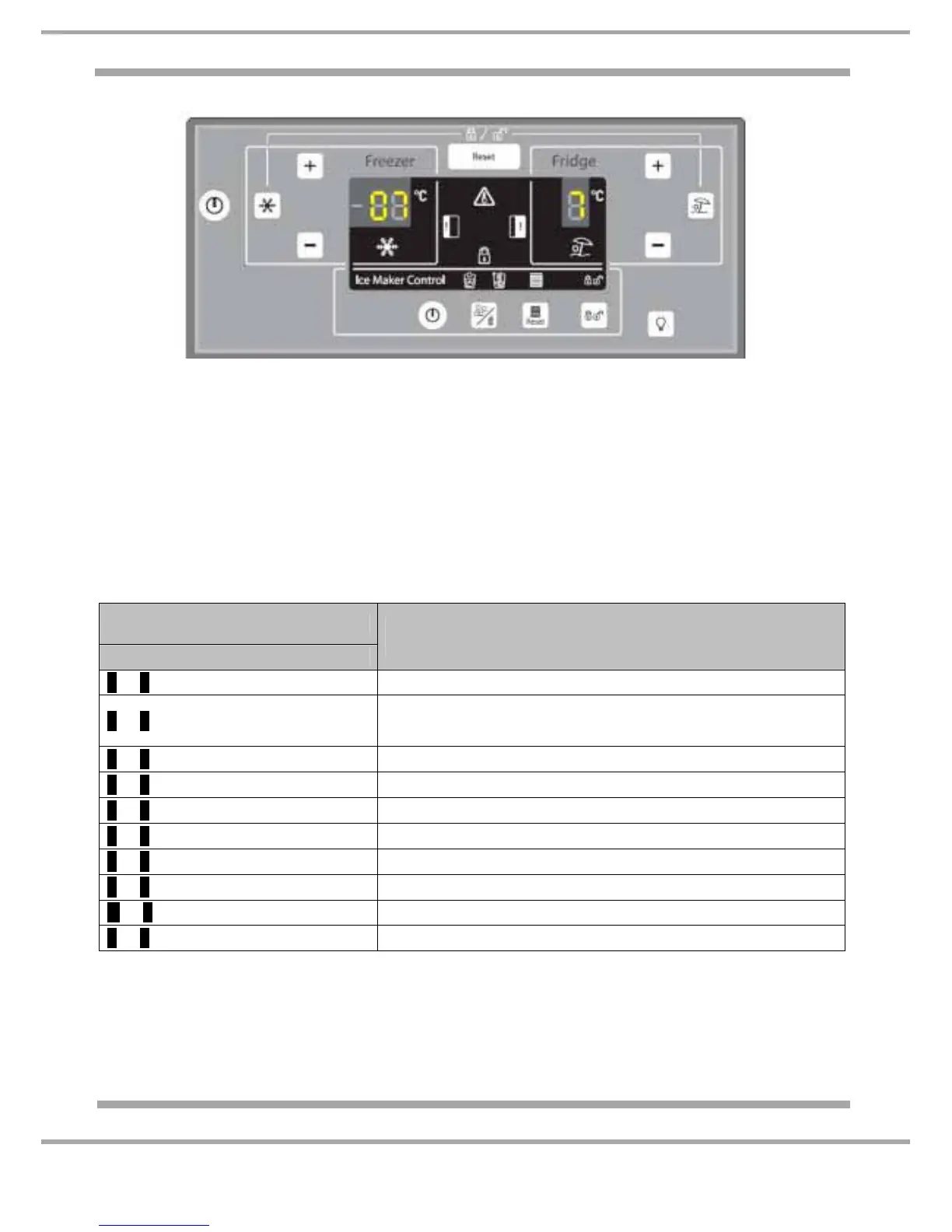

Control Panel Interface (mounted above dispenser assembly)
Example above shows Sequence '07' of the Auto Test in the freezer temperature display and fault
code '7' to '0' flashing alternatively in the fridge temperature display.
• Check evaporator heater / connections.
Fault conditions: are signalled to the engineer during Auto Test.
See chart below for AUTO TEST fault codes and explanations.
Note: If two or more fault codes have been recognised, they will display alternately at 1 second
intervals.
TEMPERATURE DISPLAY
Fridge
AUTO-TEST FAULT CODE
(explanations)
8 to 0 flashing alternatively Relay K008 on module faulty (for Damper)
Evaporator Defrost Heater - resistance can be obtained from
power module 12PIN block term 1 & 16PIN block term 1
7 to 0 flashing alternatively
6 to 0 flashing alternatively Fridge Sensor (thermistor)
5 to 0 flashing alternatively Freezer Sensor (thermistor)
4 to 0 flashing alternatively Evaporator Fan
3 to 0 flashing alternatively Condenser Fan
2 to 0 flashing alternatively Damper (baffle)
9 to 0 flashing alternatively Water Valve for Icemaker
H to 0 flashing alternatively Icemaker (Sankyo)
1 to 0 flashing alternatively Water Valve for Water Dispenser
