GRANDEE (GGN)
Dimensions
NOTE: All dimensions are approximate; measure your spa
before making critical design or pathway decisions.
Configuration and location may change without notice.
NOTE: WATKINS WELLNESS requires that the GRANDEE be installed on a minimum 4” (10 cm) thick
reinforced concrete pad or a deck that is able to withstand more than 125 lbs/ft
²
(605 kg/m
²
).
WARNING: The GRANDEE must not be shimmed in any manner.
x Page x x Page 5 Pre-Delivery Instructions

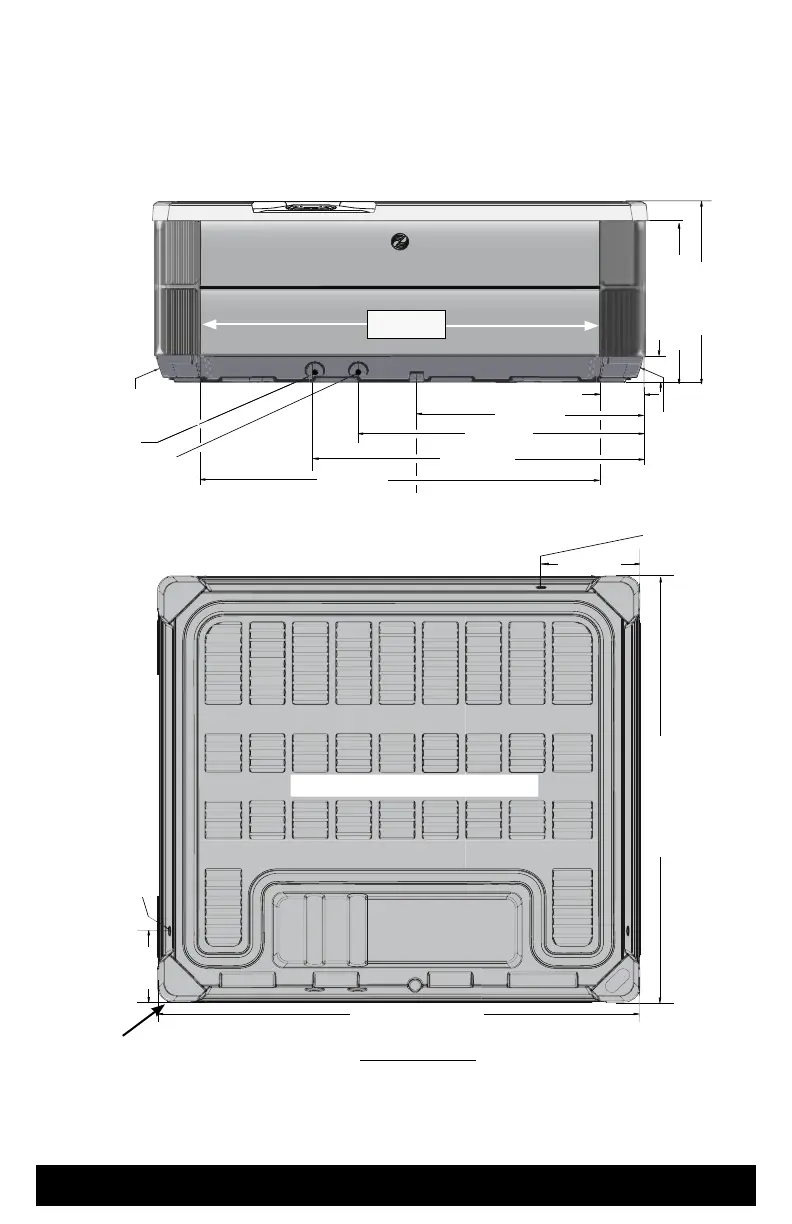

DOOR SIDE
67" (239.0 cm)
58" (142.0 cm)
6 " (15.2 cm)
34 " (86.5 cm)
38" (97.0 cm)
89.5" (227.3 cm) Base Pan
98.5" (250.1 cm) Base Pan
Grandee
46" (116.8 cm)
9" (22.9 cm)
15"
(38 cm)
81" (205.7 cm)
20" (50.8 cm)
100" (254 cm) Overall
91" (231 cm) Overall
(Front view)
(Left side)
RADIUS
3" (7.6 cm)
SECONDARY DRAIN
ELECTRICAL CONNECTION
(2.5" (6.5 cm) from ground)
Electrical Connection (Both sides)
Back Electrical
Connection
ELECTRICAL
CONNECTION
(2.5"
(6.5 cm) from
ground)
Front Electrical
Connection
MAIN DRAIN
TOP VIEW OF SPA BOTTOM
DOOR
