ENVOY (KKN)

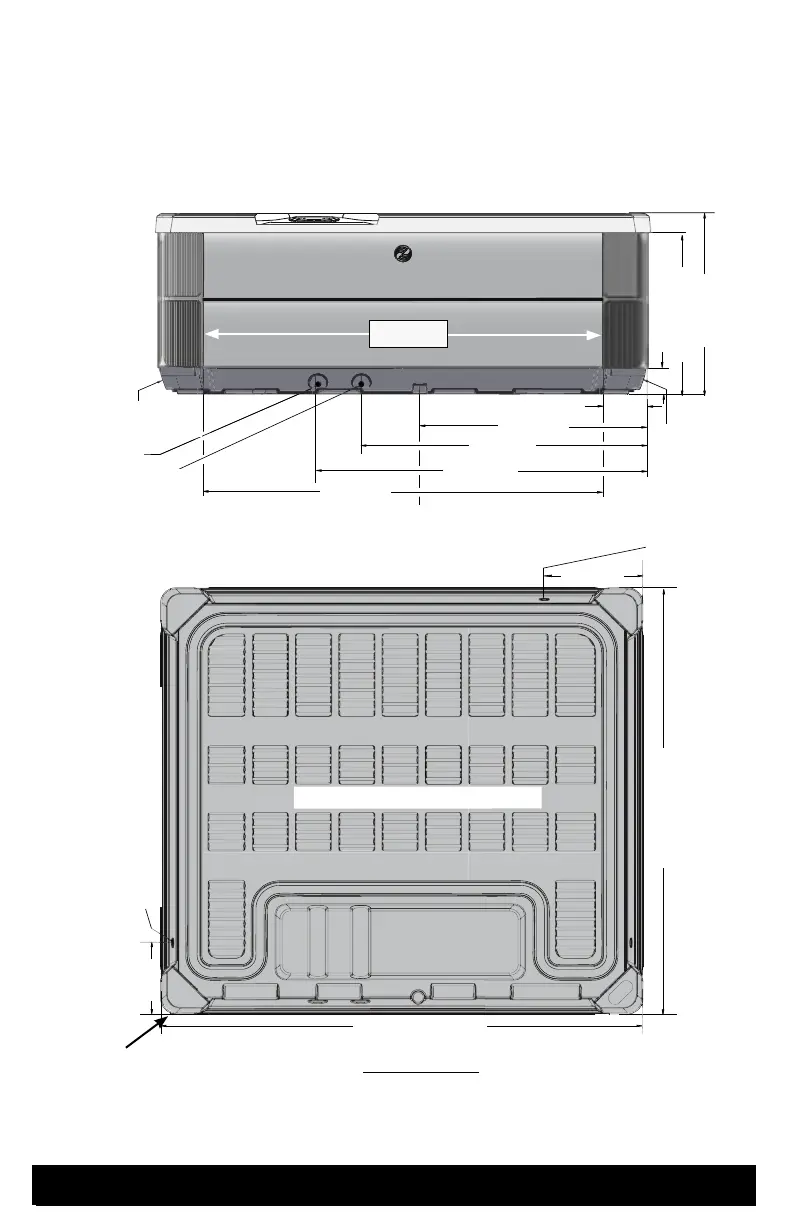

Dimensions
NOTE: All dimensions are approximate; measure your spa
before making critical design or pathway decisions.
Configuration and location may change without notice.
DOOR SIDE
x Page x xPre-Delivery Instructions Page 6
NOTE: WATKINS WELLNESS requires that the ENVOY be installed on a minimum 4” (10 cm) thick reinforced
concrete pad or a deck that is able to withstand more than 120 lbs/ft
²
(570 kg/m
²
).
WARNING: The ENVOY must not be shimmed in any manner.
67" (239.0 cm)
58" (142.0 cm)
6 " (15.2 cm)
34 " (86.5 cm)
38" (97.0 cm)
89.5" (227.3 cm) Base Pan
98.5" (250.1 cm) Base Pan
Grandee
46" (116.8 cm)
9" (22.9 cm)
15"
(38 cm)
81" (205.7 cm)
20" (50.8 cm)
100" (254 cm) Overall
91" (231 cm) Overall
(Front view)
(Left side)
RADIUS
3" (7.6 cm)
SECONDARY DRAIN
ELECTRICAL CONNECTION
(2.5" (6.5 cm) from ground)
Electrical Connection (Both sides)
Back Electrical
Connection
ELECTRICAL
CONNECTION
(2.5"
(6.5 cm) from
ground)
Front Electrical
Connection
MAIN DRAIN
TOP VIEW OF SPA BOTTOM
DOOR
