Page 34
NOTE: Watkins Manufacturing Corporation recommends that the PULSE/DL be installed on a minimum 10 cm thick reinforced concrete pad or structurally
sound deck able to support the “dead weight” found in the spa specification chart.
WARNING: The PULSE/DL must not be shimmed in any manner.
PULSE
89" (226cm)
89"
(226cm)
3.5" (9 cm)
34.5" 87.5 cm)
38" (96.5 cm)
65 1/2" (166.4 cm)
18.5” (47 cm)
74.5” (189 cm)
40.5” (103 cm)
(Bottom view)
(Front view)
Upside Down View
of Spa

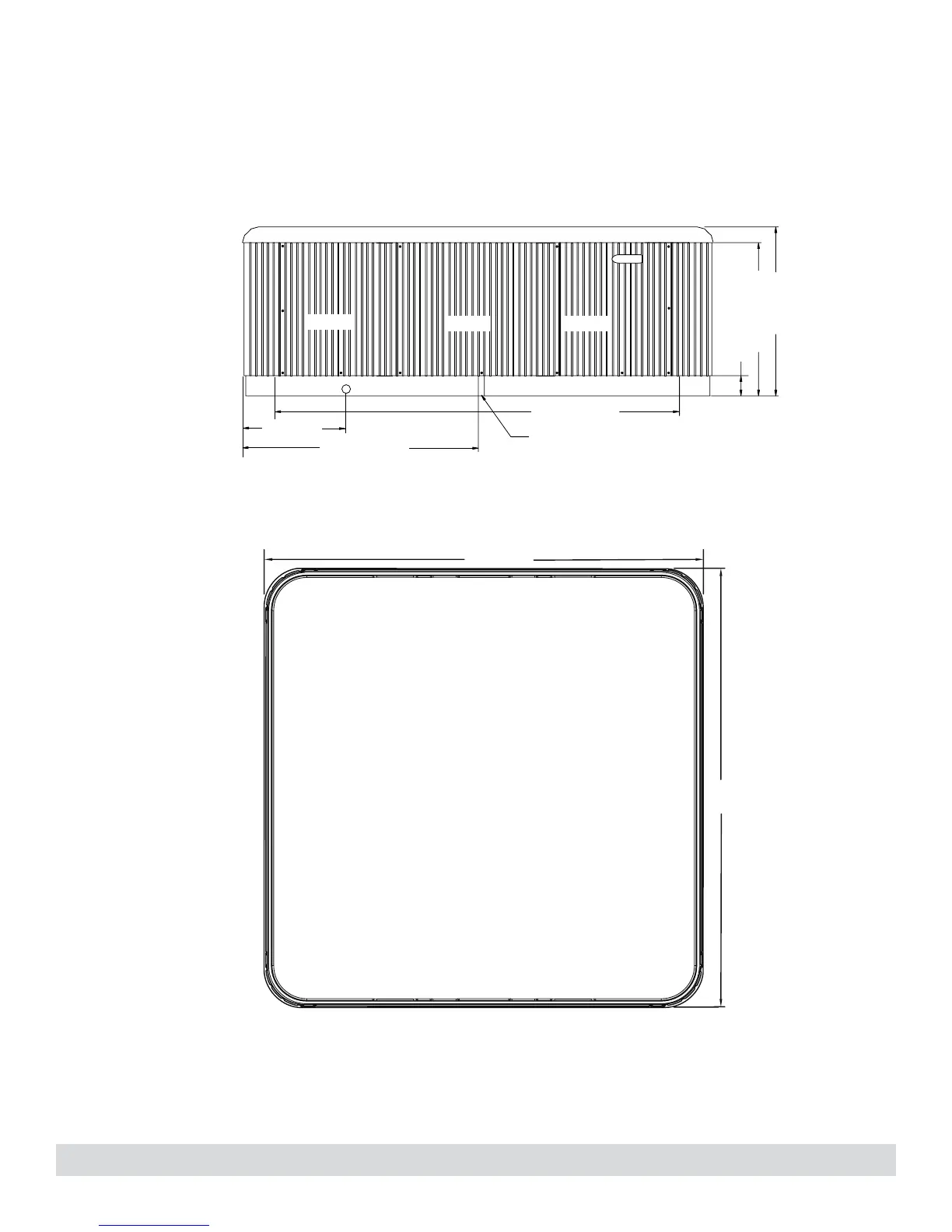

PULSE/DL (MODEL PLSE/PLSDE)
Dimensions
NOTE: All dimensions are approximate; measure your spa before making critical design or
pathway decisions.
Installation Instructions
Door
Door Door
Drain
Electrical Cutout 1 3/4" (4.5 cm)
