Overview of the appliance

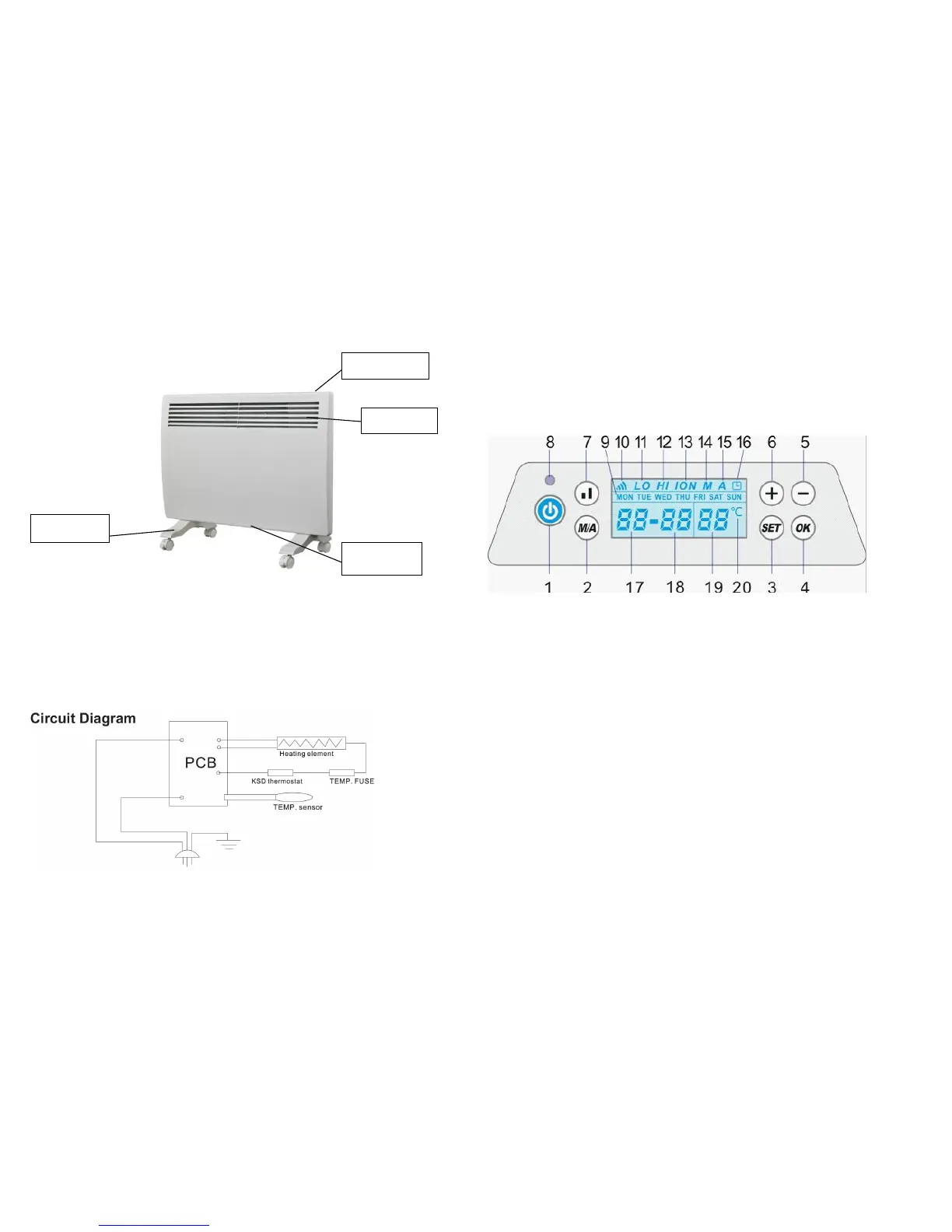

Fig. 1
Specifications:
Rated Power: 2000W/1000W 1500W/750W 1000W/500W
Rated Voltage: 240V 50Hz 240V 50Hz 240V 50Hz
Dimensions (mm): 830*75*400 595*75*400 460*75*400
1. The function module
This function module is designed for use with the Hotwire Panel Convector Heater.
It is supplied fully assembled and can be replaced by an authorized technician. The
heater must be shut down during installation. The function module contains an
accurate electronic thermostat.
2. Guide to the control panel
2.1. Control panel
“1”： Power On/Off button
“2”： Mechanical/automatic mode choose
“3”： Mechanical/automatic mode timer setting.
“4”： Confirm button
“5”： Downwards adjustment
“6”： Upwards adjustment
“7”： High/low power selected
“8”： Power indicator light
“9”： Day
“10”Heating element working indicator light
“11”Low power
“12”High power
“13”Negative ion function--This model excludes negative ion function
“14”Mechanical control
“15” Automatic control
“16” Timer
“17” Hours display
“18” Minutes display
