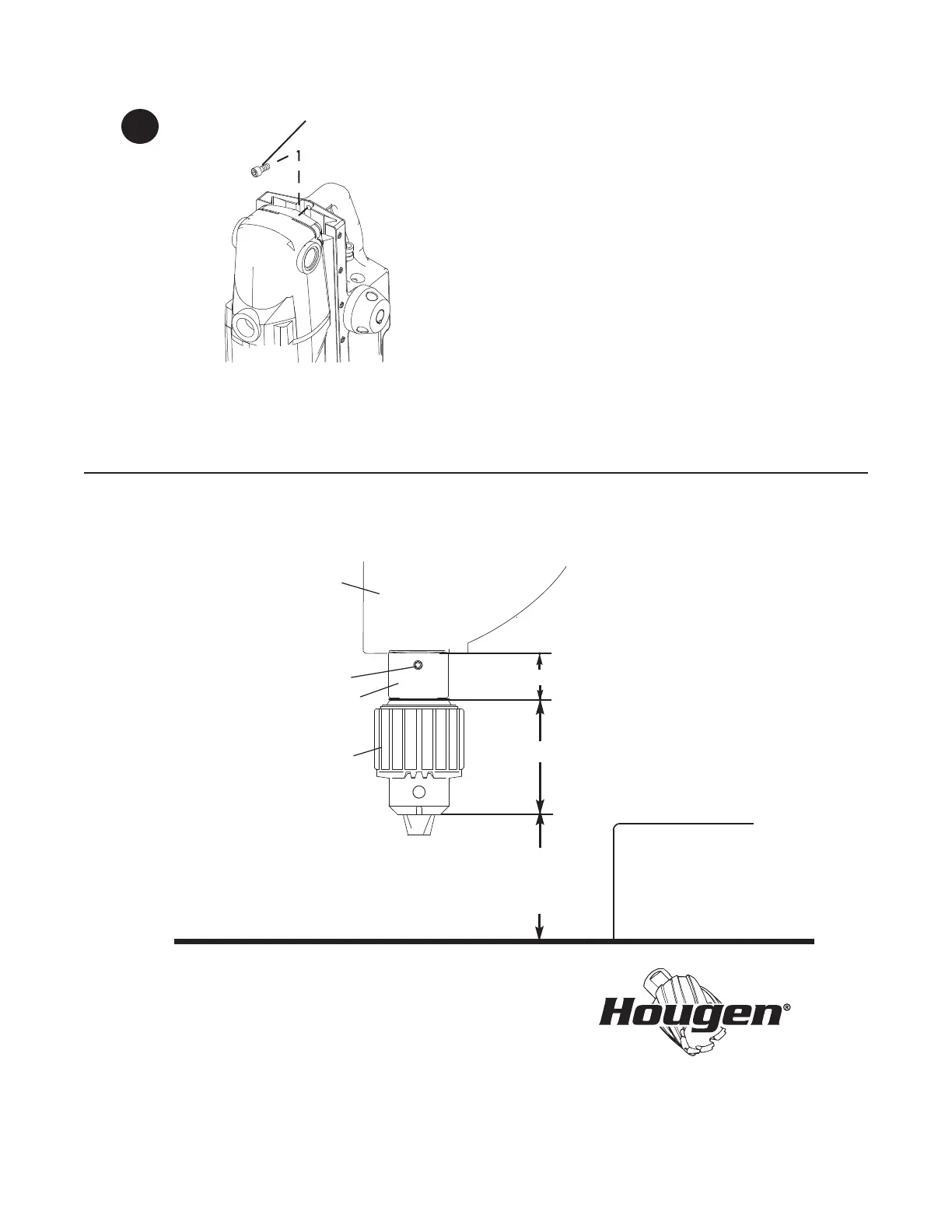

MOTOR
(05536) SPINDLE ADAPTER KIT
Set-Screws
Hex Adapter
Approx. 1.188”
Approx. 2.38”
Approx. 5.875” when the drill motor
is in the UP position with 4” of stroke down.
Magnet
Drill Chuck
Your 3-Jaw Chuck is now installed. Select the proper twist bit for your application and follow Operating Proce-
dures for the Hougen Magnet Based Drill you are using.
6
40432 Stop Screw SHC 1/4-28 X 3/8 to use with the HMD904 or HMD908.
05357 Stop Screw SHC 1/4-28 X 7/8 to use with the HMD925.
Now that the Chuck and Adapter is installed, part number
40432 Stop Screw needs to be installed on the HMD904
& HMD908 or install the 05357 on the HMD925. This Stop
Screw sould be threaded into the top of housing in front of
the Motor Assembly as shown in Diagram 6.
Chuck sold separately
Hougen Manufacturing, Inc.
P.O. Box 2005 • Flint, MI 48501-2005
3001 Hougen Drive • Swartz Creek, MI 48473
Phone (810) 635-7111 • Fax (810) 635-8277
www.hougen.com • info@hougen.com
© 2019 Hougen Manufacturing, Inc.
FORM 05547
