INSTRUCTION MANUAL
C-460
STAR-FANGLED NUT
SETTER
Thank you for purchasing the HOZAN C-460 STAR-FANGLED NUT SETTER. With proper
care and handling, this fine instrument will provide years of trouble-free operation. Please
read this entire instruction manual carefully before attempting to place this instrument in
service. Please keep this instruction manual available for reference.
Warning and caution symbols
These symbols are used throughout the instruction manual to alert the user to potential
safety hazards as follows :

Warning
…
Notice when incorrect handling could cause the user's death or
serious injury.

Caution
…
Notice when incorrect handling could cause injury to the user or material
damage.
Even if the instructions do not have

Caution
mark, there are some possibilities for a
serious situation. Follow the instructions.
This tool is for installing a star-fangled nut into a bicycle fork column. Do not use for any
other purpose.
Precautions
1. Check the fork column size before inserting the barrel guide. Then select the
appropriate end of the guide barrel for insertion onto the fork column.
2. Do not strike the punch excessively hard. Otherwise, this could damage the fork
column or the tool.
Caution

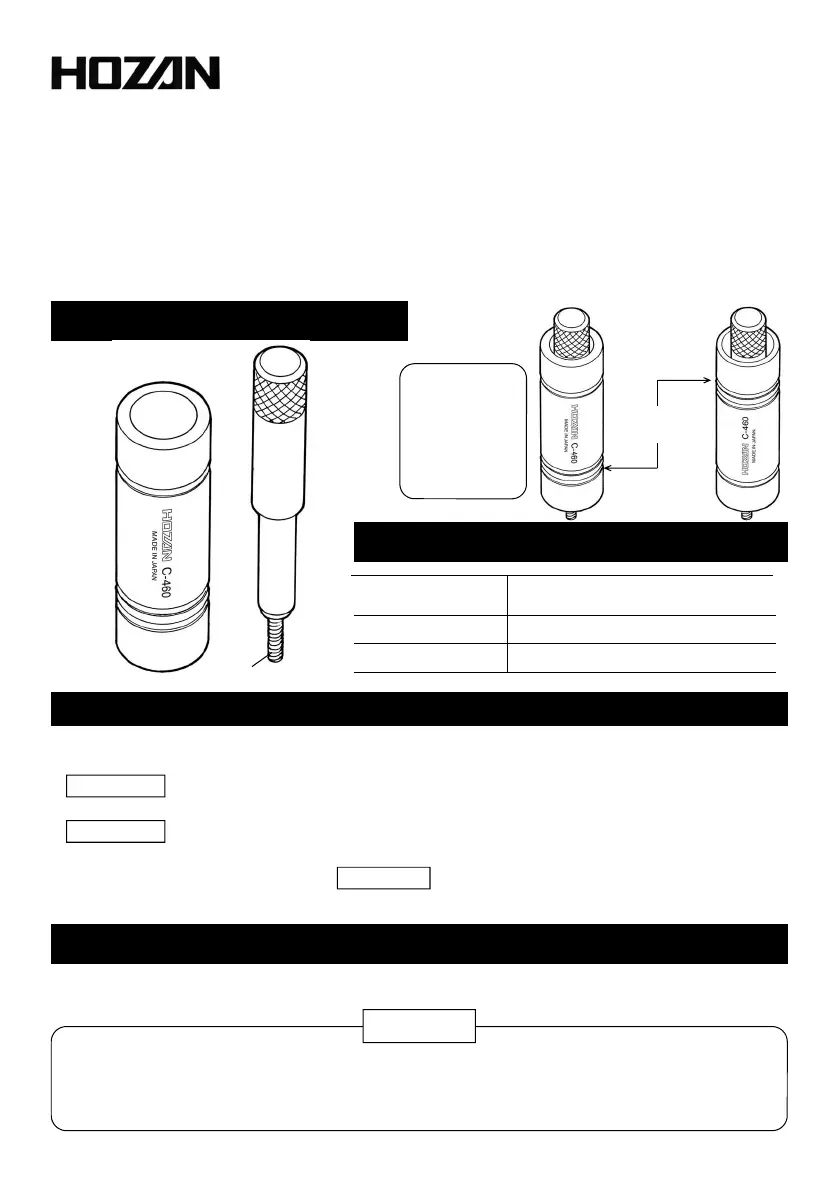

Identification of parts
Punch
Guide
barrel
Set screw
1-1/8” side
1” side
Insert the
appropriate
end of the
guide barrel
for the fork
column size.
Two
grooves
For 1-1/8" For 1"
Specifications
Applicable fork
column size
Dimensions
Weight
1"(25.4 mm), 1-1/8 "(28.6 mm)
35 mmφ×115 mm
520g
