Set screw
Set screw
Do not turn the handle after contacting with the
body. Otherwise, this could break the thread,
spoke and this tool.
Caution
If looseness is found on set screws as photo,
please tighten as necessary with the 2.5 mm
hex wrench.
Caution
4
5
6
7
8

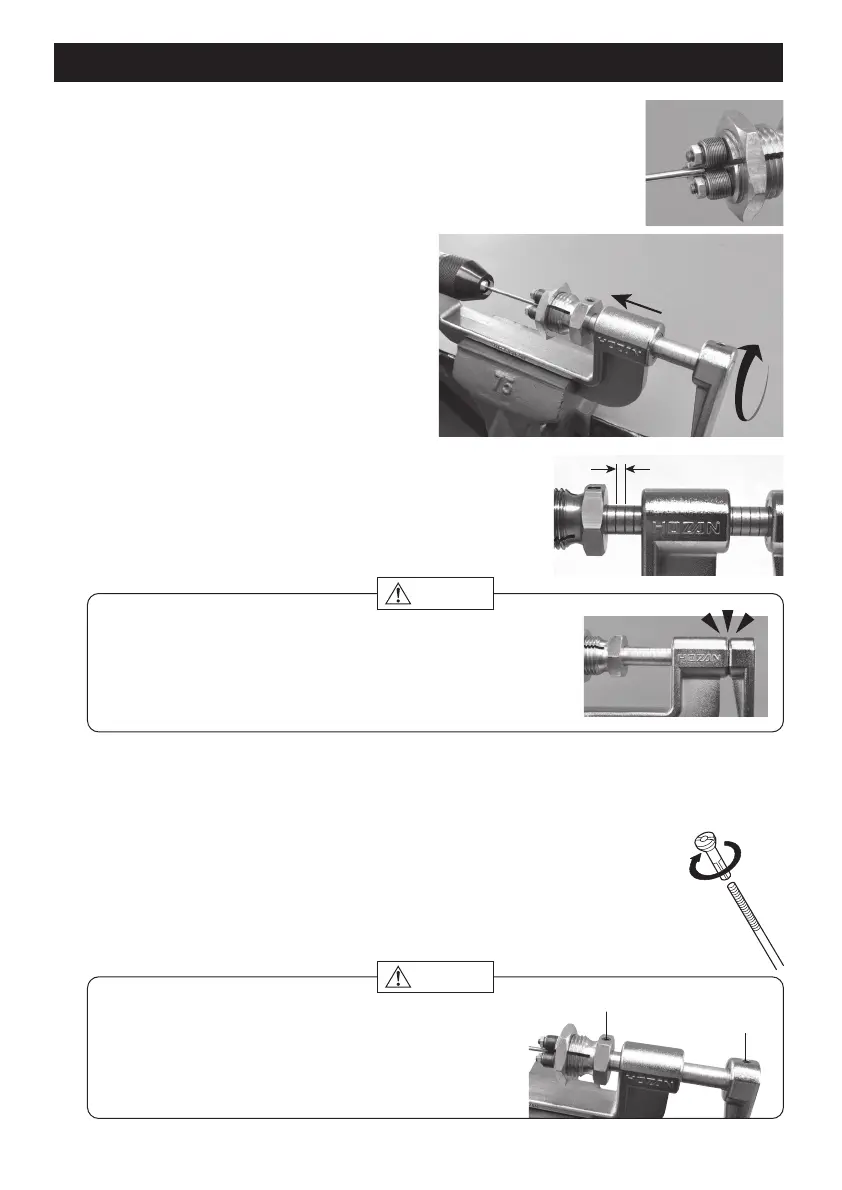

Operation
Slide the handle slightly toward the spoke so that the tip of
spoke contacts with the center of three rollers of the die
head.
Lubricate the rollers with cutting oil,
and then turn the handle clockwise
slowly while depressing slightly
against the spoke to make the thread.
When confirming the die head bites
the spoke, stop pressing but continue
to turn the handle clockwise until the
thread becomes a necessary length.
The shaft is notched at intervals of 3 mm.
Please utilize as the scale for thread length.
Inspect the processing result.
Insert the nipple to be used into the spoke. If you can not insert
the nipple smoothly, the die head condition must be adjusted.
Refer to ‘Die head adjustment’ on next pages.
When desired length of thread is made, turn the handle counterclockwise
to separate the die head from the spoke.
Turn the clamp lever counterclockwise and draw the spoke out.
While depressing
Turn
While depressing
Turn
3mm
To Next Page
