Clamping lever
Clamp
Die head
Set screw
Shaft
Handle
Set screw
Adjust nut
Roller set nut
Roller
Spoke insertion hole
C-702-13/14/15
C-702-22
SPOKE THREADING TOOL(#13)/(#14)/(#15)
SPOKE THREADING TOOL SET
INSTRUCTION MANUAL
Thank you for purchasing the HOZAN C-702-13/14/15 SPOKE THREADING TOOL,
C-702-22 SPOKE THREADING TOOL SET. With proper care and handling, this fine
instrument will provide years of trouble-free operation. Please read this entire instruction
manual carefully before attempting to place this instrument in service. Please keep this
instruction manual available for reference.
1
C-702-22
consists of the body
and the three die
heads.
Refer to the left table
for specifications.
Note:
Do not process different sized thread than specified on each spoke.

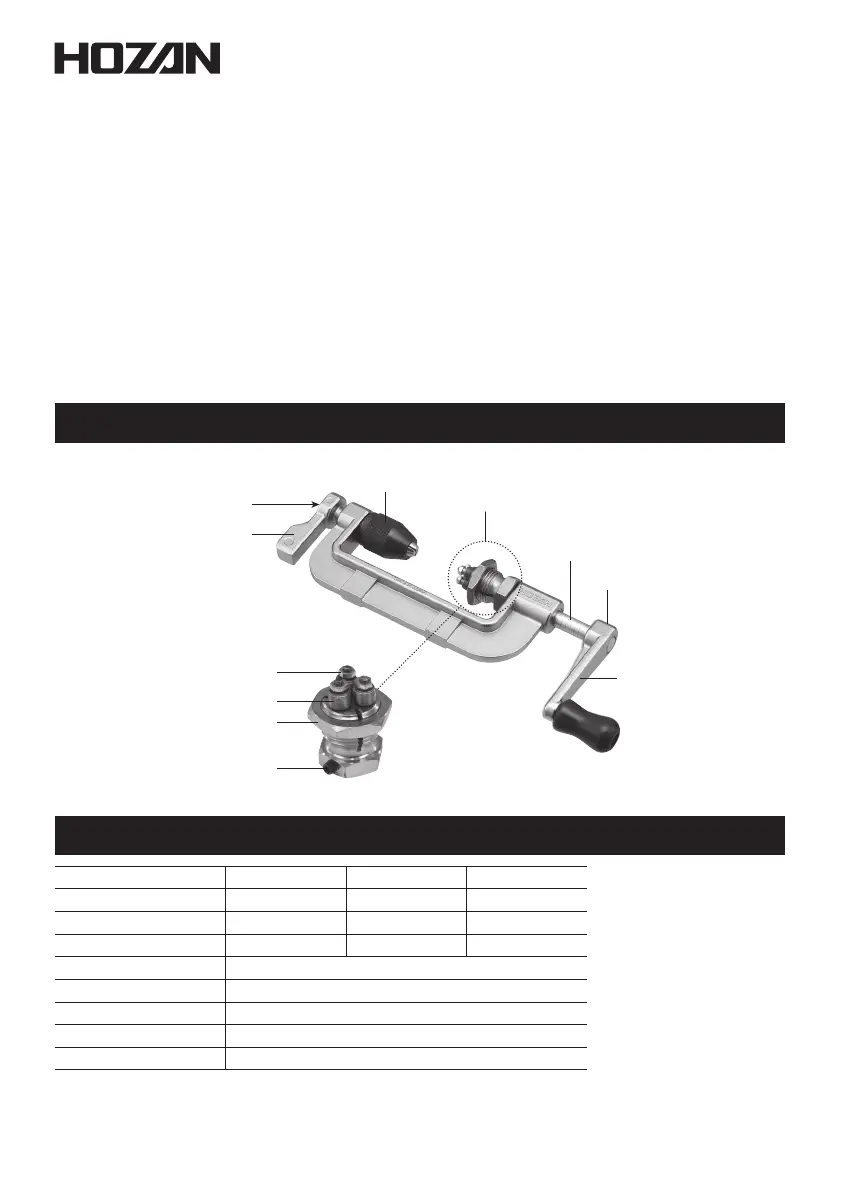

Identification of parts
Specifications
No.13 No.14
No.15
Round
Stainless steel / steel
Over 90 mm
400 g
230(W) x 85(H) x 31(D) mm
Product number
Appurtenance die head
Thread size
Applicable spoke
Applicable spoke shape
Applicable spoke length
Applicable spoke material
Dimensions
Weight
C-702-13 C-702-14 C-702-15
C-707-13
C-707-14
C-707-15
BC2.3 (56TPI) BC2.0 (56TPI)
BC1.8 (56TPI)
