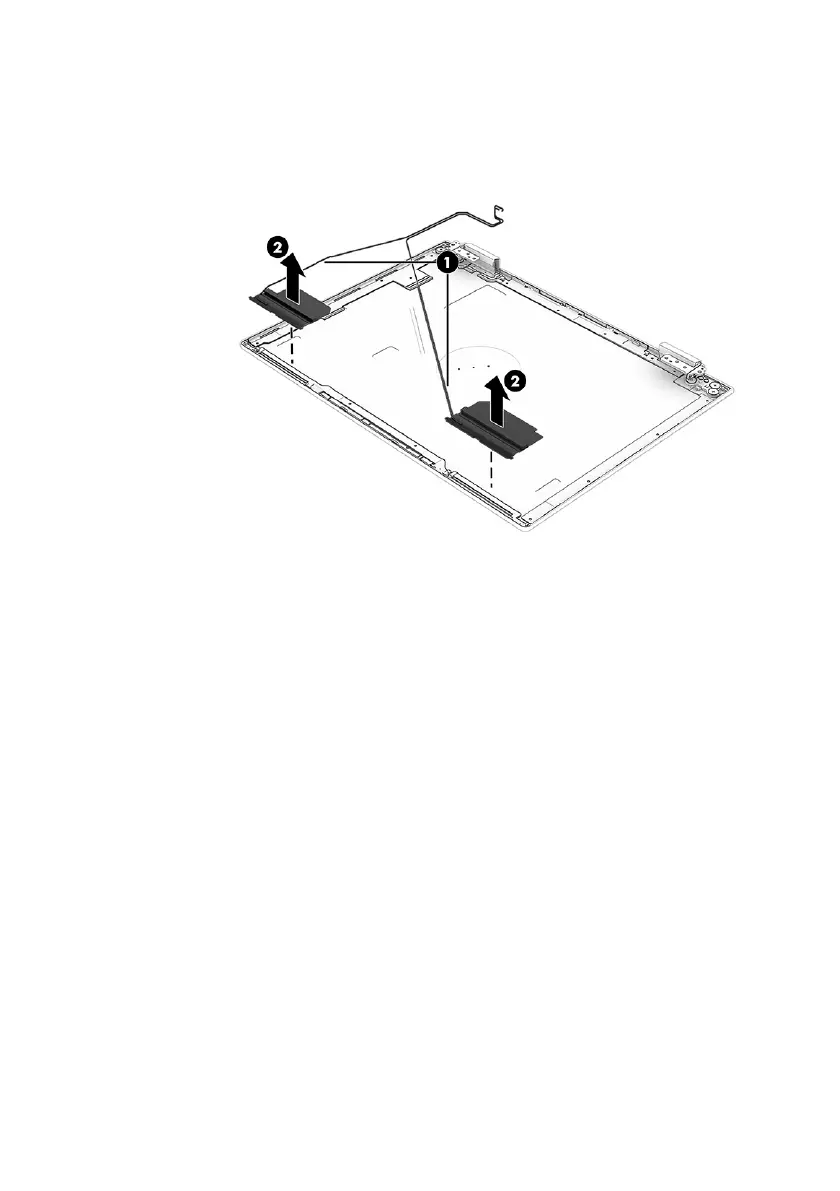

b. Peel the wireless antennas o the display rear cover (2). The wireless
antennas are available using spare part number N15677-001 for OLED
models and N17069-001 for LCD models.
c. When installing a display, insert the antenna cables into the right hinge (1),
route the cables through the clips in the display back cover (2), route the
cables under the Mylar above the hinge (3), route the cables together until the
Display assembly 77
