HP 15 TouchSmart Notebook PC

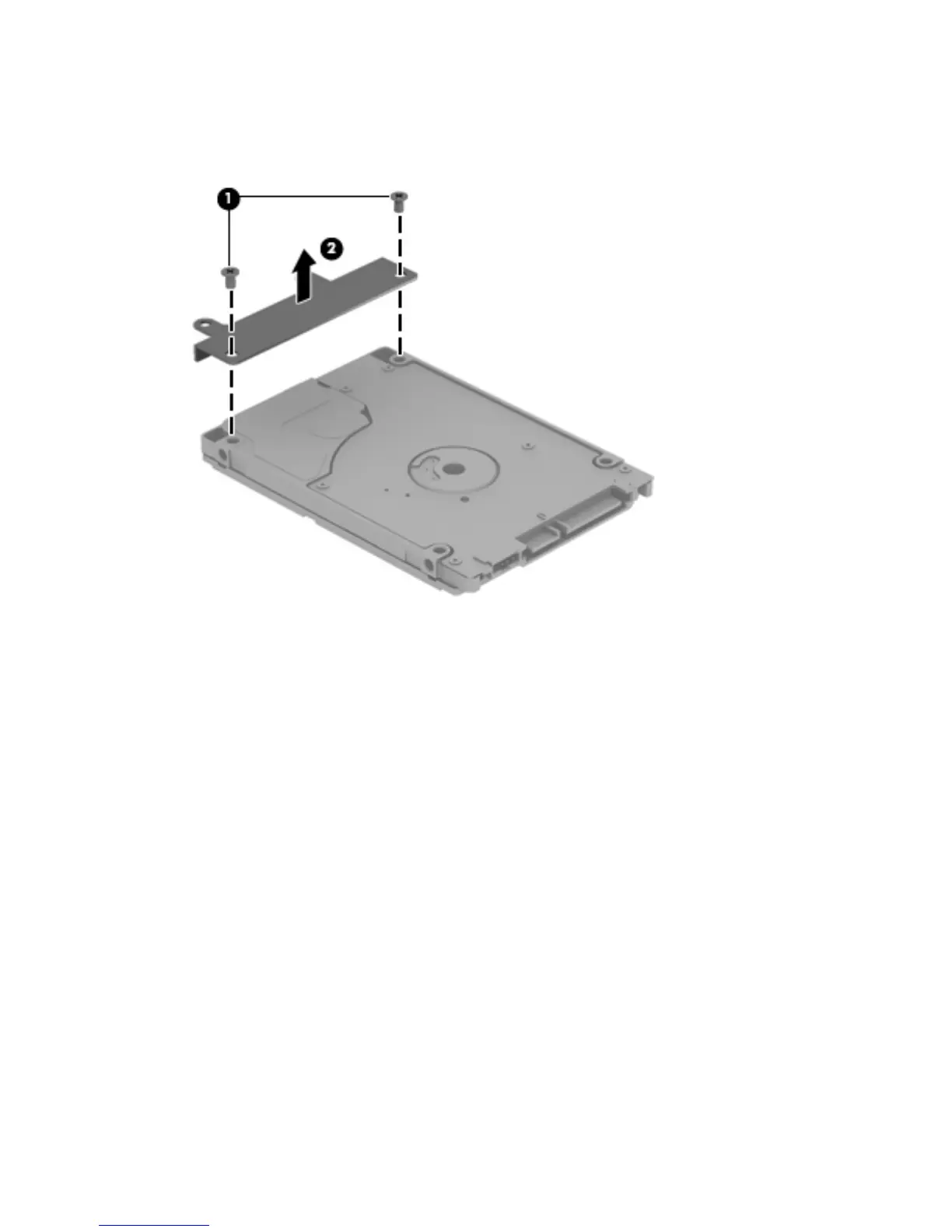

4. To remove the hard drive bracket, remove the two Phillips PM3.0×4.0 screws (1) that secure the bracket
to the hard drive.
5. Remove the hard drive bracket from the hard drive (2).
Reverse this procedure to reassemble and install the hard drive.
54 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
