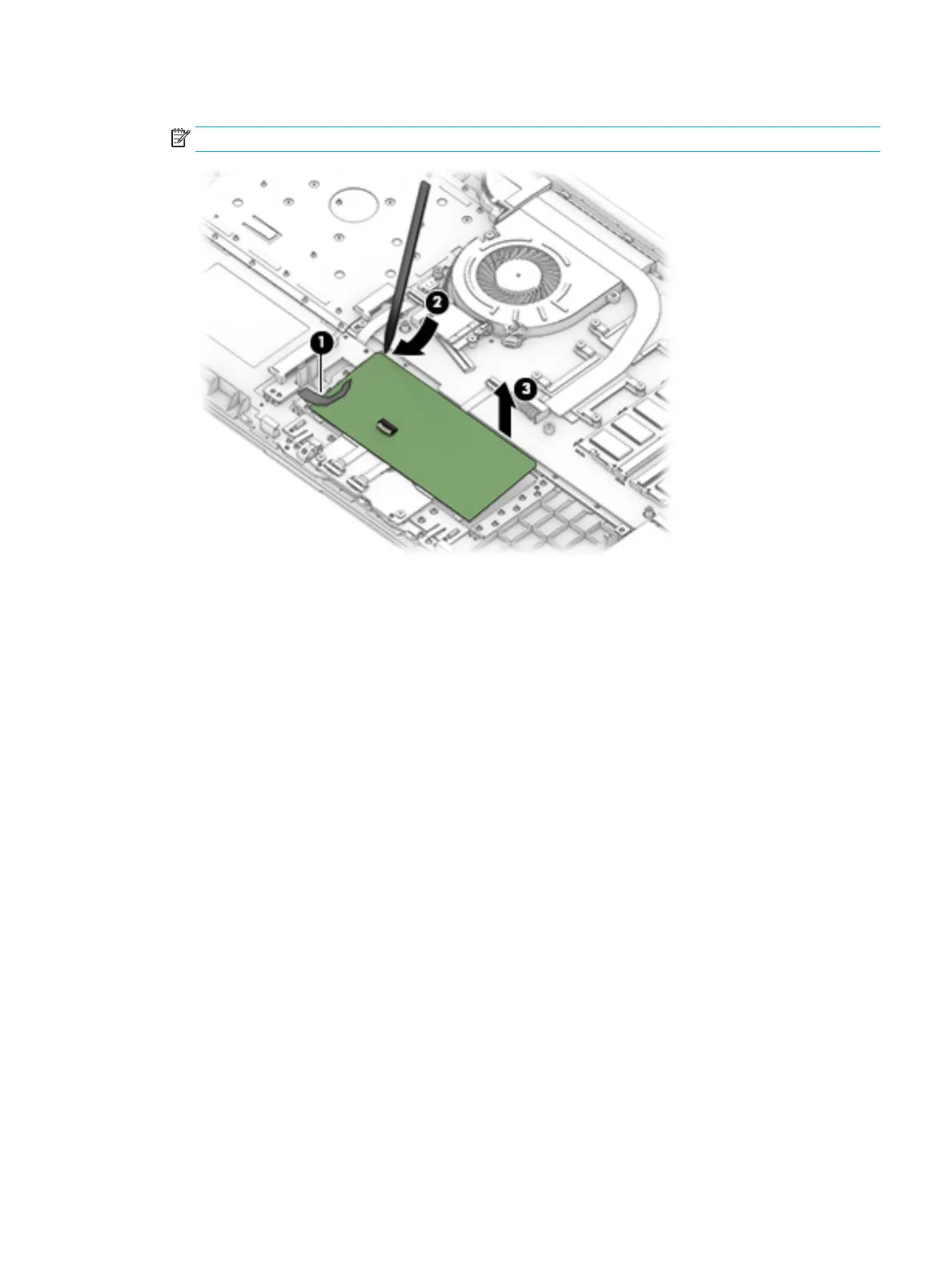

4. Working around each edge, pry the TouchPad module loose, and then remove it from the computer (3).

NOTE: The TouchPad module may be very tight and dicult to remove.

Reverse this procedure to install the TouchPad module.

Component replacement procedures 55
