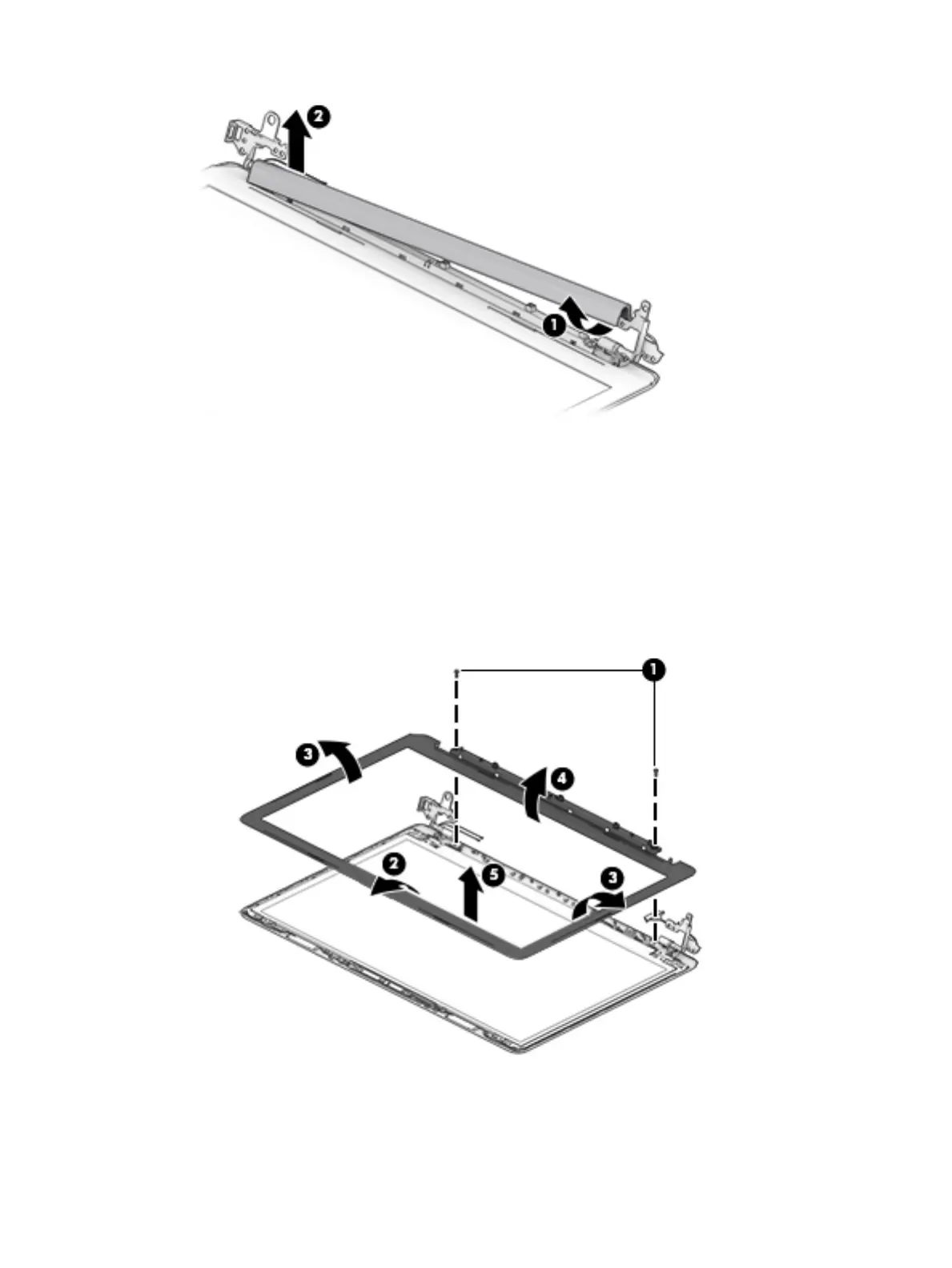

When replacing the hinge cover, make sure the hinges rotate downward as far as they can go. Align the
cover, and then start from above and rotate the cover downward onto the hinges. Make sure the clips
snap into place along the bottom of the display cover.
2. If it is necessary to replace the display bezel:
a. Remove the two Phillips M2.0×3.0 screws (1), ex the top (2) of the bezel, the inside edges of the
left and right sides (3), and then the bottom (4) of the bezel until it disengages from the display
enclosure.
b. Remove the bezel (5).
The display bezel is available using spare part number L20421-001.
3. If it is necessary to replace the camera/microphone module:
a. Detach the module (1) from the display back cover. (The module is attached with double-
sided adhesive.)
Component replacement procedures 63
