L20437-001: Sparkling black
L20434-001: Natural silver
L23062-001: Natural silver (narrow bezel models)
L20435-001: Pale gold
L20440-001: Scarlet red
L20436-001: Twilight blue
L20438-001: Smoke gray
L23063-001: Smoke gray (narrow bezel models)
L20432-001: Snow white (full-featured models)
L21307-001: Snow white (defeatured models)
L20441-001: Maroon burgundy
L28509-001: Iridescent ceramic white
L28508-001: Iridescent pale rose gold
Reverse these procedures to reassemble and install the display assembly components.

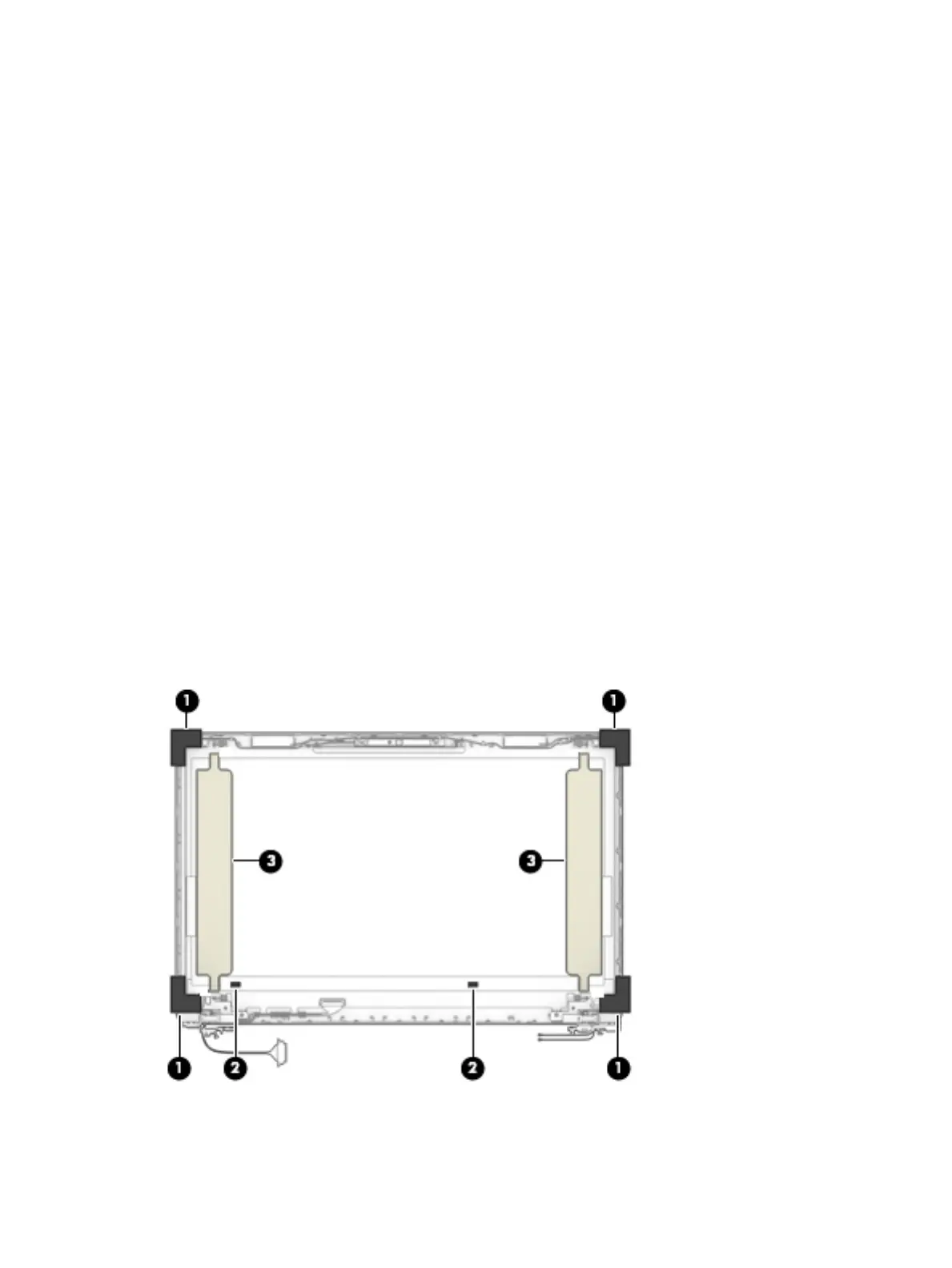

When reassembling an FHD display assembly, be sure the install the following parts into the display enclosure
from the Display Miscellaneous Kit, spare part number L23065-001 and display panel stretchable adhesive
tape, spare part number L29080-001.
(1): Four positioning corner pieces
(2): Two gaskets
(3): Display panel stretchable adhesive tape
Component replacement procedures 69
