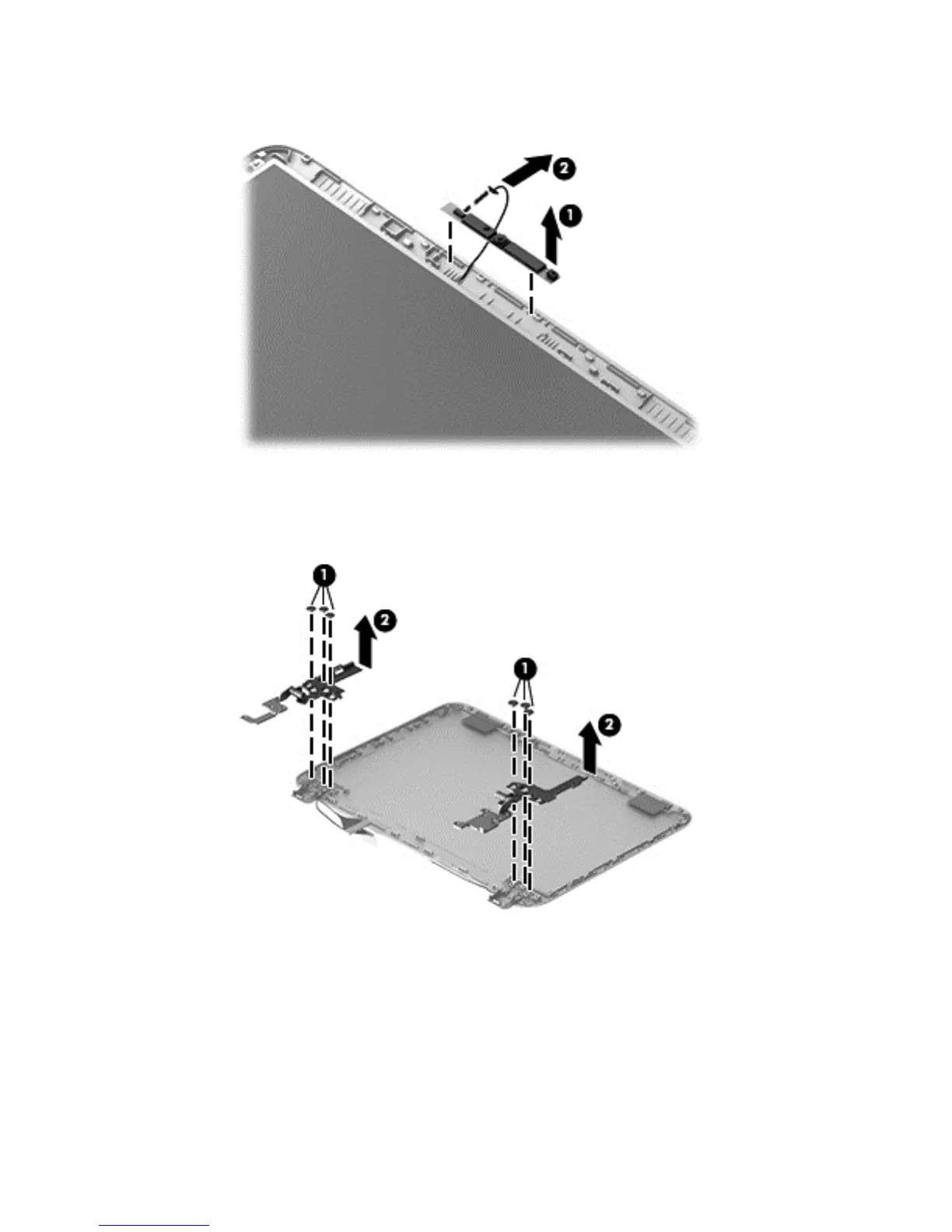

b. Disconnect the webcam/microphone module cable (2) from the webcam/microphone
module. (The webcam/microphone module cable is part of the display panel cable.)
2. If it is necessary to replace the hinges:
a. Remove the six bottom screws (1) from the display hinges.
b. Remove the hinges (2) from the display enclosure.
3. If it is necessary to replace the display panel cable:
a. Release the microphone (1).
Component replacement procedures 57
