HP 215 G1 - Page 86

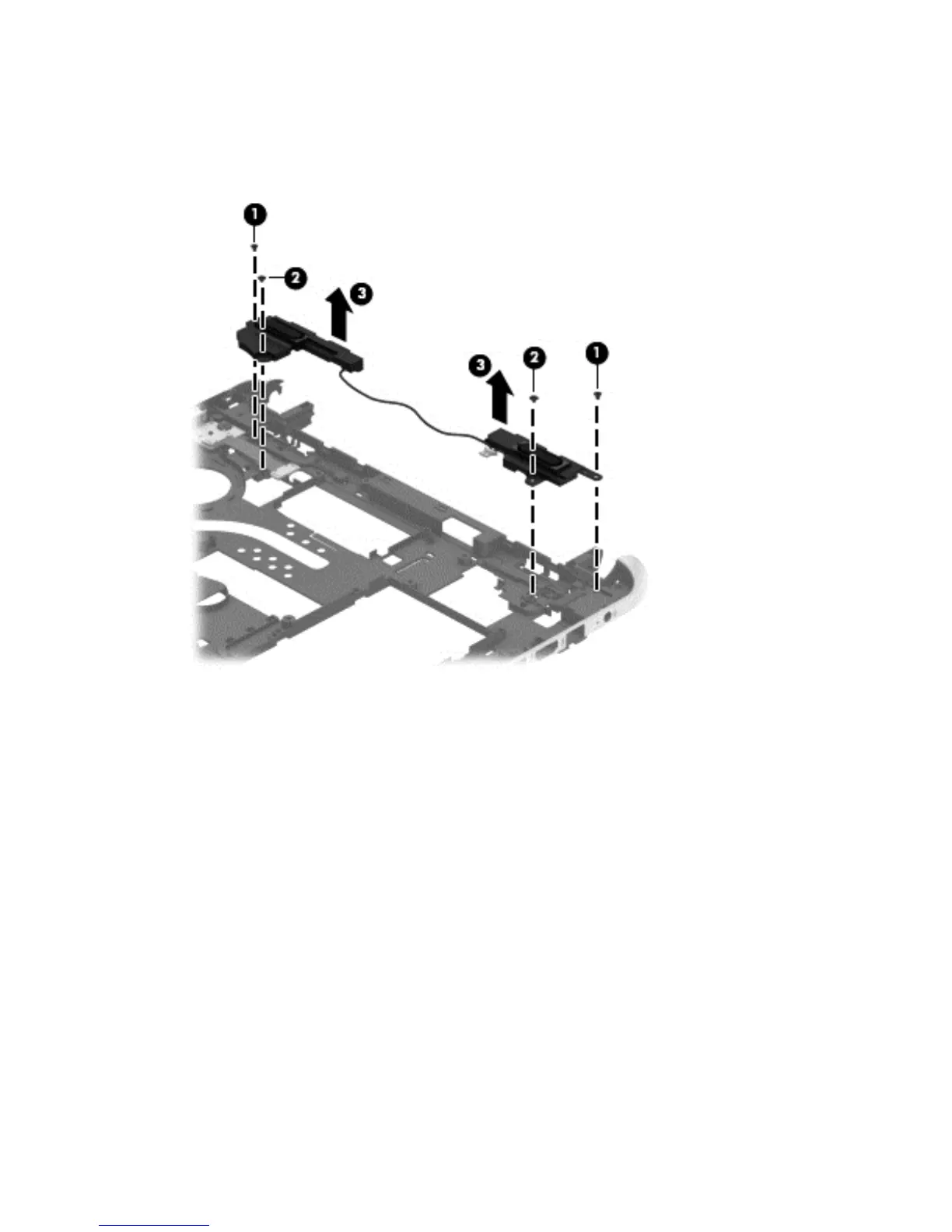

Remove the speakers:
1. Remove the two Phillips PM2.0×3.75 screws (1) and the two Phillips PM2.0×2.75 screws (2) that
secure the speakers to the bottom cover.
2. Remove the speakers (3).
Reverse this procedure to install the speakers.
76 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
