Remove the system board:

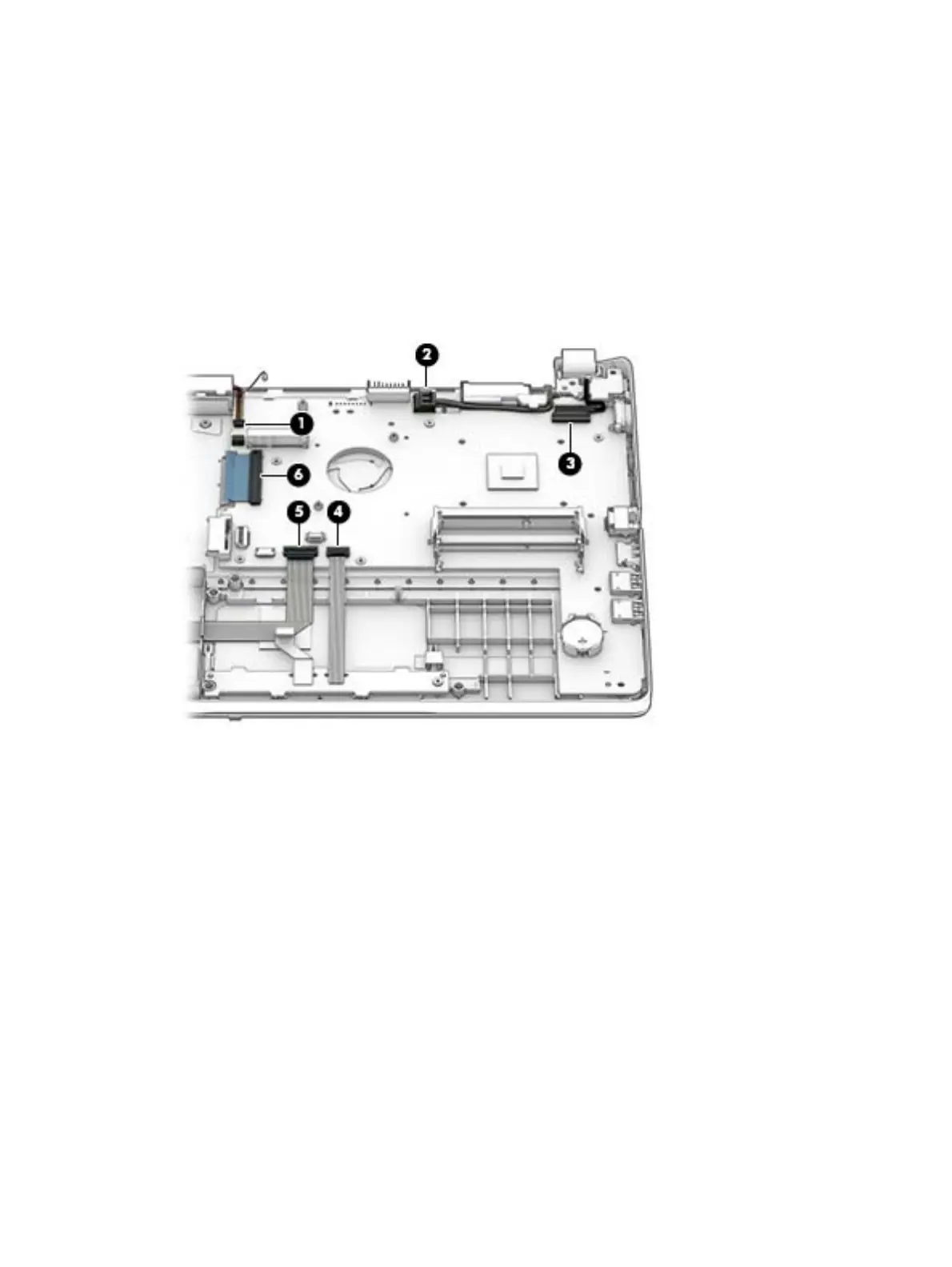

1. Disconnect the following cables from the system board:
(1): Speaker cable
(2): Power connector cable
(3): Display cable
(4): Touchpad cable
(5): Audio/USB board cable
(6): Keyboard cable
2. Remove the cable from atop the right speaker, and then lift the speaker aside to gain access to the
screw underneath.
3. Remove the five Phillips PM2.5×3.0 screws that secure the system board to the base enclosure (1).
4. Lift up on the left side of the system board (2) until it rests at an angle.
38 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
