Removal and replacement procedures
Maintenance and Service Guide 4–33

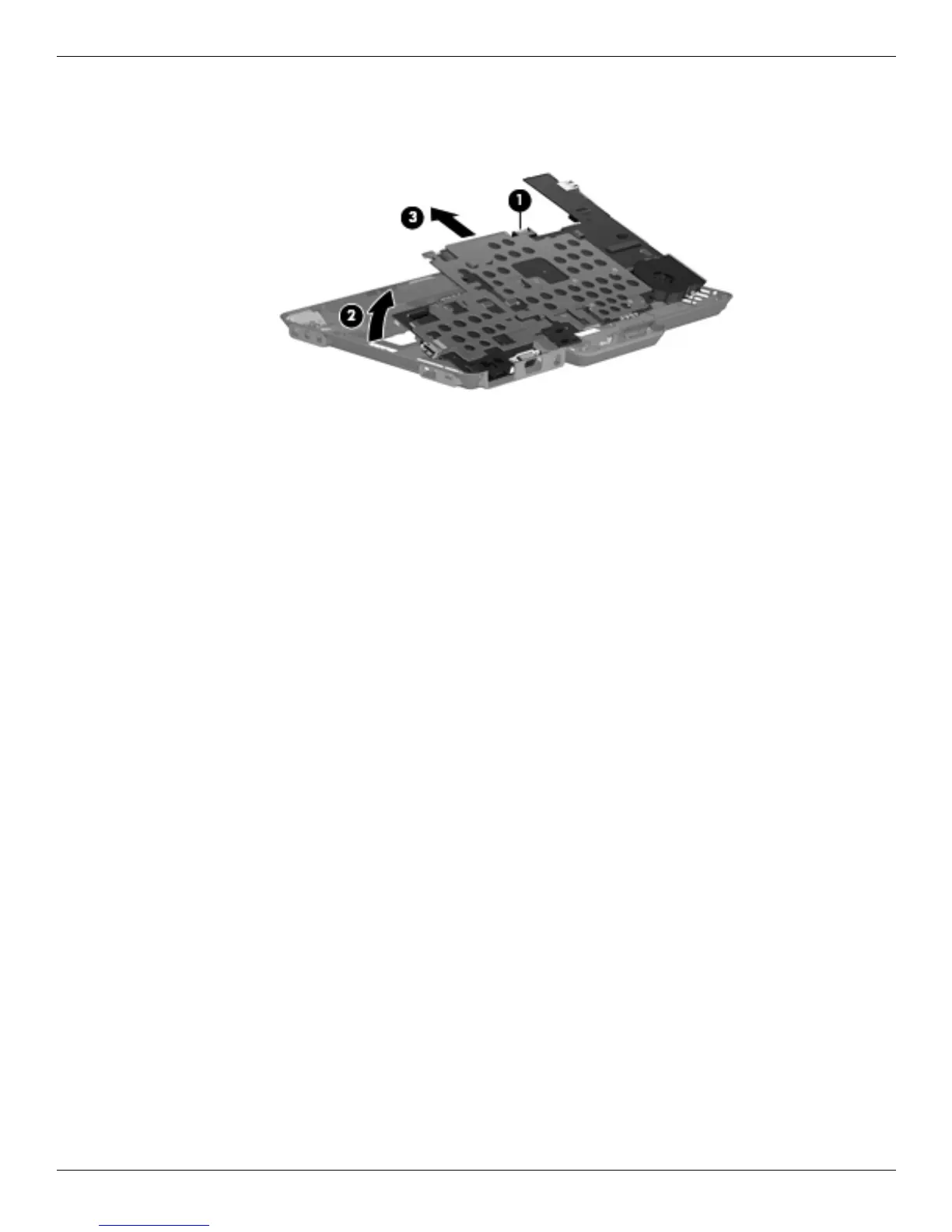

9. Position the computer with the rear panel toward you.
10. Use the battery connector to lift the front edge of the system board until it rests at an angle.
11. Remove the system board by sliding it away from the base enclosure at an angle.
Reverse this procedure to install the system board.
