3.

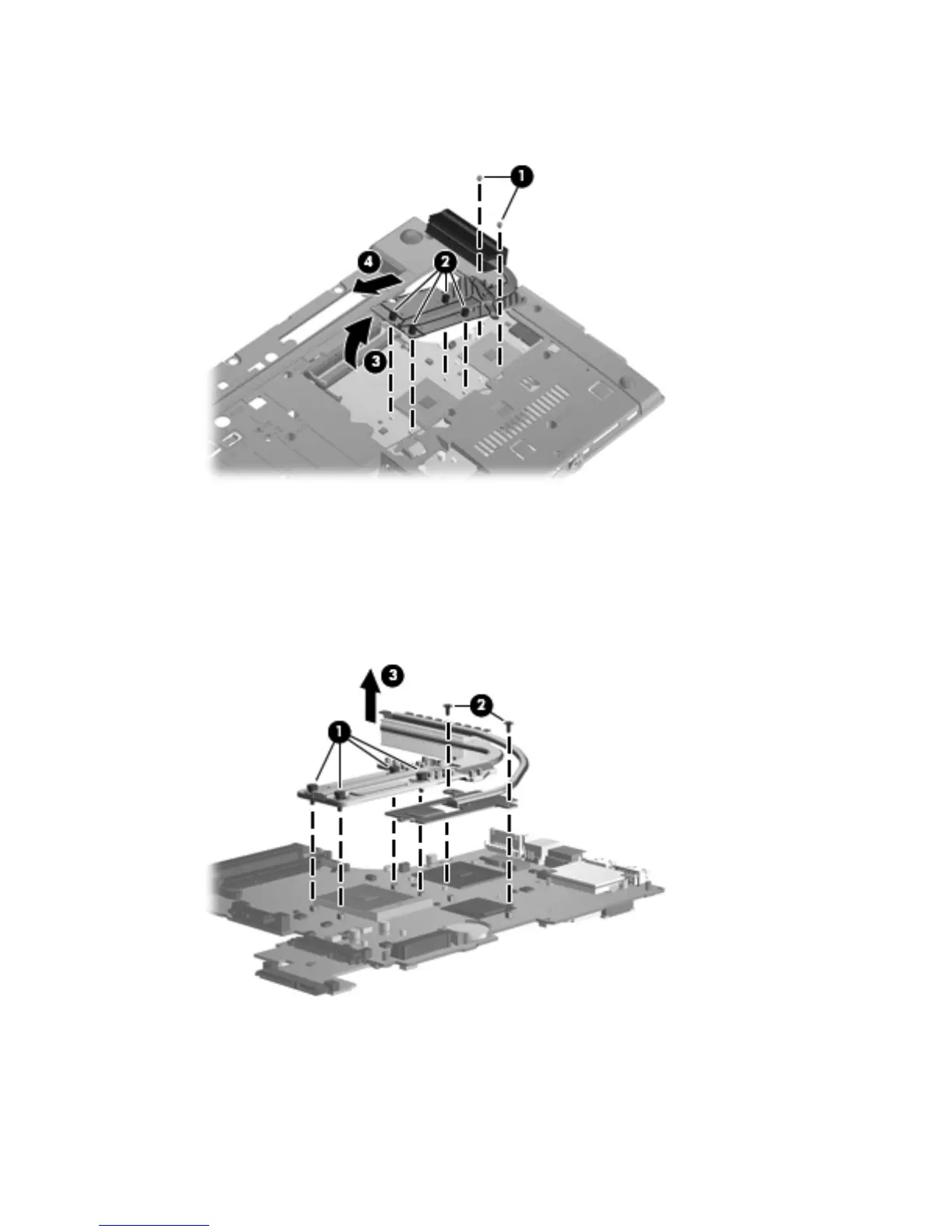

Raise the end of the heat sink (3) to free it from the system board components and then remove
the heat sink (4) from the system board.
Remove the heat sink on computers with discrete graphics subsystems:
1.
Position the computer right-side up with the front facing you.
2.
Following the numbered sequence stamped into the heat sink, loosen the captive screws (1) and
(2) around the processor.
3. Lift the heat sink (3) from the system board.
Following the numbered sequence stamped into the heat sink, reverse the above procedure to install the
heat sink.
Component replacement procedures
67
