Model
3312A
determine
the
voltage
at
the
base
of
U403(e)
and
in
turn
at
the
base
of
U403(c).
When
the
voltage
from
the
main
generator
(via
the
BUFFER
AMPLIFIER)
appearing
at
the
base
of
U403(b)
equals
that
at
the
base
of
U403(c),
both
U403(a)
and
(b)
turn
on
and
U403(c)
turns
off.
CR408
forward
biases
and
clamps
the
integrator
output
to
the
voltage
at
the
base
of
U403(c)
(which
was
originally
determined
by
TRIGGER
PHASE
POT,
RI16).
With
the
integrator
output
held
at
that
level
the
comparator
does
not
switch
the
current
sources
resulting
in
a
de
level
at
the
square
wave
output.
When
the
burst
control
goes
low
again
the
voltage
on
the
integrating
capacitor
will
determine
the
phase
at
which
the
burst
restarts.
Thus,
R615
controls
the
start/stop
phase.
"
443.
Multiple
Cycle
Burst
Mode
(Figure
7-3).
The
main
generator
is
gated
off
when
the
burst
logic
sees
a
positive
square
wave
transition
after
the
burst
input
to
U402
pin
2
goes
high.
If
the
main
square
wave
is
already
high,
the
main
generator
will
not
be
gated
off
until
the
main
square
wave
first
goes
low
then
returns
high.
The
waveforms
in
Figure
4-9
should
serve
to
clarify
the
operation
of
the
burst
logic.
4-44.
Single
Cycle
Burst
Mode.
In
single
cycle
operation
(Figure
7-3),
U402A
pin
2
is
driven
from
U401,
a
monostable
one-shot
multivibrator.
After
being
inverted
the
output
of
U402
is
normally
high.
Triggering
of
U401
causes
U402A
pin
2
to
go
low
for
40
nanoseconds,
after
which
it
returns
to
its
quiescent
high
state.
This
40
nanosecond
low
pulse
is
sufficient
to
start
the
main
generator.
Since
pin
2
MAIN
SQUARE
TP4
main
ZN
TPS
BURST
CONTROL
U40212)
INVERTED
ONE
~
SHOT
OUTPUT
U402(2)
SINGLE
CYCLE
TRIGGER
MODE
Section
[V
FROM
BURST
CONTROL
OFREE
RUN
TRIGGER
PHASE
&
mi7
V
FROM
BUFFER
AMP
FN
3312
—B
-
4038
PHASE
POT

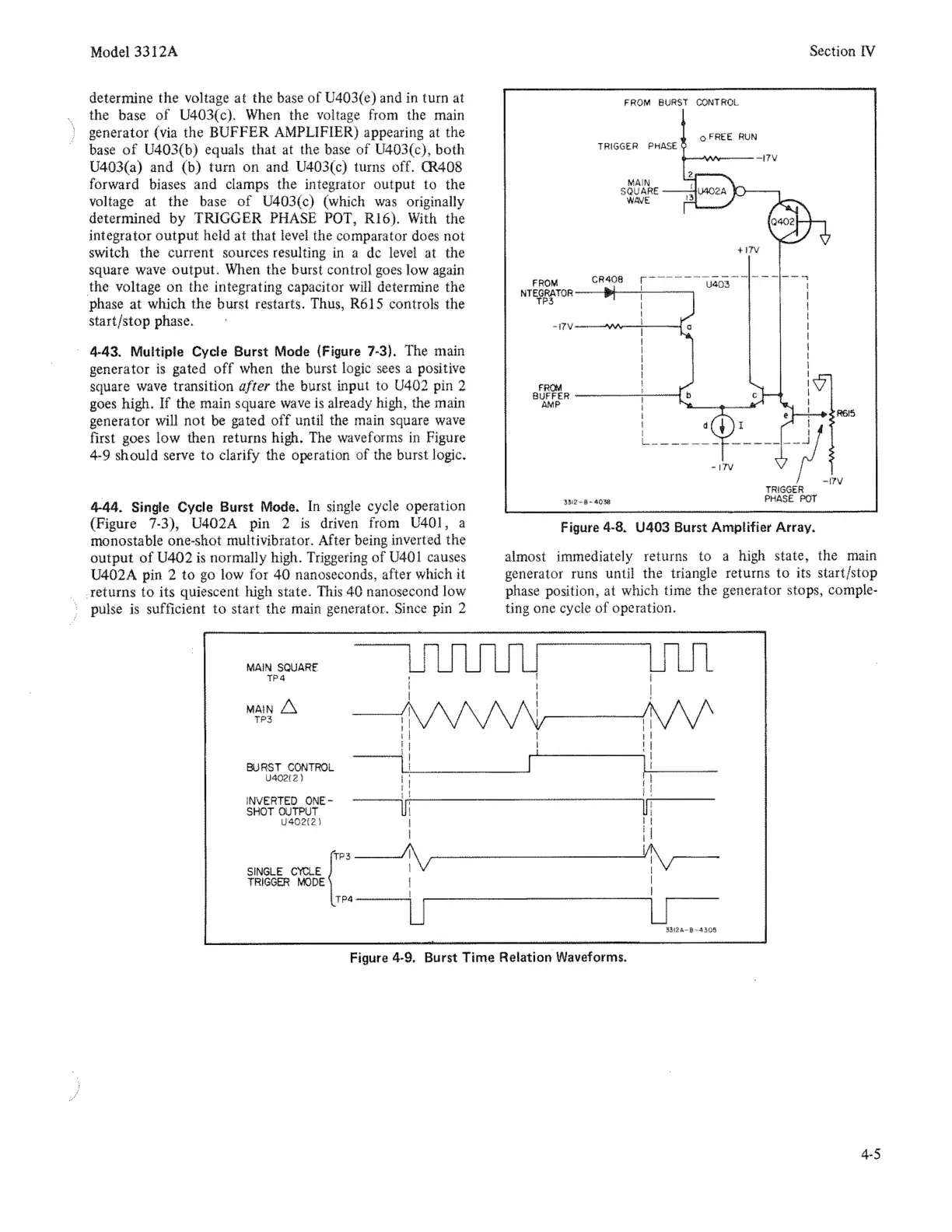

Figure
4-8.
U403
Burst
Amplifier
Array,
almost
immediately
returns
to
a
high
state,
the
main
generator
runs
until
the
triangle
returns
to
its
start/stop
phase
position,
at
which
time
the
generator
stops,
comple-
ting
one
cycle
of
operation.
S3124-B-4305
Figure
4-9.
Burst
Time
Relation
Waveforms.
