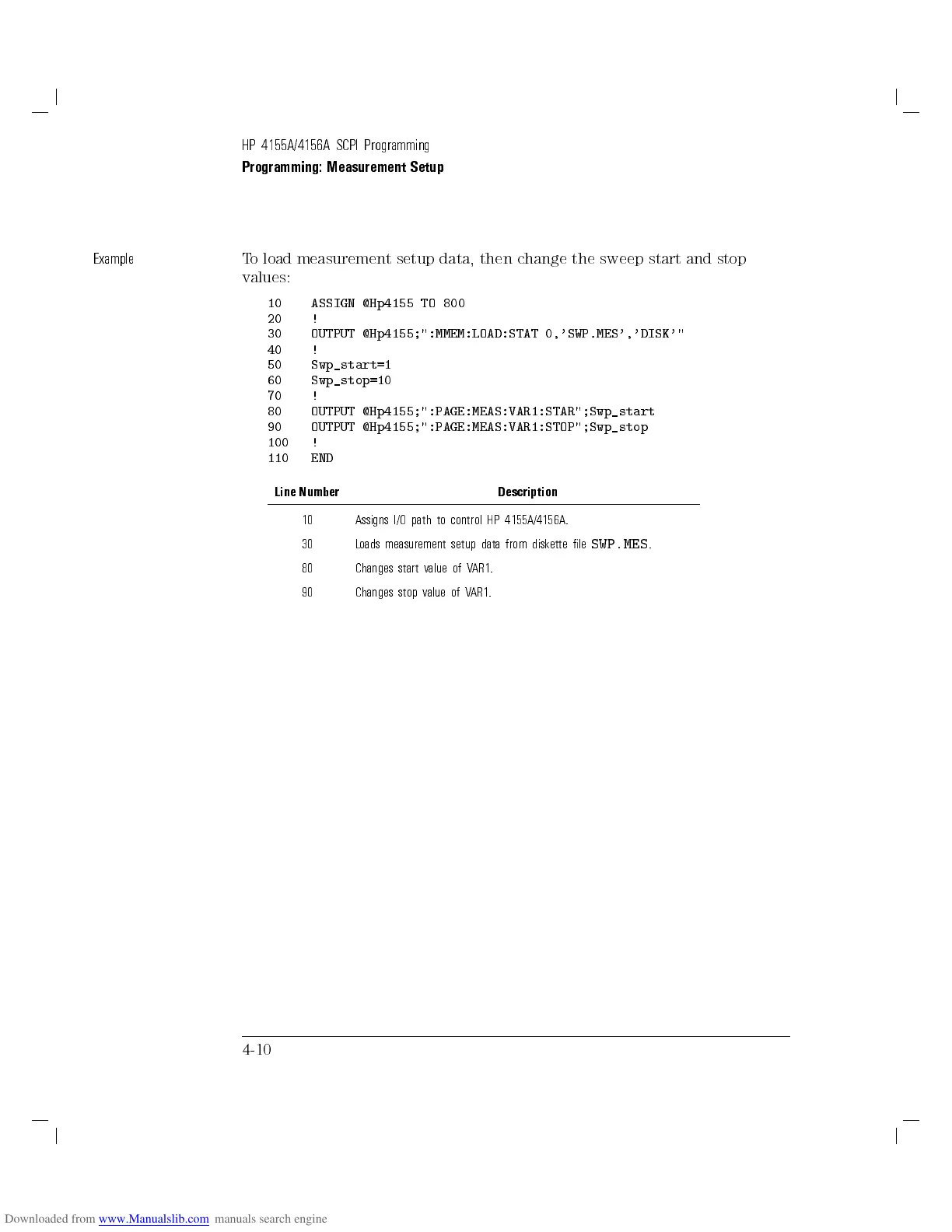

HP 4155A/4156A SCPI Programming

Programming: Measurement Setup

Example

To load measurement setup data, then change the sweep start and stop

values:

10 ASSIGN @Hp4155 TO 800

20 !

30 OUTPUT @Hp4155;":MMEM:LOAD:STAT 0,'SWP.MES','DISK'"

40 !

50 Swp_start=1

60 Swp_stop=10

70 !

80 OUTPUT @Hp4155;":PAGE:MEAS:VAR1:STAR";Swp_start

90 OUTPUT @Hp4155;":PAGE:MEAS:VAR1:STOP";Swp_stop

100 !

110 END

Line Number Description

10 Assigns I/O path to control HP 4155A/4156A.

30 Loads measurement setup data from diskette le

SWP.MES

80 Changes start value of VAR1.

90 Changes stop value of VAR1.

4-10
