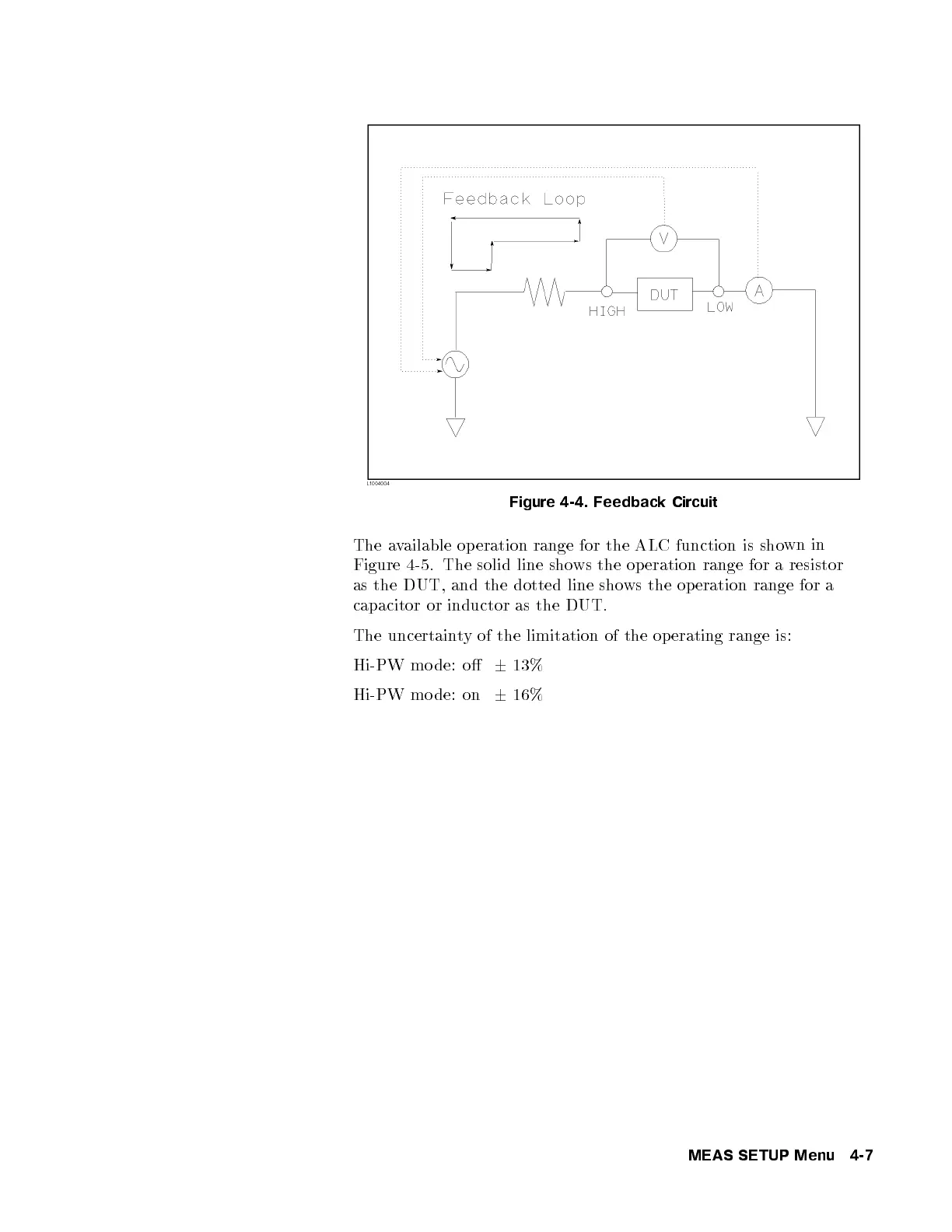

Figure 4-4. Feedback Circuit
The available op eration range for the ALC function is sho
wn in
Figure 4-5. The solid line shows the op eration range for a resistor
as the DUT, and the dotted line shows the op eration range for a
capacitor or inductor as the DUT.
The uncertainty of the limitation of the op erating range is:
Hi-PW mo de: o
6
13%
Hi-PW mo de: on
6
16%
