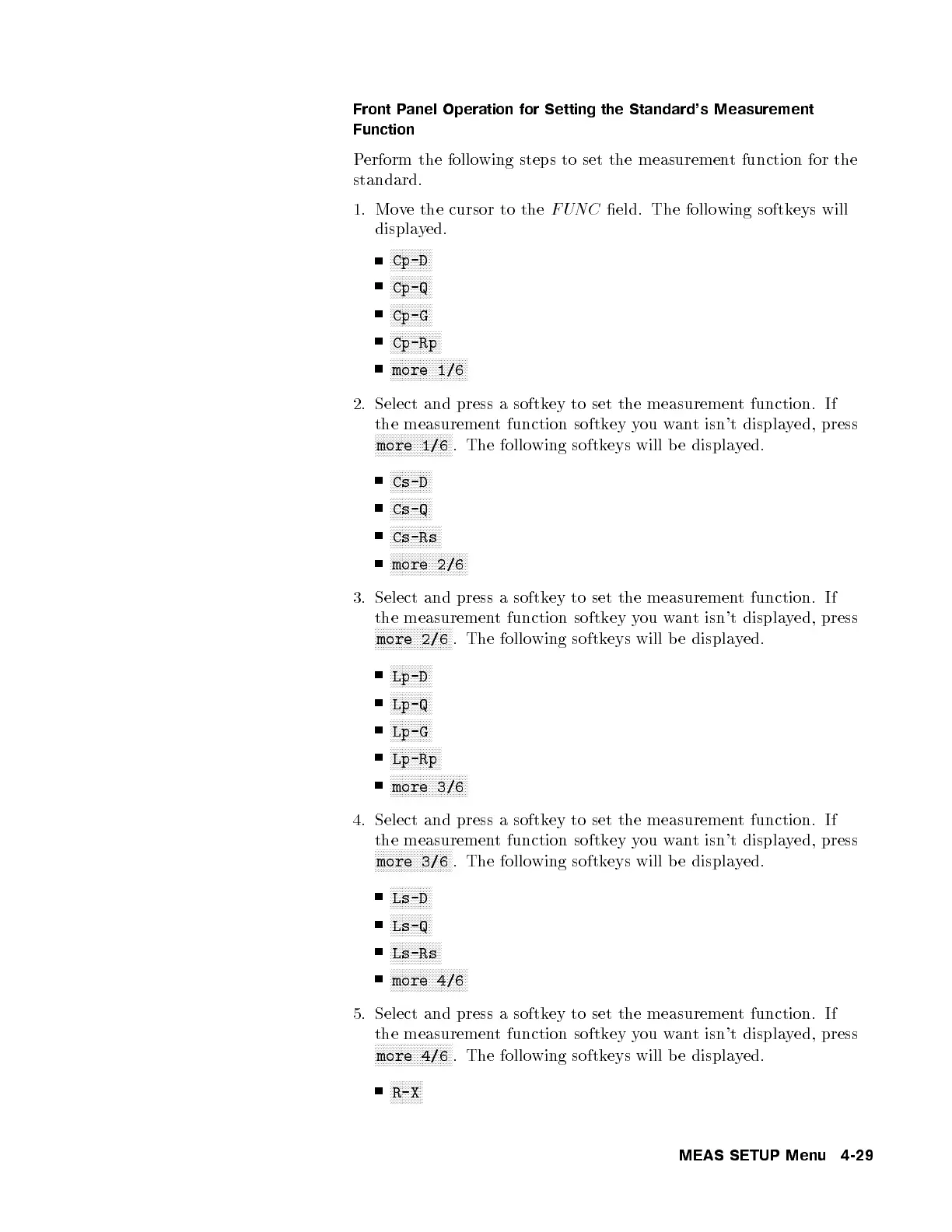

Front Panel Operation for Setting the Standard's Measurement
Function
Perform the following steps to set the measurement function for the
standard.
1. Move the cursor to the FUNC eld. The following softkeys will
displayed.
NNNNNNNNNNNNNN
Cp-D
NNNNNNNNNNNNNN
Cp-Q
NNNNNNNNNNNNNN
Cp-G
NNNNNNNNNNNNNNNNN
Cp-Rp
NNNNNNNNNNNNNNNNNNNNNNNNNN
more 1/6
2. Select and press a softkey to set the measurement function. If
the measurement function softkey you want isn't displayed, press
NNNNNNNNNNNNNNNNNNNNNNNNNN
more 1/6 . The follo wing softkeys will be displayed.
NNNNNNNNNNNNNN
Cs-D
NNNNNNNNNNNNNN
Cs-Q
NNNNNNNNNNNNNNNNN
Cs-Rs
NNNNNNNNNNNNNNNNNNNNNNNNNN
more 2/6
3. Select and press a softkey to set the measuremen
t function. If
the measurement function softkey you want isn't displayed, press
NNNNNNNNNNNNNNNNNNNNNNNNNN
more 2/6 . The follo wing softkeys will be displa
yed.
NNNNNNNNNNNNNN
Lp-D
NNNNNNNNNNNNNN
Lp-Q
NNNNNNNNNNNNNN
Lp-G
NNNNNNNNNNNNNNNNN
Lp-Rp
NNNNNNNNNNNNNNNNNNNNNNNNNN
more 3/6
4. Select and press a softkey to set the measurement function. If
the measurement function softkey you want isn't displayed, press
NNNNNNNNNNNNNNNNNNNNNNNNNN
more 3/6 . The follo wing softkeys will be displa
yed.
NNNNNNNNNNNNNN
Ls-D
NNNNNNNNNNNNNN
Ls-Q
NNNNNNNNNNNNNNNNN
Ls-Rs
NNNNNNNNNNNNNNNNNNNNNNNNNN
more 4/6
5. Select and press a softkey to set the measurement function. If
the measurement function softkey you want isn't displayed, press
NNNNNNNNNNNNNNNNNNNNNNNNNN
more 4/6 . The follo wing softkeys will be displa
yed.
NNNNNNNNNNN
R-X
MEAS SETUP Menu 4-29
