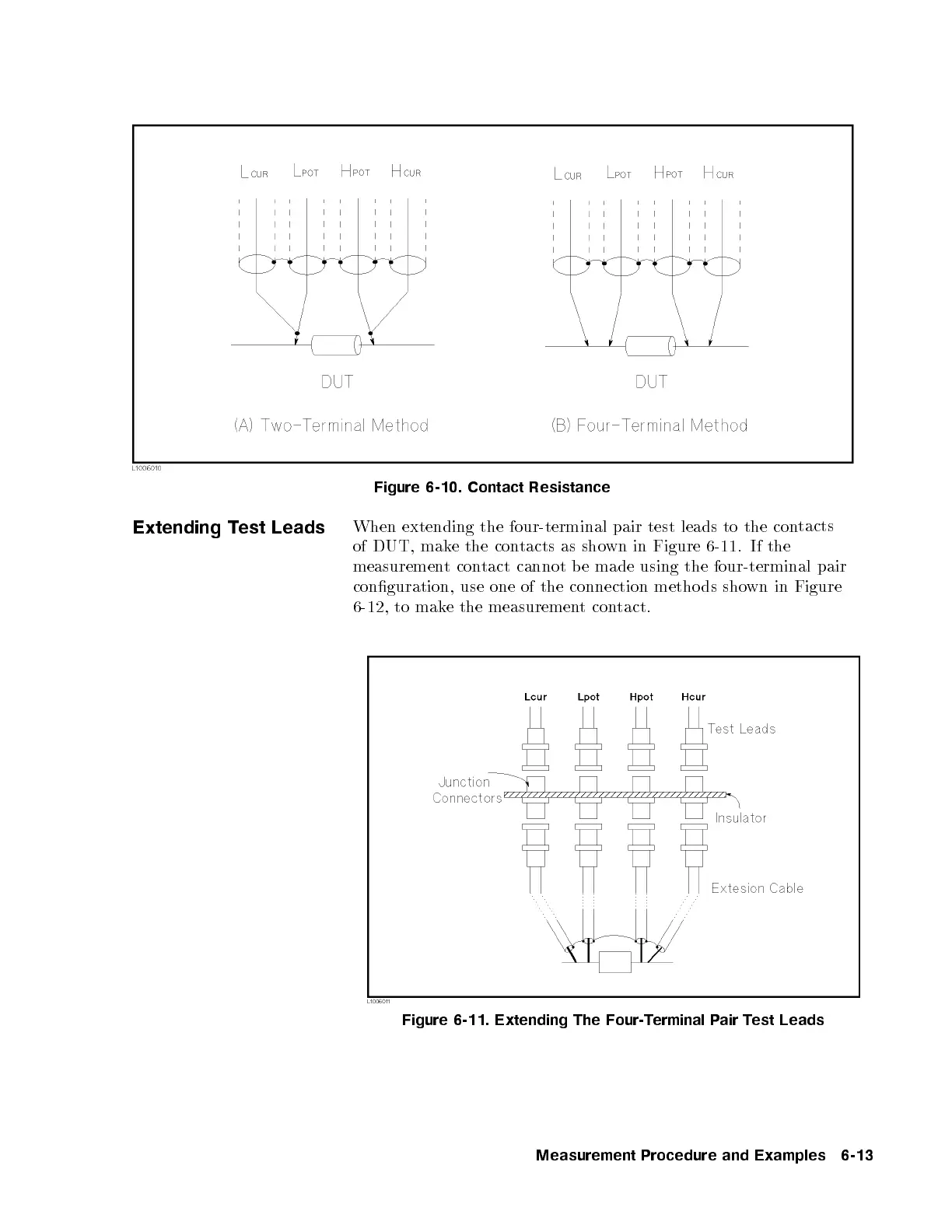

Figure 6-10. Contact Resistance
Extending Test Leads
When extending the four-terminal pair test leads to the con
tacts
of DUT, make the contacts as shown in Figure 6-11. If the
measurement contact cannot be made using the four-terminal pair
conguration, use one of the connection methods sho
wn in Figure
6-12, to make the measurement contact.
Figure 6-11. Extending The Four-Terminal Pair Test Leads
Measurement Procedure and Examples 6-13
