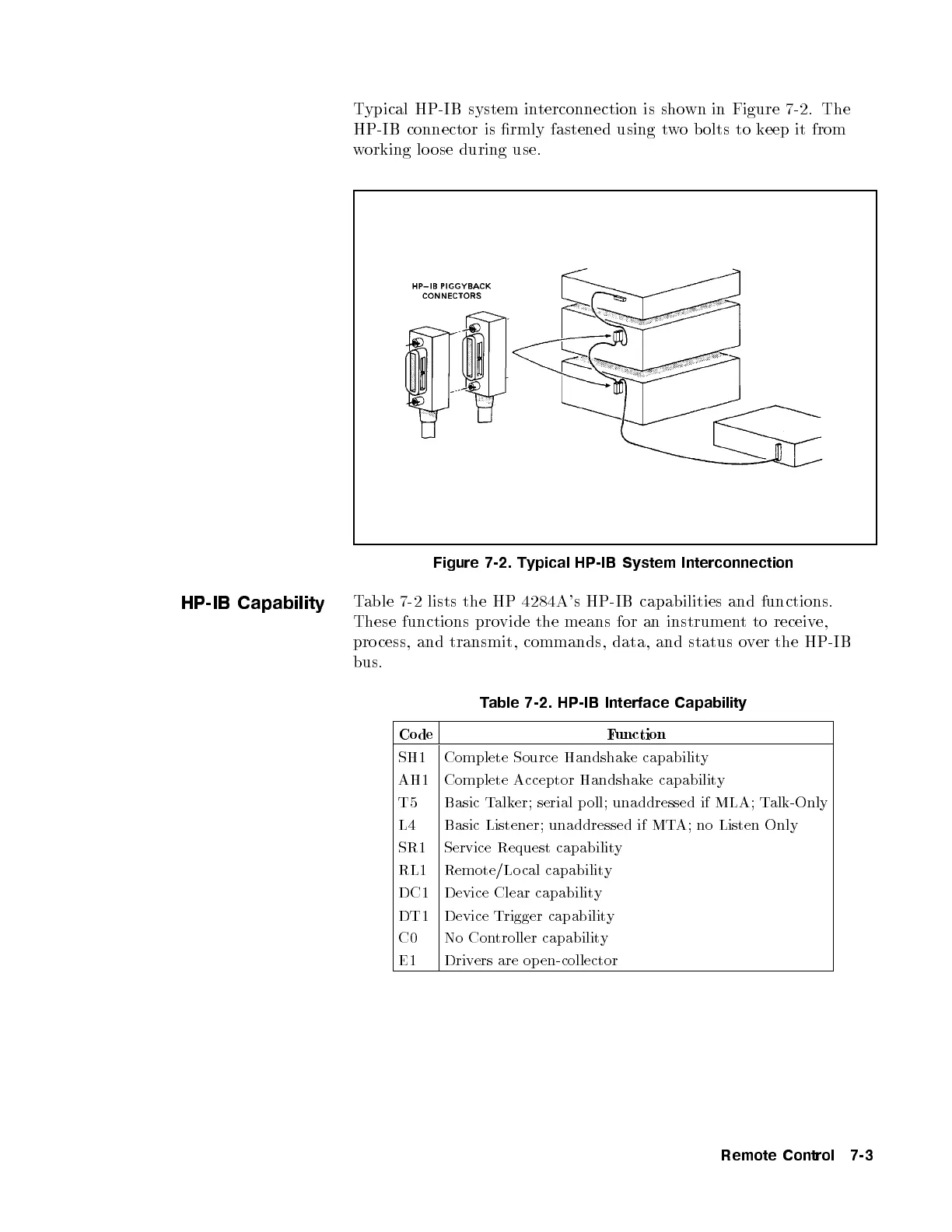

Typical HP-IB system interconnection is shown in Figure 7-2. The
HP-IB connector is rmly fastened using two b olts to keep it from
working lo ose during use.
Figure 7-2. Typical HP-IB System Interconnection
HP-IB Capability
Table 7-2 lists the HP 4284A's HP-IB capabilities and functions.
These functions provide the means for an instrument to receive,
pro cess, and transmit, commands, data, and status o
ver the HP-IB
bus.
Table 7-2. HP-IB Interface Capability
Co de Function
SH1 Complete Source Handshake capability
AH1 Complete Acceptor Handshake capability
T5 Basic Talker; serial p oll; unaddressed if MLA; Talk-Only
L4 Basic Listener; unaddressed if MTA; no Listen Only
SR1 Service Request capability
RL1 Remote/Local capability
DC1 Device Clear capability
DT1 Device Trigger capability
C0 No Controller capability
E1 Drivers are op en-collector
Remote Control 7-3
