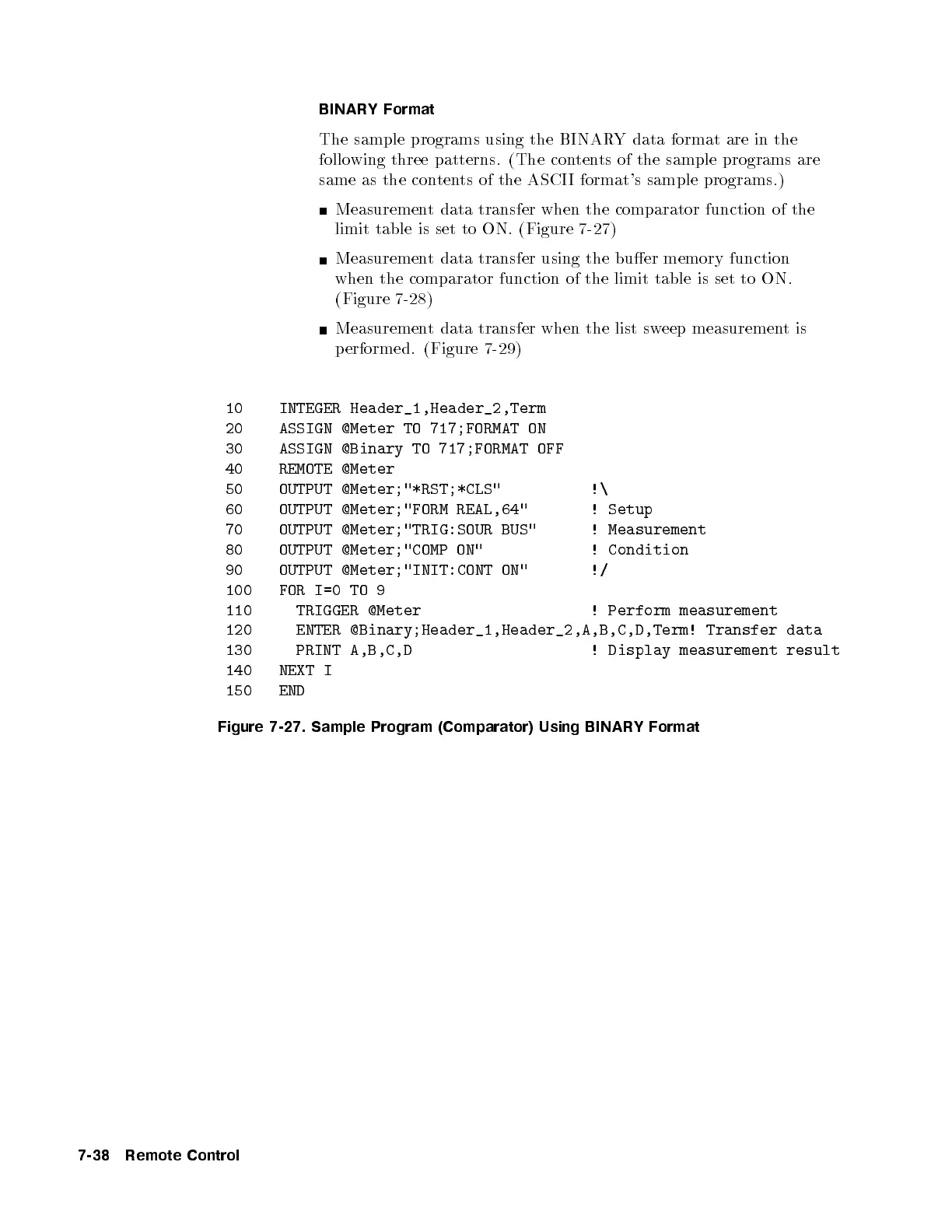

BINARY Format
The sample programs using the BINARY data format are in the
following three patterns. (The contents of the sample programs are
same as the contents of the ASCII format's sample programs.)
Measurement data transfer when the comparator function of the
limit table is set to ON. (Figure 7-27)
Measurement data transfer using the buer memory function
when the comparator function of the limit table is set to ON.
(Figure 7-28)
Measurement data transfer when the list sweep measurementis
performed. ( Figure 7-29)
10 INTEGER Header_1,Header_2,Term
20 ASSIGN @Meter TO 717;FORMAT ON
30 ASSIGN @Binary TO 717;FORMAT OFF
40 REMOTE @Meter
50 OUTPUT @Meter;"*RST;*CLS" !\
60 OUTPUT @Meter;"FORM REAL,64" ! Setup
70 OUTPUT @Meter;"TRIG:SOUR BUS" ! Measurement
80 OUTPUT @Meter;"COMP ON" ! Condition
90 OUTPUT @Meter;"INIT:CONT ON" !/
100 FOR I=0 TO 9
110 TRIGGER @Meter ! Perform measurement
120 ENTER @Binary;Header_1,Header_2,A,B,C,D,Term! Transfer data
130 PRINT A,B,C,D ! Display measurement result
140 NEXT I
150 END
Figure 7-27. Sample Program (Comparator) Using BINARY Format
7-38 Remote Control
