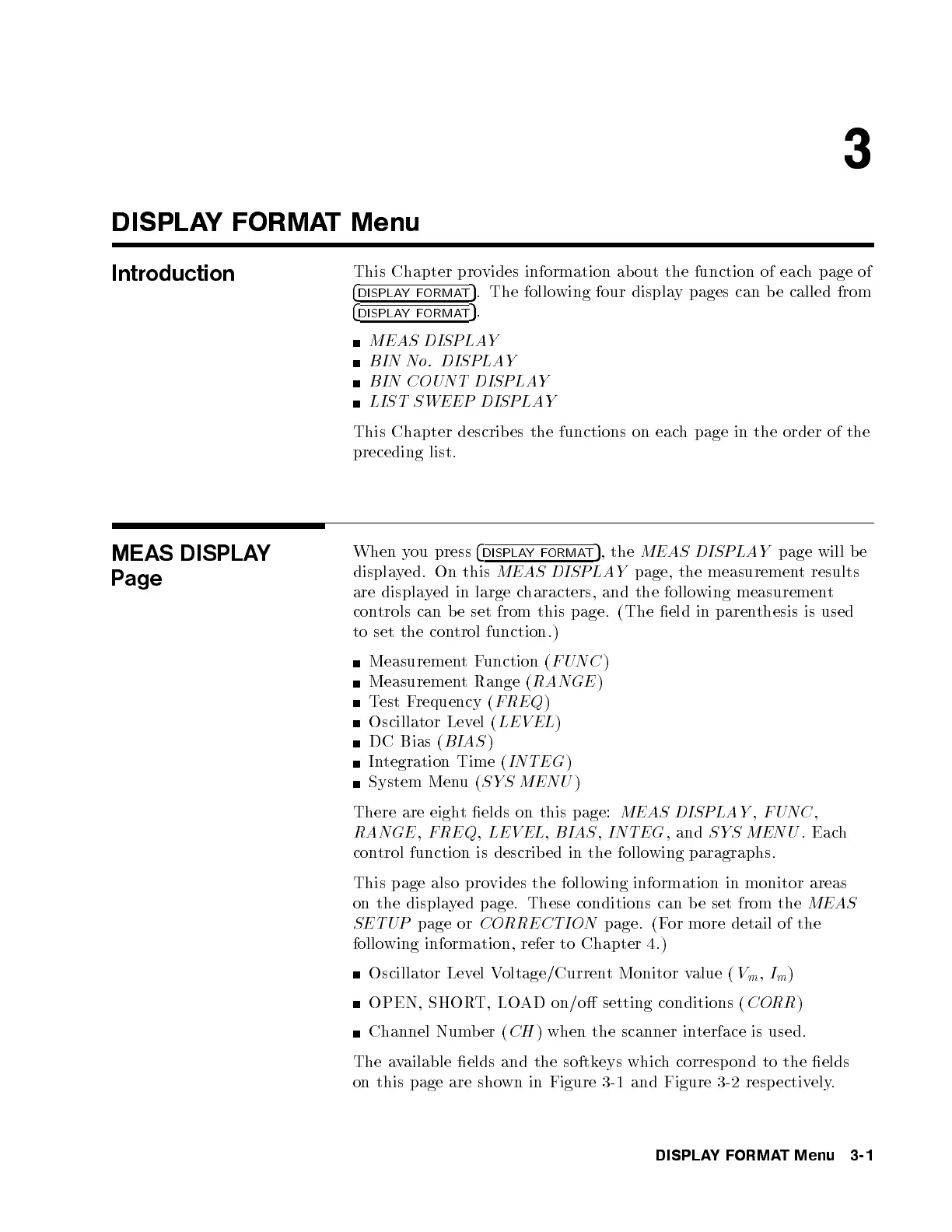

3
DISPLAYFORMAT Menu
Introduction
This Chapter provides information ab out the function of each page of
4
DISPLAYFORMAT
5
. The following four display pages can be called from
4
DISPLAYFORMAT
5
.
MEAS DISPLAY
BIN No. DISPLAY
BIN COUNT DISPLAY
LIST SWEEP DISPLAY
This Chapter describ es the functions on each page in the order of the
preceding list.
MEAS DISPLAY
Page
When you press
4
DISPLAYFORMAT
5
, the
MEAS DISPLAY
page will be
displayed. On this
MEAS DISPLAY
page, the measurement results
are displayed in large characters, and the following measurement
controls can be set from this page. (The eld in paren
thesis is used
to set the control function.)
MeasurementFunction (
FUNC
)
Measurement Range (
RANGE
)
Test Frequency (
FREQ
)
Oscillator Level (
LEVEL
)
DC Bias (
BIAS
)
Integration Time (
INTEG
)
System Menu(
SYS MENU
)
There are eight elds on this page:
MEAS DISPLAY
,
FUNC
,
RANGE
,
FREQ
,
LEVEL
,
BIAS
,
INTEG
, and
SYS MENU
. Each
control function is described in the following paragraphs.
This page also provides the following information in monitor areas
on the displayed page. These conditions can b e set from the
MEAS
SETUP
page or
CORRECTION
page. (For more detail of the
following information, refer to Chapter 4.)
Oscillator Level Voltage/Current Monitor value (
V
m
,
I
m
)
OPEN, SHORT, LOAD on/o setting conditions (
CORR
)
Channel Number (
CH
) when the scanner interface is used.
The available elds and the softkeys which corresp ond to the elds
on this page are shown in Figure 3-1 and Figure 3-2 resp ectiv
ely.
DISPLAYFORMAT Menu 3-1
