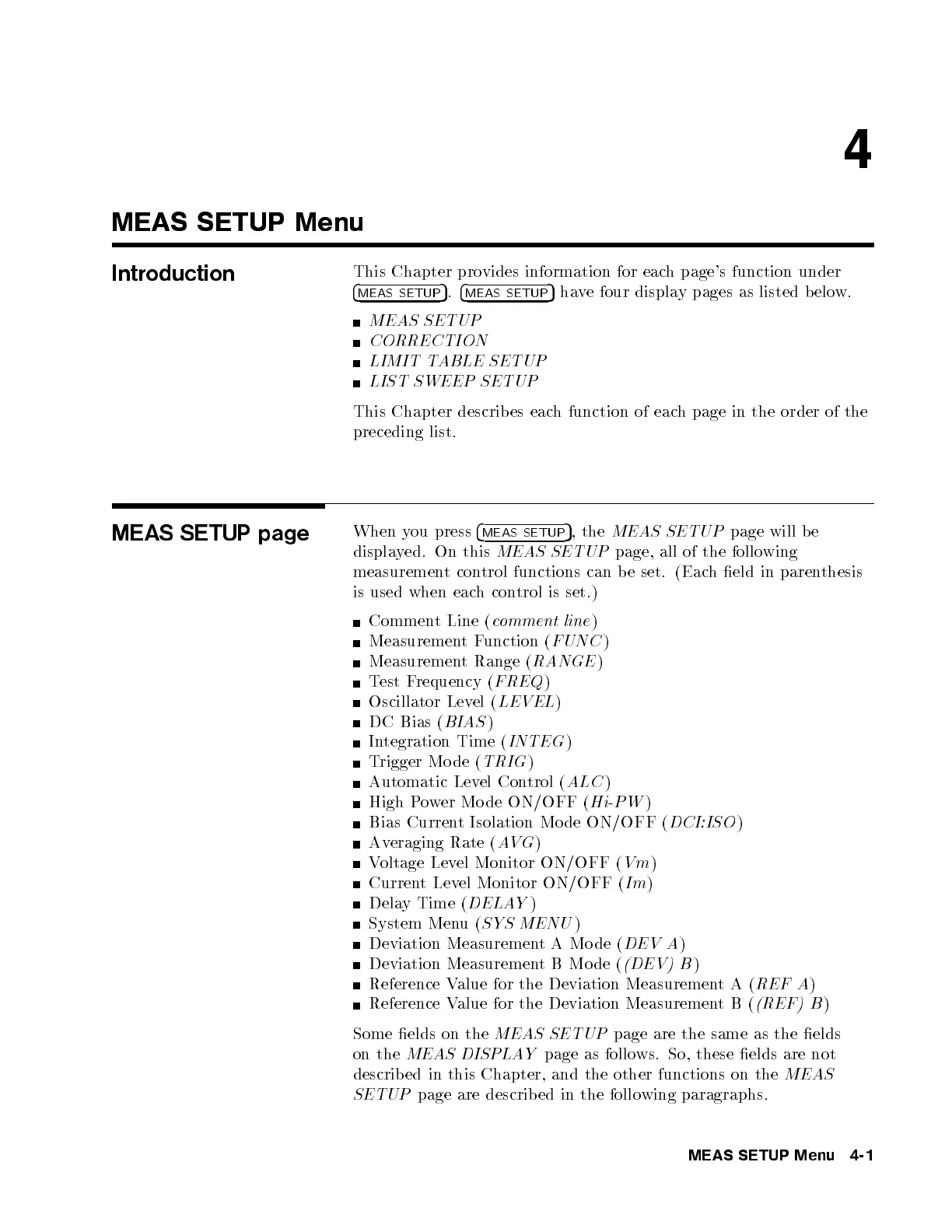

MEAS SETUP Menu
Introduction
This Chapter provides information for each page's function under
4
MEAS SETUP
5
.
4
MEAS SETUP
5
have four display pages as listed below.
MEAS SETUP
CORRECTION
LIMIT TABLE SETUP
LIST SWEEP SETUP
This Chapter describ es each function of each page in the order of the
preceding list.
MEAS SETUP page
When you press
4
MEAS SETUP
5
, the
MEAS SETUP
page will be
displayed. On this
MEAS SETUP
page, all of the following
measurement control functions can be set. (Each eld in parenthesis
is used when each control is set.)
Comment Line (
comment line
)
MeasurementFunction (
FUNC
)
Measurement Range (
RANGE
)
Test Frequency (
FREQ
)
Oscillator Level (
LEVEL
)
DC Bias (
BIAS
)
Integration Time (
INTEG
)
Trigger Mo de (
TRIG
)
Automatic Level Control (
ALC
)
High Power Mo de ON/OFF (
Hi-PW
)
Bias Current Isolation Mo de ON/OFF (
DCI:ISO
)
Averaging Rate (
AVG
)
Voltage Level Monitor ON/OFF (
Vm
)
Current Level Monitor ON/OFF (
Im
)
Delay Time (
DELAY
)
System Menu(
SYS MENU
)
Deviation Measurement A Mo de (
DEV A
)
Deviation Measurement B Mo de (
(DEV) B
)
Reference Value for the Deviation MeasurementA(
REF A
)
Reference Value for the Deviation MeasurementB(
(REF) B
)
Some elds on the
MEAS SETUP
page are the same as the elds
on the
MEAS DISPLAY
page as follows. So, these elds are not
described in this Chapter, and the other functions on the
MEAS
SETUP
page are described in the follo wing paragraphs.
MEAS SETUP Menu 4-1
