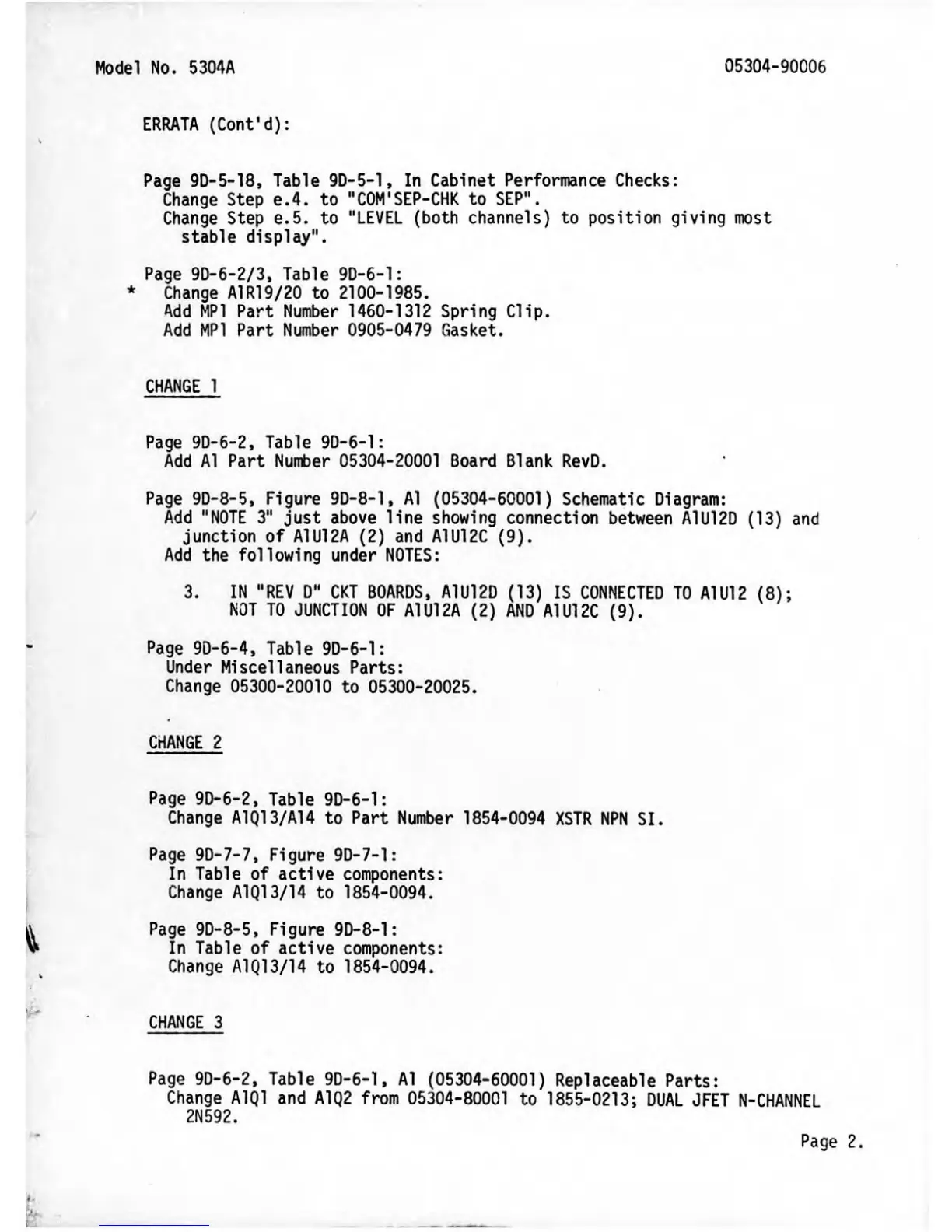

Model
No.
5304A
05304-90006
ERRATA (Cont'd):
Page 9D-5-18, Table 9D-5-1,
In
Cabinet Performance Checks:
Change Step
e.4. to
"COM'SEP-CHK
to SEP".
Change Step
e.5. to
"LEVEL (both channels)
to
position giving most
stable display".
Page 9D-6-2/3, Table 9D-6-1:
*
Change A1R19/20
to
2100-1985.
Add MP 1
Part Number 1460-1312 Spring Clip.
Add MP1
Part Number 0905-0479 Gasket.
CHANGE
1
Page 9D-6-2, Table 9D-6-1:
Add A1
Part Number 05304-20001 Board Blank RevD.
Page 9D-8-5, Figure 9D-8-1,
A1
(05304-60001) Schematic Diagram:
Add
"NOTE
3"
just above line showing connection between A1U12D
(13) and
junction
of
A1U12A
(2) and
A1U12C
(9).
Add the
following under NOTES:
3. IN "REV D" CKT
BOARDS, A1U12D
(13) IS
CONNECTED
TO A1U12 (8);
NOT TO
JUNCTION
OF
A1U12A
(2) AND
A1U12C
(9).
Page 9D-6-4, Table 9D-6-1:
Under Miscellaneous Parts:
Change 05300-20010
to
05300-20025.
CHANGE
2
Page 9D-6-2, Table 9D-6-1:
Change A1Q13/A14
to
Part Number 1854-0094 XSTR
NPN SI.
Page 9D-7-7, Figure 9D-7-1:
In
Table
of
active components:
Change A1Q13/14
to
1854-0094.
Page 9D-8-5, Figure 9D-8-1:
In
Table
of
active components:
Change A1Q13/14
to
1854-0094.
CHANGE
3
Page 9D-6-2, Table 9D-6-1,
A1
(05304-60001) Replaceable Parts:
Change
A1Q1 and A1Q2
from 05304-80001
to
1855-0213; DUAL JFET N-CHANNEL
2N592.
