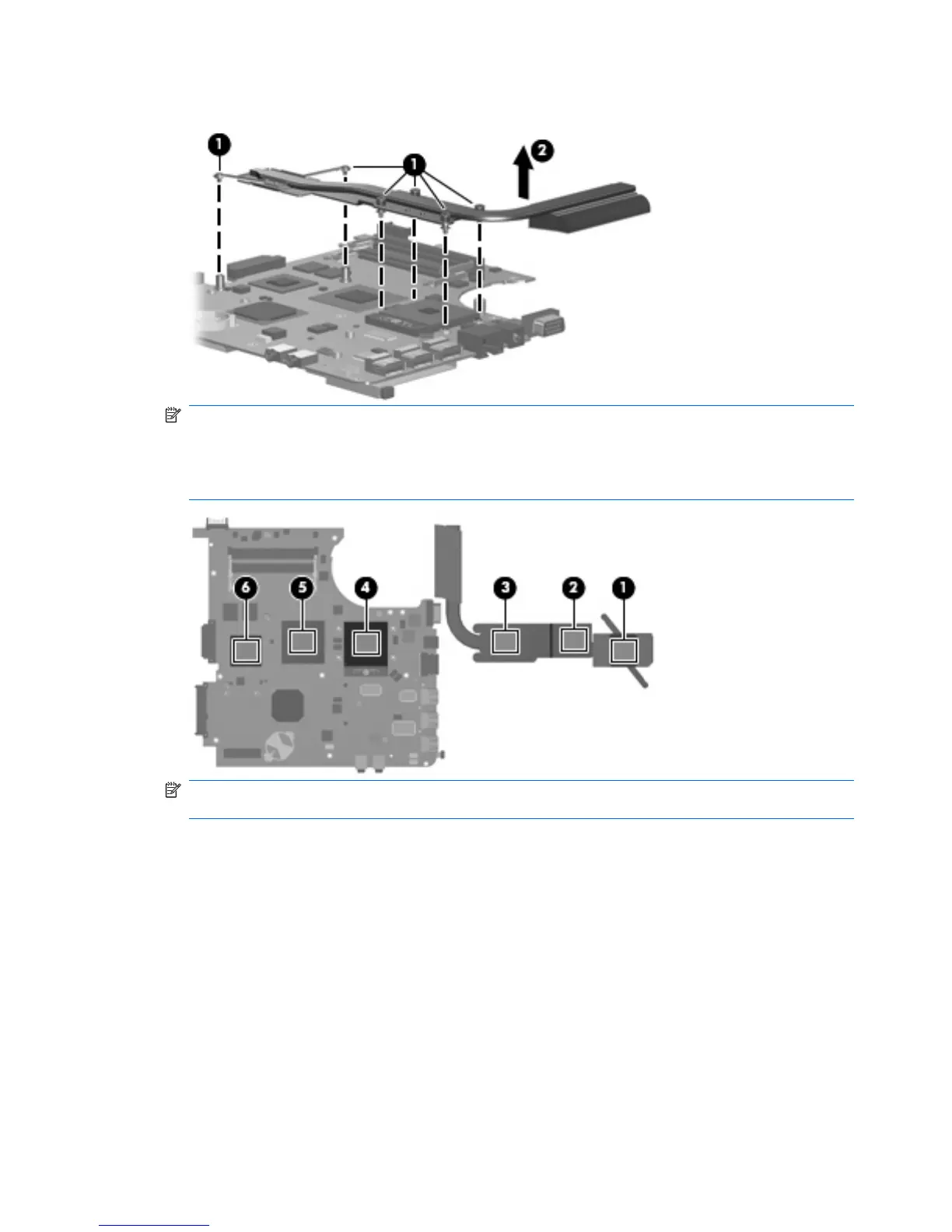

3. Remove the heat sink (2).

NOTE: The thermal material must be thoroughly cleaned from the surfaces of the heat sink

(1), (2), and (3), and the system board components (4), (5), and (6) each time the heat sink is

removed. Thermal pads and thermal paste must be installed on all surfaces before the heat sink

assembly is reinstalled. Replacement thermal material is included with all heat sink, system board,

and processor spare part kits.

NOTE: Steps 4 and 5 apply only to computer models equipped with graphics subsystems with

UMA memory.

4. Following the 1, 2, 3, 4, sequence stamped into the heat sink, loosen the four Phillips PM2.5×10.0

screws (1) that secure the heat sink to the system board.

72 Chapter 4 Removal and replacement procedures
