HP 6720s - Page 63

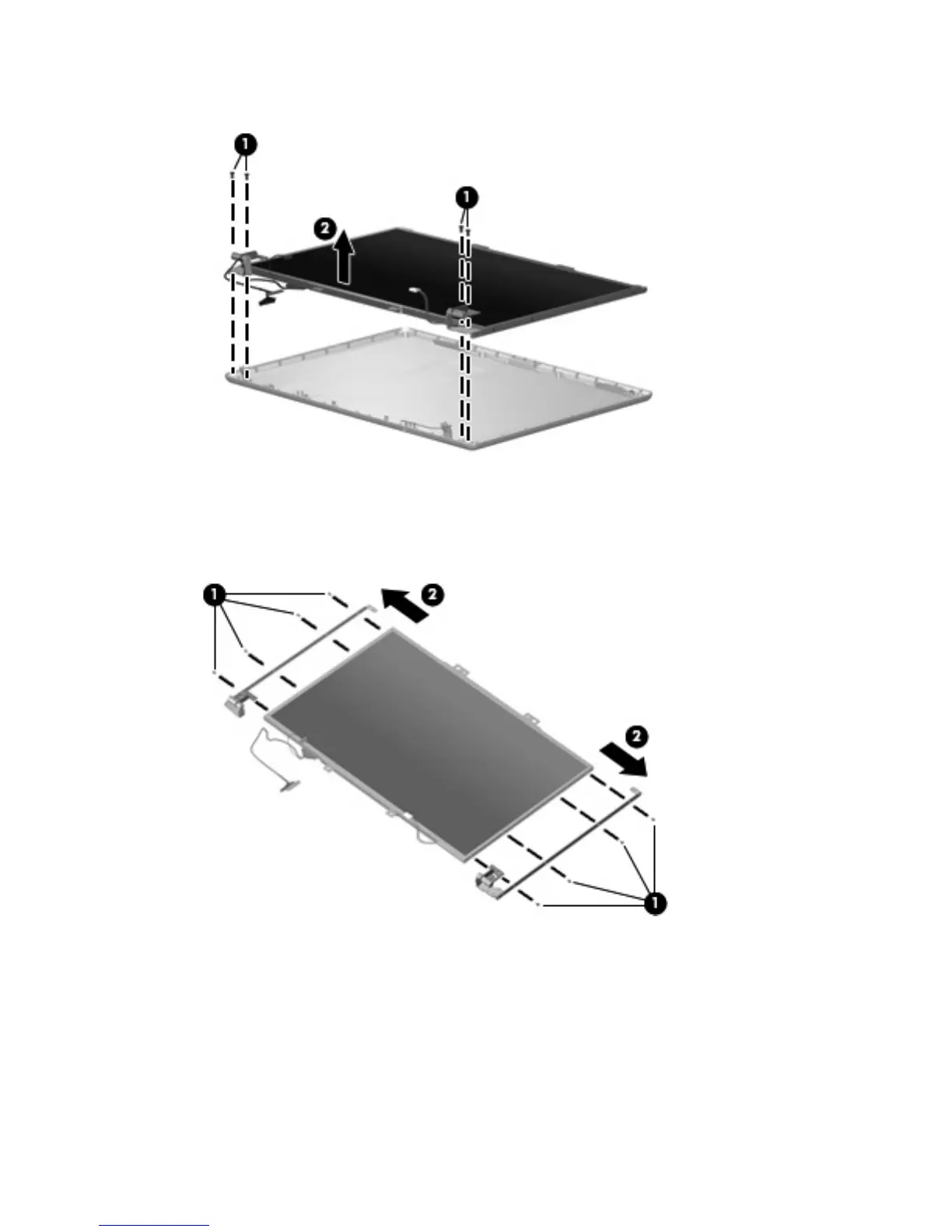

12. Remove the display panel (2).
13. Remove the four Phillips PM2.0×4.0 screws (1) that secure each display hinge to the display
panel.
14. Remove the display hinges (2). The left and right display hinges are available using spare part
number 456806-001.
Reverse this procedure to reassemble and install the display assembly.
Component replacement procedures 55
