HP 8341b Operating Instructions

HP 841OC INTERFACE CONNECTOR J18
J18
Pin
Mnemonic
Levels
Input/Output
Signal
Source/
Destination
A62J31 Pin
J18W46
Wire
Color Code
1
2 Z-AXIS BLAND
+ 5V, — 5 V*
OUTPUT
A57P1-99
2, 16
2
3
4
LALTSEL
TTL (LOW TRUE)
OUTPUT
A57P1-59
10,24
0
5
LSSP
(LSTOP SWEEP)
TTL (LOW TRUE)
I/O
A57P1-107 5, 19
5
6
+ 5.2V
A52P1-17, 18, 41,42
3
3
7
8
9
MUTE
TTL (LOW TRUE)
INPUT
A57P1-61
8, 22
4
10 EXT TRIG
EXT SOURCE
INPUT LEVEL
INPUT
A57P1-106
4, 18
6
11
PEN LIFT
SEE TEXT
OUTPUT
A57P1-108
6, 20
8
12
13
14
NEG BLANK
0 V, — 5 V*
OUTPUT
A57P1-41
1, 15
1
15
16
LRETRACE
TTL (LOW TRUE)
OUTPUT
A57P1-58
11,25
9-0
17 LALTEN
TTL (LOW TRUE)
OUTPUT
A57P1-60
9, 23
9
18
19
GND
STOP SWEEP
BNC GND LUG
9-0-7
20
21
22 LSTEPUP
TTL (LOW TRUE)
INPUT
A62J1-28
14
9-0-8
23
24 8410 TRIG
TTL (LOW TRUE)
OUTPUT
A57P1-62
7
7
25

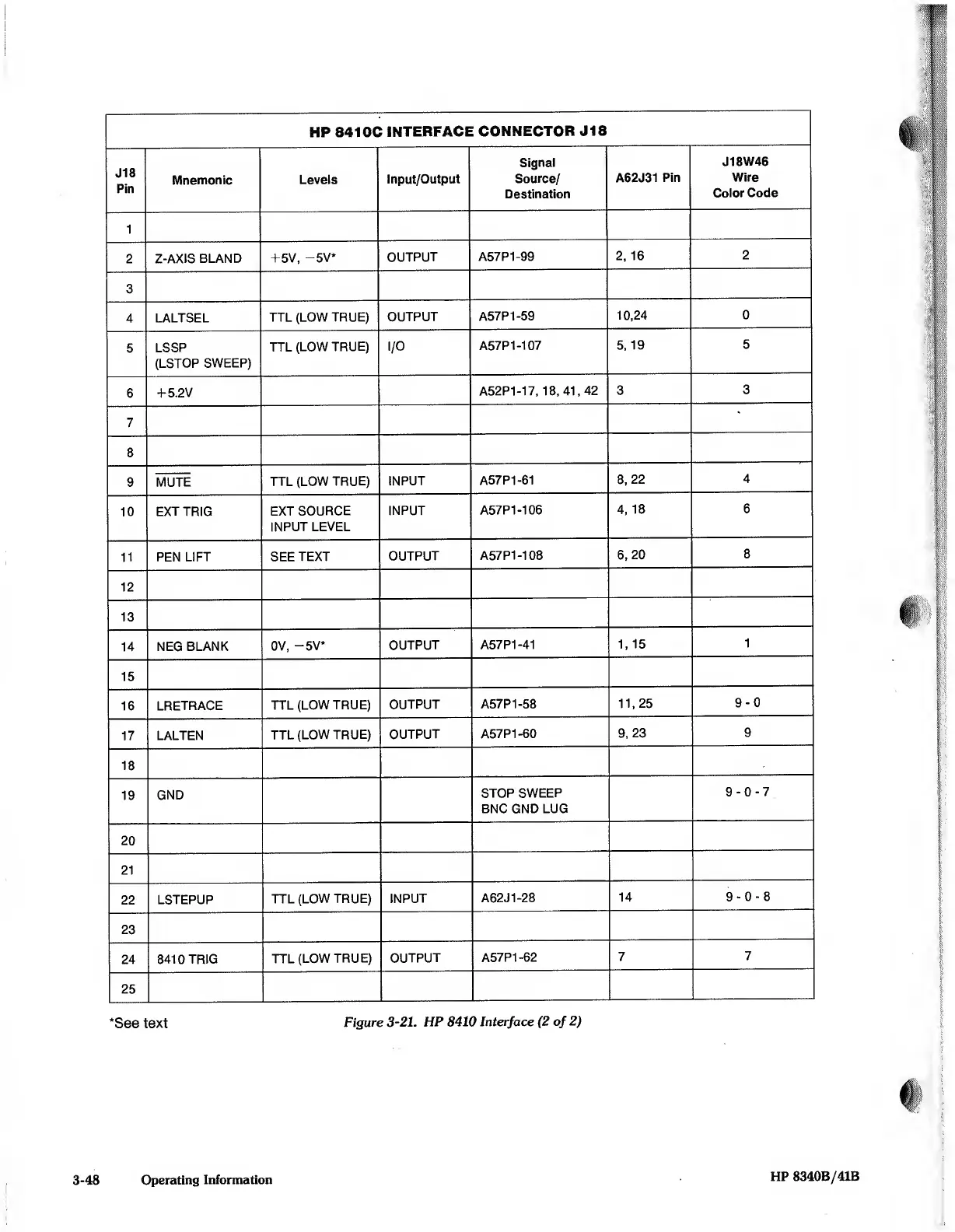

‘See text Figure 3-21. HP 8410 Interface (2 of 2)
3-48
Operating Information
HP 8340B/41B
