HP 8341b - Page 501

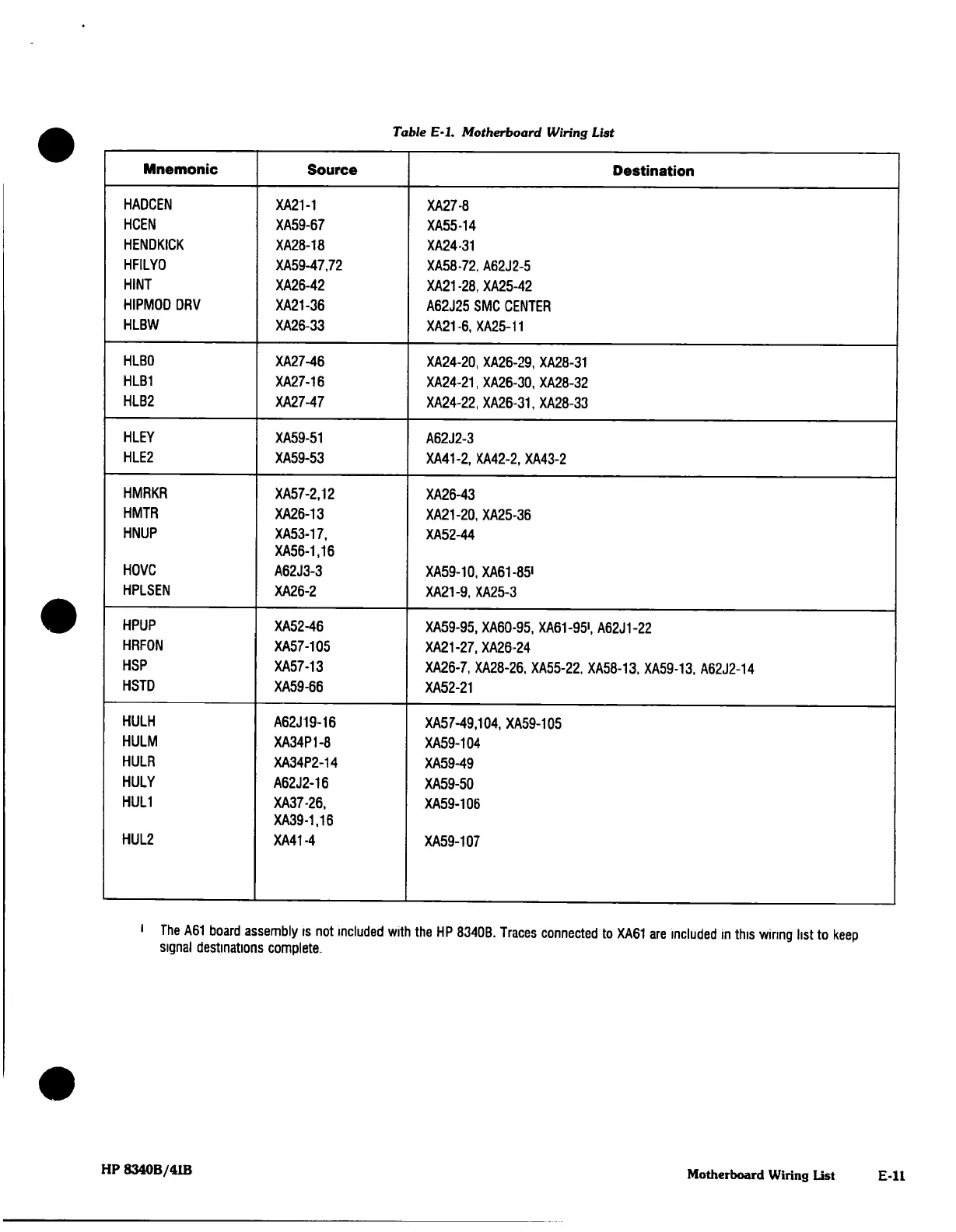

Table
E-l.
Motherboard
Wiring
List
Mnemonic
HADCEN
HCEN
HENDKICK
HFILYO
HINT
HIPMOD
DRV
HLBW
HLBO
HLB1
HLB2
HLEY
HLE2
HMRKR
HMTR
HNUP
HOVC
HPLSEN
HPUP
HRFON
HSP
HSTD
HULH
HULM
HULR
HULY
HUL1
HUL2
Source
XA21-1
XA59-67
XA28-18
XA59-47.72
XA26-42
XA21-36
XA26-33
XA27-46
XA27-16
XA27-47
XA59-51
XA59-53
XA57-2.12
XA26-13
XA53-17,
XA56-1.16
A62J3-3
XA26-2
XA52-46
XA57-105
XA57-13
XA59-66
A62J19-16
XA34P1-8
XA34P2-14
A62J2-16
XA37-26,
XA39-1.16
XA41-4
Destination
XA27-8
XA55-14
XA24-31
XA58-72,
A62J2-5
XA21-28.XA25-42
A62J25 SMC
CENTER
XA21-6,XA25-11
XA24-20, XA26-29,
XA28-31
XA24-21, XA26-30,
XA28-32
XA24-22,XA26-31,XA28-33
A62J2-3
XA41-2, XA42-2,
XA43-2
XA26-43
XA21-20,
XA25-36
XA52-44
XA59-10,XA61-85«
XA21-9,
XA25-3
XA59-95, XA60-95, XA61-95',
A62J1-22
XA21-27,
XA26-24
XA26-7,
XA28-26, XA55-22, XA58-13, XA59-13,
A62J2-14
XA52-21
XA5
7-49,104, XA59-105
XA59-104
XA59-49
XA59-50
XA59-106
XA59-107
The
A61
board
assembly
is
not
included
with the
HP
8340B.
Traces connected
to
XA61
are
Included
In this
wiring list
to
keep
signal
destinations
complete.
HP 8340B/41B
Motherboard
Wiring
List
E-ll
