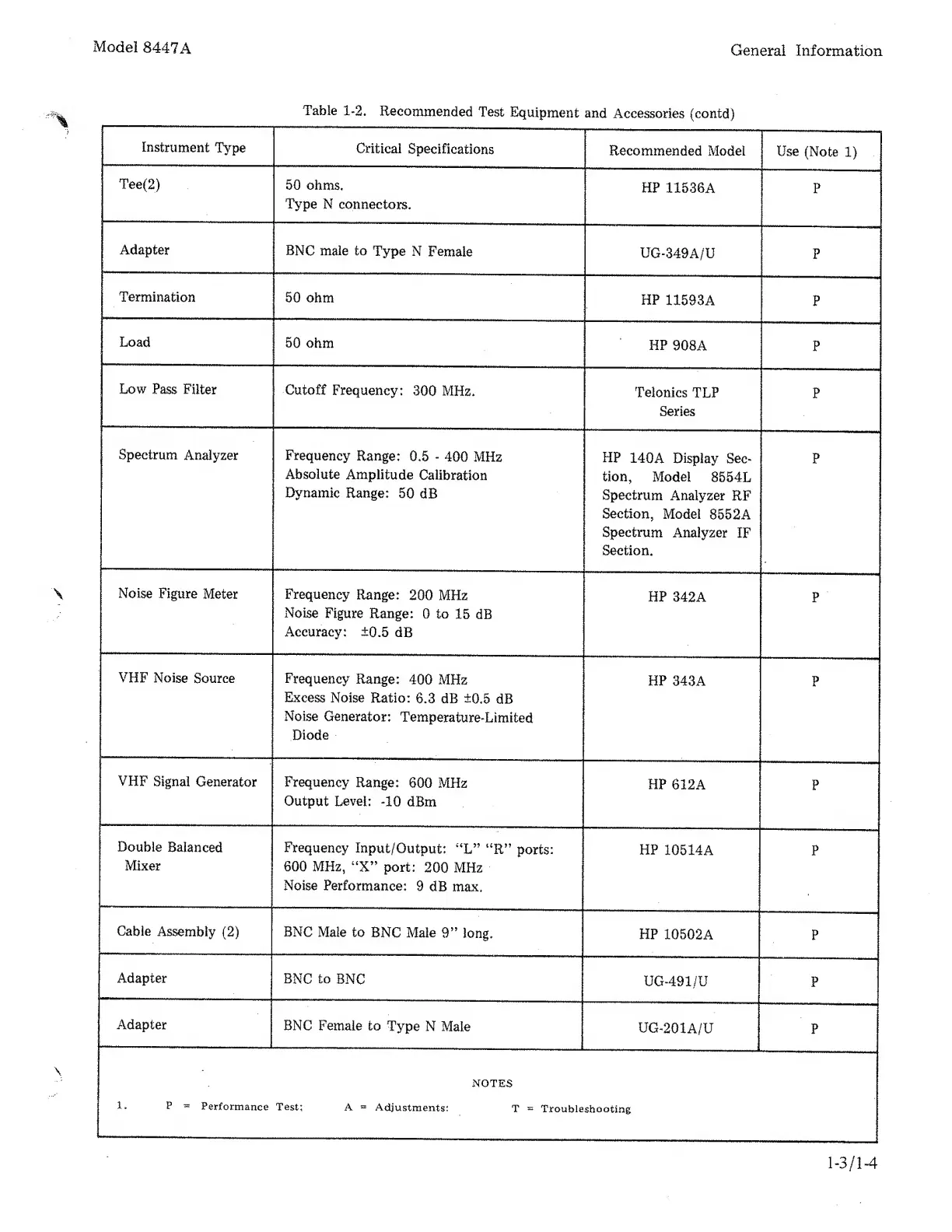

Table 1-2. Recommended Test Equipment and Accessories (contd)
Instrument Type
Critical Specifications
Recommended Model
Use (Note 1)
Tee(2)
50 ohms.
Type N connectors.
HP 11536A
P
Adapter
BNC male to Type N Female
UG-349A/U
P
Termination
50 ohm
HP 11593A
P
Load
50 ohm
HP 908A
P
Low Pass Filter
Cutoff Frequency: 300 MHz.
Telonics TLP
Series
P
Spectrum Analyzer
Frequency Range: 0.5 - 400 MHz
Absolute Amplitude Calibration
Dynamic Range: 50 dB
HP 140A Display Sec¬
tion, Model 8554L
Spectrum Analyzer RF
Section, Mode! 8552A
Spectrum Analyzer IF
Section.
P
Noise Figure Meter
Frequency Range: 200 MHz
Noise Figure Range: 0 to 15 dB
Accuracy: ±0.5 dB
HP 342A
P
VHF Noise Source
Frequency Range: 400 MHz
Excess Noise Ratio: 6.3 dB ±0.5 dB
Noise Generator: Temperature-Limited
Diode
HP 343A
P
VHP Signal Generator
Frequency Range: 600 MHz
Output Level: 40 dBm
HP 612A
P
Double Balanced
Mixer
Frequency Input/Output: “L” “R” ports:
600 MHz, “X” port: 200 MHz ;
Noise Performance: 9 dB max.
HP 10514A
P
Cable Assembly (2)
BNC Male to BNC Male 9” long.
HP 10502A
P
Adapter
BNC to BNC
UG-491/U
P
Adapter
BNC Female to Type N Male
UG-201A/U
P
NOTES
** P * Performance Test; A - Adjustments: T = Troubleshooting
