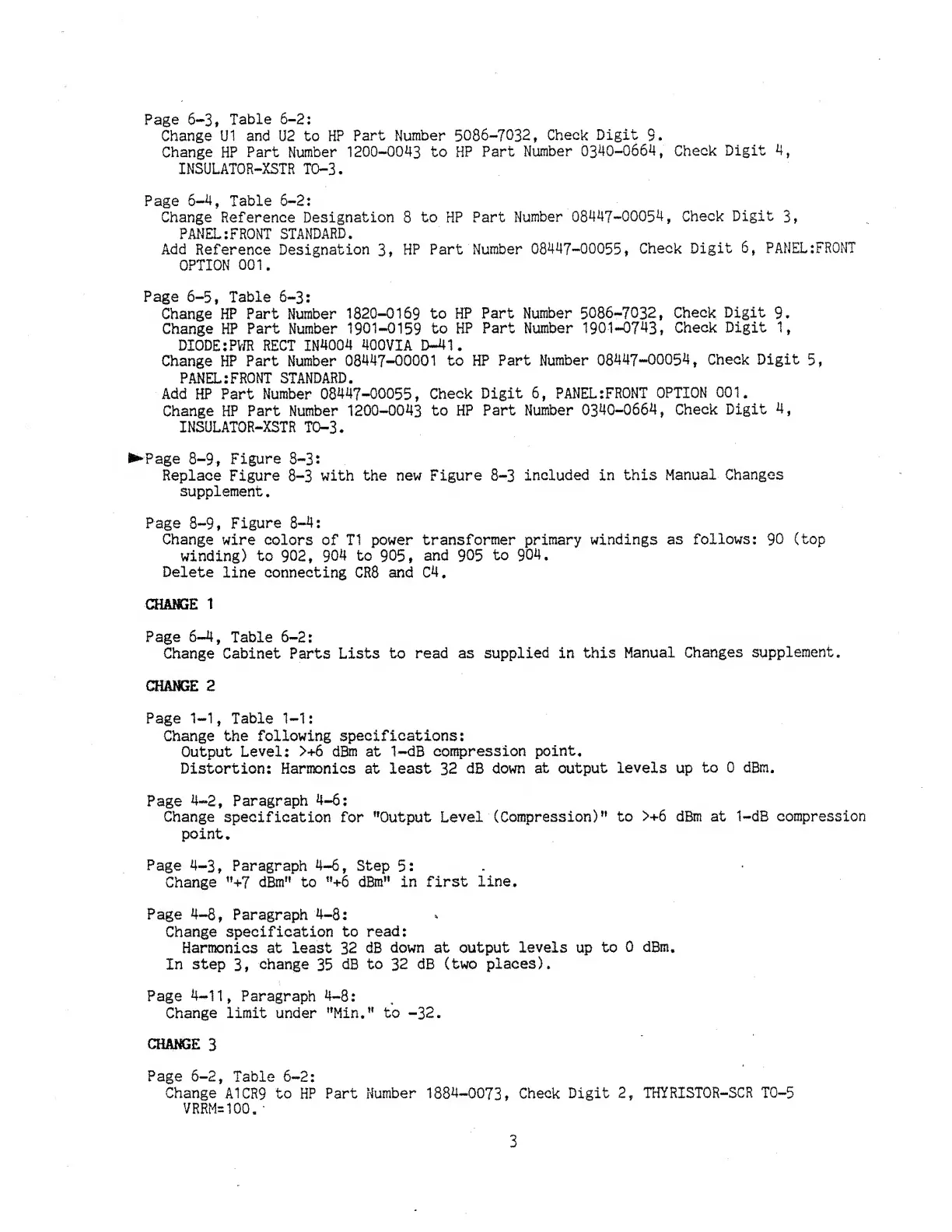

Page 6-3, Table 6-2:
Change U1 and U2 to HP Part Number 5086-7032, Check Digit 5.
Change HP Part Number 1200-0043 to HP Part Number 0340-0664, Check Digit 4,
INSULATOR-XSTR T0-3.
Page 6-4, Table 6-2:
Change Reference Designation 8 to HP Part Number 08447-00054, Check Digit 3,
PANEL:FRONT STANDARD*
Add Reference Designation 3, HP Part Number 08447-00055, Check Digit 6, PANEL : F R0NT
OPTION 001.
Page 6—5, Table 6—3:
Change HP Part Number 1820-0169 to HP Part Number 5086-7032, Check Digit 9.
Change HP Part Number 1901-0159 to HP Part Number 1901-0743, Check Digit 1,
DIODE:PWR RECT IN4004 400VIA D-41.
Change HP Part Number 08447-00001 to HP Part Number 08447-00054, Check Digit 5,
PANEL:FRONT STANDARD.
Add HP Part Number 08447-00055, Check Digit 6, PANEL:FR0NT OPTION 001.
Change HP Part Number 1200-0043 to HP Part Number 0340-0664, Check Digit 4,
INSULATOR-XSTR T0-3.
► P a ge 8-9, Figure 8-3:
Replace Figure 8-3 with the new Figure 8-3 included in this Manual Changes
supplement.
Page 8-9, Figure 8-4:
Change wire colors of T1 power transformer primary windings as follows: 90 (top
winding) to 902, 904 to 905, and 905 to 904.
Delete line connecting CR8 and C4.
CHANGE 1
Page 6-4, Table 6-2:
Change Cabinet Parts Lists to read as supplied in this Manual Changes supplement.
CHANGE 2
Page 1-1, Table 1-1:
Change the following specifications:
Output Level: >+6 dBm at 1-dB compression point.
Distortion: Harmonics at least 32 dB down at output levels up to 0 dBm.
Page 4-2, Paragraph 4-6:
Change specification for "Output Level (Compression)" to >+6 dBm at 1-dB compression
point.
Page 4-3, Paragraph 4-6, Step 5:
Change "+7 dBm" to "+6 dBm" in first line.
Page 4-8, Paragraph 4-8:
Change specification to read:
Harmonics at least 32 dB down at output levels up to 0 dBm.
In step 3, change 35 dB to 32 dB (two places).
Page 4-11, Paragraph 4-8:
Change limit under "Min." to -32.
CHANGE 3
Page 6—2, Table 6—2:
Change*A1CR9 to HP Part Number 1884-0073, Check Digit 2, THYRIST0R-SCR T0-5
VRRM=100.'
