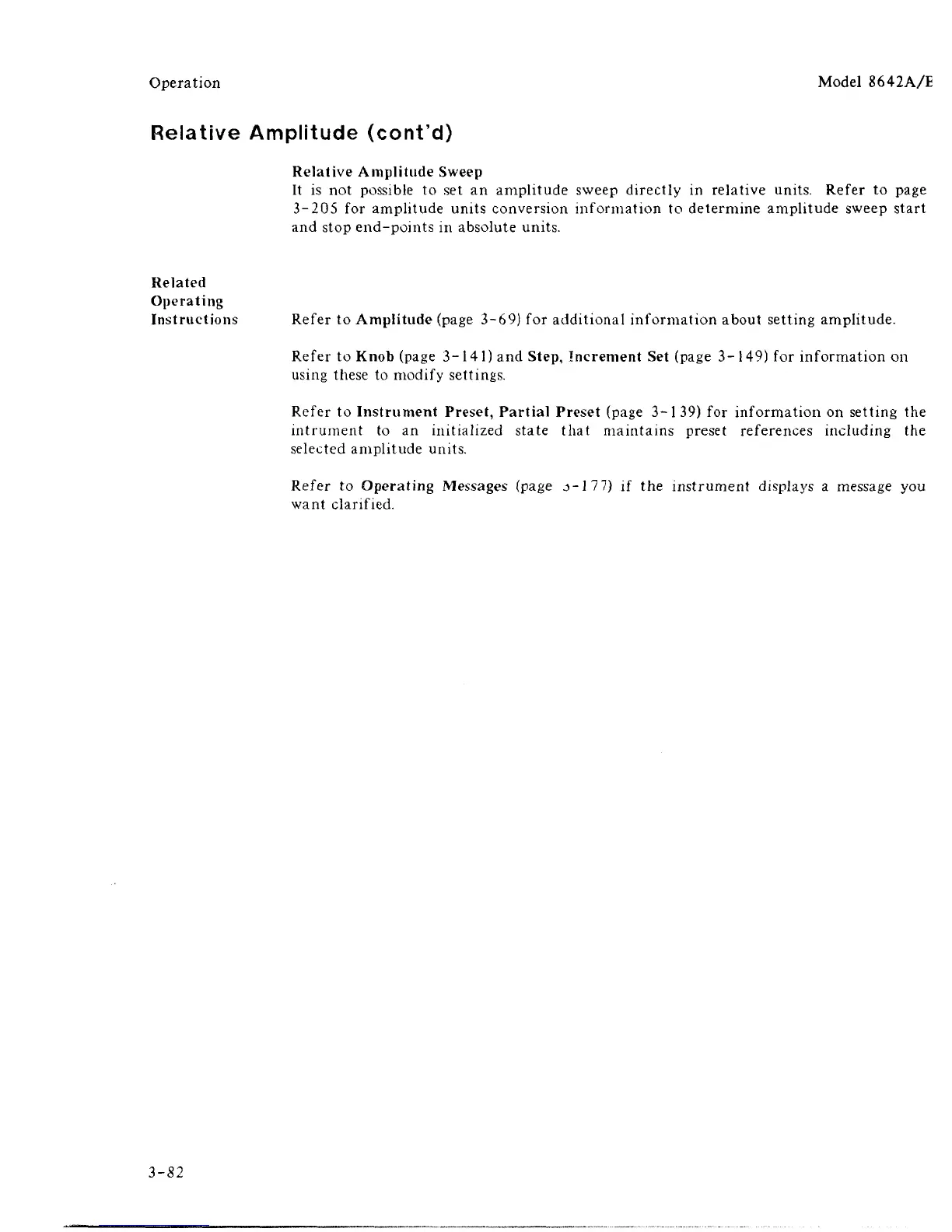

Operation
Model 8642A/E
Relative Amplitude (cont'd)
Relative Amplitude Sweep
It is not possible to set an amplitude sweep directly in relative units. Refer to page
3-205 for amplitude units conversion information to determine amplitude sweep start
and stop end-points in absolute units.
Related
Operating
Instructions Refer to Amplitude (page 3-69) for additional information about setting amplitude.
Refer to Knob (page 3-141) and Step, Increment Set (page 3-149) for information on
using these to modify settings.
Refer to Instrument Preset, Partial Preset (page 3-1 39) for information on setting the
intrument to an initialized state that maintains preset references including the
selected amplitude units.
Refer to Operating Messages (page j-17
7)
if the instrument displays a message you
want clarified.
3-82
